Removing a Cartridge Manually
Removing the Cartridge
The cartridge can be removed from the drive by lifting up towards the left guide and
back (see Figure D-6).

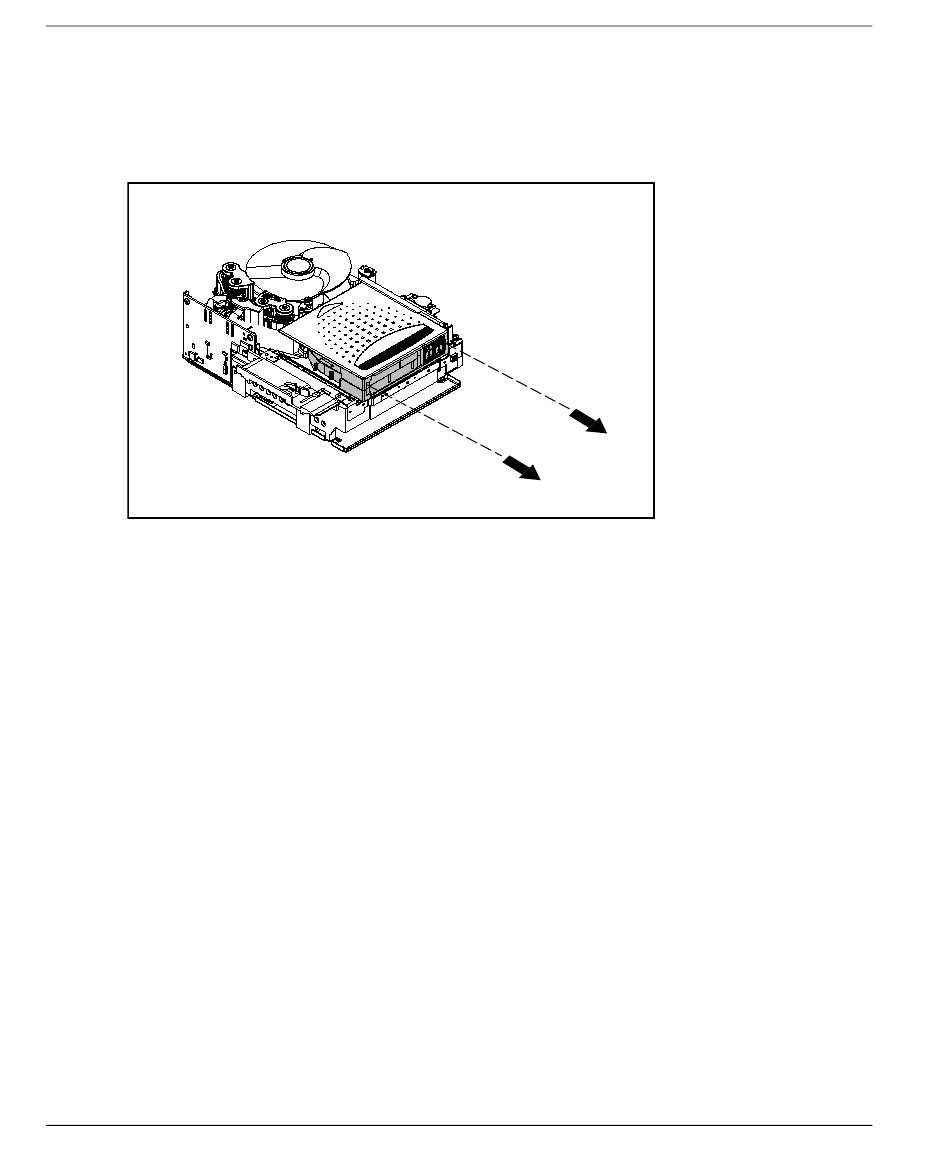

Figure D–6: Removing the cartridge
NOTE: There may be some noise when removing the cartridge due to the drive components
interfaced with cartridge. This is normal and should not cause damage to either the cartridge or
drive.
Assembling the SDLT Drive
When the cartridge is removed from the SDLT drive, assemble the drive in the reverse
order, torquing the screws to 5 in-lbs.
NOTE: Document the original defect symptoms and be sure to note that the drive has been
disassembled in the field to recover a tape.
D–8
StorageWorks SDLT Tape Drive by Compaq Reference Guide
