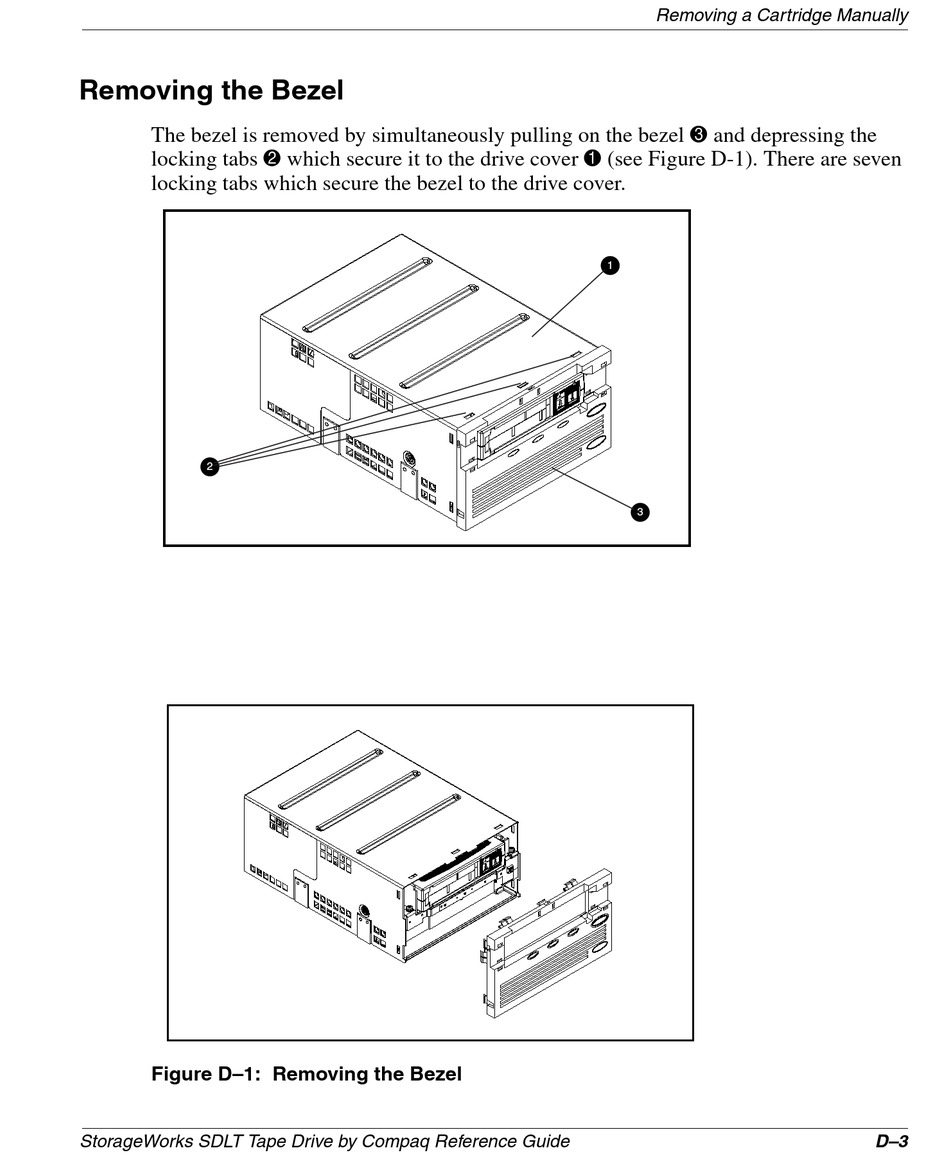

Removing the Bezel
The bezel is removed by simultaneously pulling on the bezel 3 and depressing the
locking tabs 2 which secure it to the drive cover 1 (see Figure D-1). There are seven
locking tabs which secure the bezel to the drive cover.
2
Figure D–1: Removing the Bezel
StorageWorks SDLT Tape Drive by Compaq Reference Guide
Removing a Cartridge Manually
1
3
D–3
