Dormakaba Best SSRLS-3 Installation Instructions Manual

A
18"
15"
C
18"
15"
25-1/2"
B
LH RH
L
M
For Supervised Model (SSRLS)
Q
W
R S
T U
V
BEST ACCESS SYSTEMS
A division of dormakaba Indianapolis, IN – 46250 (855) 365-2407
INS SSRLS_SSRLU-3 v10.2.vsd Created: 5-14-2018 Revi s ed: 5-14-2018
D
E
F
G
H
I
J
N
O
P
For Unsupervised Model (SSRLU)
Y
U-Pin
X
Bridge
Clip
49SLS-109 Strike
(Prt. 10010901)
SSRLS-3 / SSRLU-3
Installation Instructions

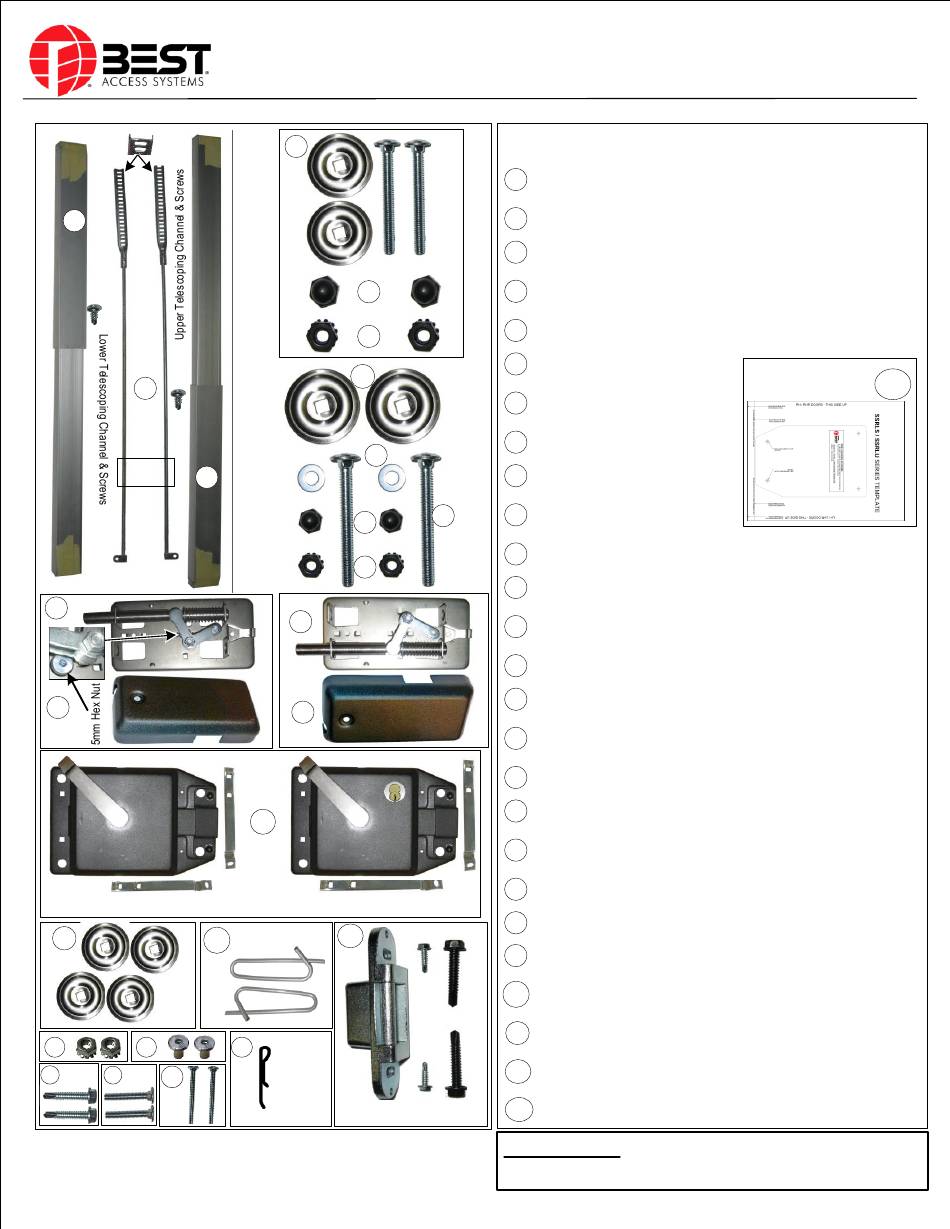

Packing List

QTY. ITEM
1 Top Telescoping Channel w/ self drilling screw
A
1 Bottom Telescoping Channel w/ self drilling screw
B
1 Top and Bottom Rod with connecting arm set – 25-½"
C
2 ¼" - 20 x 2 – ¾" Carriage Bolts w/ stamped washers
D
2 ¼" - 20 Acorn Cap Nuts
E
2 ¼" - 20 K – Lock Nuts
F
2 Stamped Washers
G
2 ¼" Flat Washers
H
2 ¼" - 20 Acorn Cap Nuts
I
2 ¼" - 20 K – Lock Nuts
K J
2 ¼" - 20 x 2 – ½" Carriage Bolts
K
1 Upper Module w/ 5mm Hex Nut
L
1 Special Top Module Cover w/ Plastic cap
M
1 Lower Module w/ 5mm Hex Nut
N
1 Special Lower Module Cover w/ Plastic cap
O
1 Main Lock Body w/ (2) Rod Holders
P
4 Stamped Washers
Q
2 ¼" - 20 K – Lock Nuts
R
2 ¼" - 20 5mm Hex Nuts
S
2 #14 x 1- ½ Hex head washer self drilling screws
T
2 ¼" - 20 x 1 – ¾" Carriage Bolts
U
V
2 ¼" - 20 x 3 – ¼" Carriage Bolts
W 2 U-Pins
2 Bridge Clips
X
1 49SLS-109 Strike- #14 x 1-½" TEK HWH Screws and
Y
#8 x 5/8
1 Cardboard template
Z
IMPORTANT:
Out-swing models require SSRL-SK3 strike kit
REV 11
SSRLS / SSRLU
Cardboard Template
TEK HWH
screws
Page 1
