Summary of Contents for Dormakaba Saffire LX

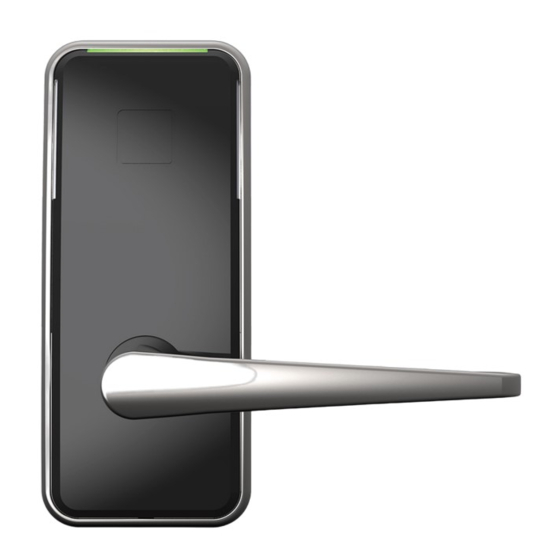

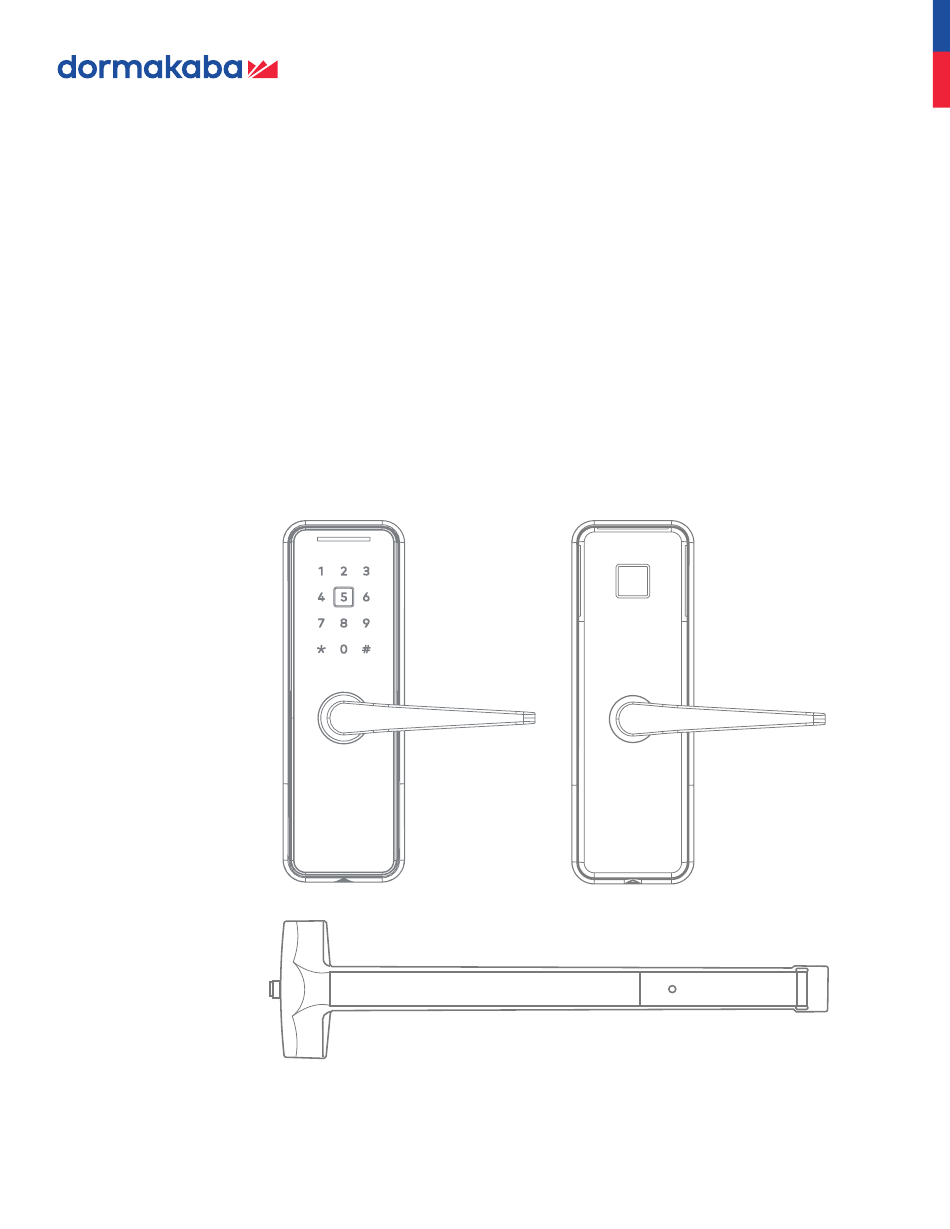

  • Page 1 Saffire LX Saffire EVO Exit device operators Installation Instructions PK3713 - Rev 2 Original document...
  • Page 2 Saffire LX & Saffire EVO LZ Match-up Chart   Saffire LX & Saffire EVO LZ series PK3713 www.dormakaba.com 03/2024...
  • Page 3: Table Of Contents

    5.1. Install Key Cylinder 5.2. Install Mounting Option 5.3. Install the Lock Spindle 5.4. Install the Lock Housing on the Door 5.5. Install Exit Device 5.6. Connect cables & Install Enclosure Saffire LX & Saffire EVO LZ series PK3713 www.dormakaba.com 03/2024...
  • Page 4 Cet équipement est conforme avec ISED RSS-102 des limites d'exposition aux rayonnements définies pour un environnement non contrôlé. Cet émetteur doit être installé à au moins 20 cm de toute personne et ne doit pas être colocalisé ou fonctionner en association avec une autre antenne ou émetteur. Saffire LX & Saffire EVO LZ series PK3713 www.dormakaba.com...
  • Page 5: Introduction And Disclaimers

    Target Audience: These instruc�ons are designed for use by maintenance professionals or lock installers who are familiar with common safety prac�ces and competent to perform the steps described. dormakaba is not responsible for damage or malfunc�on due to incorrect installa�on however arising.
  • Page 6: Components

    Components  Standard mounting  Secondary back plate mounting  Saffire LX & Saffire EVO LZ series PK3713 www.dormakaba.com 03/2024...
  • Page 7 13  810‐516437        1  SCREW 10‐32 x 7/16 ROUND HEAD PHILLIPS NO.2  14  041‐515465        1  KEY CYLINDER ACCESS PLATE  15  810‐509093    2  SCREW 6‐32 x 5/16 FLAT HEAD PHILLIPS NO.2  16  118‐515937‐V    1  BATTERY & ANTENNA ENCLOSURE  17  041‐515972  SECONDARY BACKPLATE       1  18  033‐515996‐2  LOCK GASKET       1    2  19  810‐515193  SCREW 8‐32 x ½ PAN HEAD PHILLIPS  Saffire LX & Saffire EVO LZ series PK3713 www.dormakaba.com 03/2024...
  • Page 8: Installation Steps

    5  Installation Steps  5.1. Install key cylinder (for MKO only)  • Insert the cylinder core in the key override housing.  • Secure the cylinder core (item 13) using screw item 13. • Secure the access plate key cylinder item 14 over the key override housing. • Secure the access plate using two screws item 15.  1  2  3  4  Saffire LX & Saffire EVO LZ series PK3713 www.dormakaba.com 03/2024...
  • Page 9 5.2. Install moun�ng op�on (for secondary backplate moun�ng only) • If supplied with secondary backplate item 17, install gasket item 18 & secure secondary backplate item 17 into place using 3 screw items 9 & 1 screw item 11. Saffire LX & Saffire EVO LZ series PK3713 www.dormakaba.com 03/2024...
  • Page 10: Install The Lock Spindle

    5.3. Install the lock spindle  The spindle must be installed and properly secured in the front lock housing assembly. The spindle is used to connect the handle to operate the  opening and closing door mechanism.  • Insert the spindle item 3/4/5 (depending exit device supplied) smoothly until it clips. Saffire LX & Saffire EVO LZ series PK3713 www.dormakaba.com 03/2024...
  • Page 11: Install The Lock Housing On The Door

    5.4. Install the lock housing on the door  Before starting the installation of the lock on the door, please make sure the door has been prepared properly with proper holes for the lock. Refer  to corresponding drilling template for your lock model. Drilling templates are available in the centerfold included in this installation manual and on  the dormakaba support site (dormakabalodgingsupport.com)  Install the housing on the door and align with the lock mechanism.  • Install the front lock housing with gasket item 19, routing the wire cable(s) by the center hole at the top & in the groove.  • Install the supplied adaptor plate and secure with 3 screw items 7.  OR  • If supplied with secondary backplate item 18, secure the housing into place using 4 binding barrels item 2 with 4 screw items 8. Saffire LX & Saffire EVO LZ series PK3713 www.dormakaba.com 03/2024...
  • Page 12: Install Exit Device

    5.5. Install exit device  • Please refer to exit device manufacturer installation manual. IMPORTANT  For rim and concealed mount exit devices, start with step 5.6  For surface mount exit devices, start with step 5.7  5.6. Connect the cables & install enclosure  • Connect each cable with its matching connector and route the excess of cable back into the hole of the door. • Secure battery enclosure with 2 screw items 19. • Insert the batteries in the battery holder respecting the polarity indicated in the battery holder . • Reinstall cover with setscrew Saffire LX & Saffire EVO LZ series PK3713 www.dormakaba.com 03/2024...
  • Page 13: Connect Cables & Install Enclosure (Svr Only)

    5.7. Connect the cables & install enclosure (SVR ONLY)  IMPORTANT  All Surface vertical rods exit device require the use of DT‐516418‐15  After final assembly, you must not be able to see cable groove. • Connect each cable with its matching connector and route the excess of cable back into the hole of the door. • Line up the enclosure in the same position as shown below with the supplied surface mount drilling template. Proceed to drill the screws into the door. • Secure battery enclosure with 2 screw items 10 • Insert the batteries in the battery holder respecting the polarity indicated in the battery holder • Reinstall cover with setscrew. Saffire LX & Saffire EVO LZ series PK3713 www.dormakaba.com 03/2024...
  • Page 14: Install Outside Lever Handle

    5.8. Install the outside lever handle  • Install the outside bushing item 1, making sure it is snug • Install the outside lever handle according to the lock handing (LH/RH) • Secure using set screw item 6. IMPORTANT  Use only Alkaline batteries 5.9. Test lock functionality  Make sure the room door is open prior testing. A ‐ Present test keycard  B ‐ Check green & red lights flash  C ‐ Rotate outside lever to check bolt or rod(s) retraction  D ‐ Release outside lever, should move freely  E – Push panic bar to check bolt or rod(s) retraction  5.10. Program the lock  Refer to dormakaba access management system user manual for lock programming. Saffire LX & Saffire EVO LZ series PK3713 www.dormakaba.com 03/2024...
  • Page 15 Access & Data neighbor. Mechanical Lodging Key Systems Systems Entrance Interior Glass Systems Systems Safe Service Locks Customer Service dormakaba USA Inc. KWSCustomerService.AMER@dormakaba.com 6161 E. 75th Street Indianapolis, IN 46250 Technical Support lodgingsupport@dormakaba.com T: 1 800 849 8324 www.dormakabalodgingsupport.com dormakaba.us dormakaba.com...
