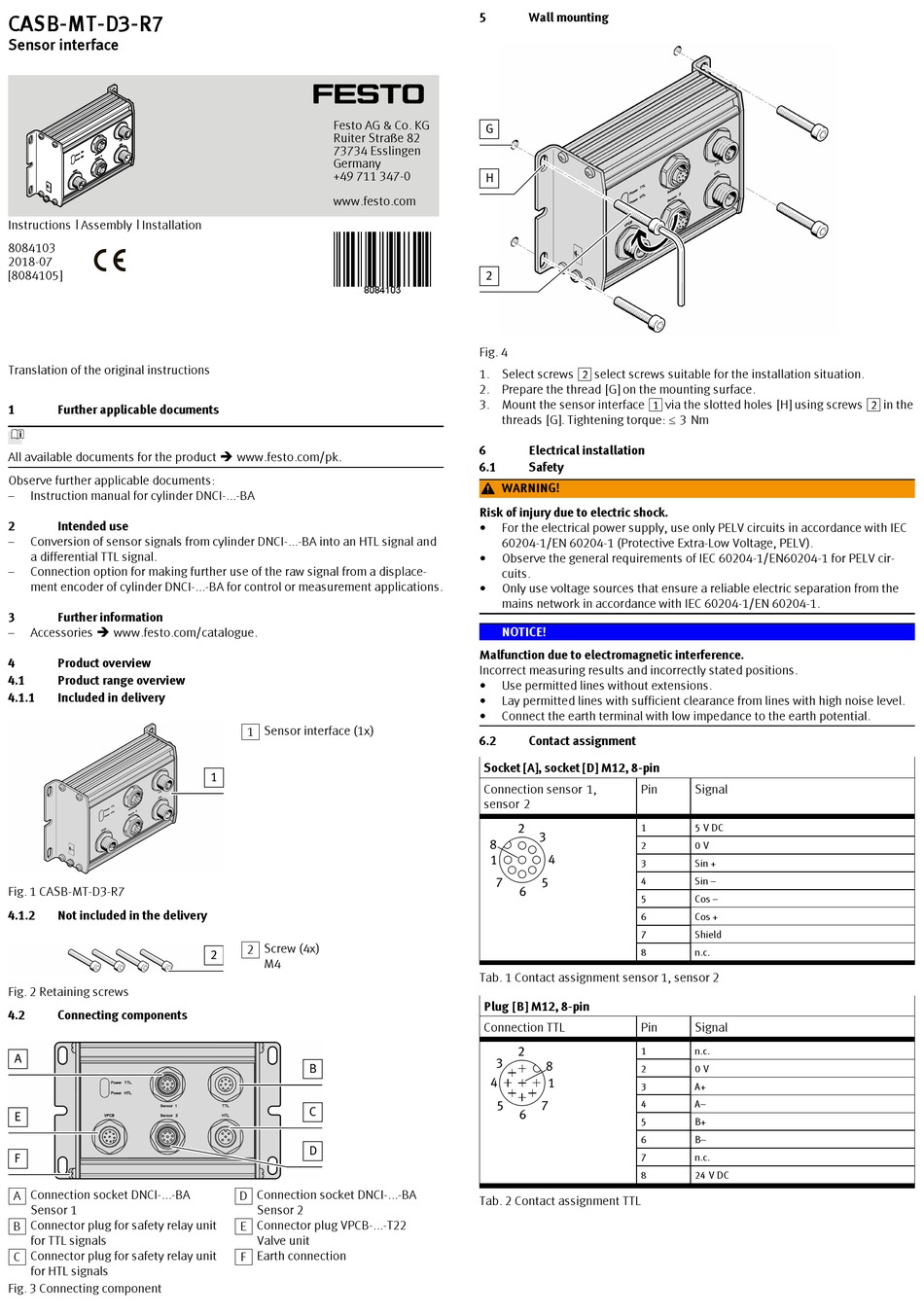

CASB-MT-D3-R7
Sensor interface
Instructions | Assembly | Installation
8084103
2018-07
[8084105]
Translation of the original instructions
1
Further applicable documents
All available documents for the product è www.festo.com/pk.
Observe further applicable documents:
Instruction manual for cylinder DNCI-...-BA
2
Intended use
Conversion of sensor signals from cylinder DNCI-...-BA into an HTL signal and
a differential TTL signal.
Connection option for making further use of the raw signal from a displace-
ment encoder of cylinder DNCI-...-BA for control or measurement applications.
3
Further information
Accessories è www.festo.com/catalogue.
4
Product overview
4.1
Product range overview
4.1.1
Included in delivery

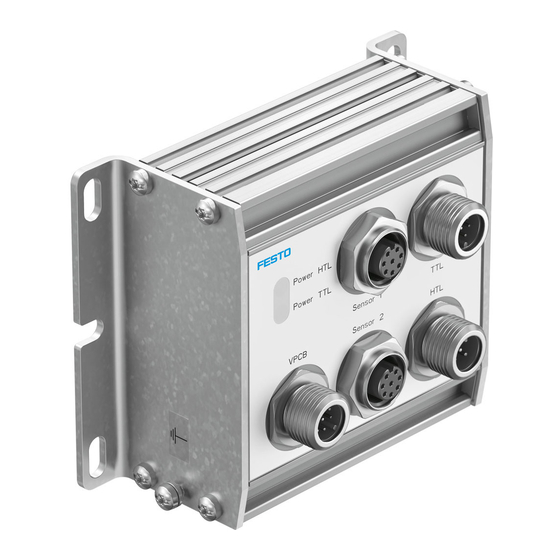

Fig. 1 CASB-MT-D3-R7
4.1.2
Not included in the delivery
Fig. 2 Retaining screws
4.2
Connecting components
A Connection socket DNCI-...-BA
Sensor 1
B Connector plug for safety relay unit
for TTL signals
C Connector plug for safety relay unit
for HTL signals
Fig. 3 Connecting component
Festo AG & Co. KG
Ruiter Straße 82
73734 Esslingen
Germany
+49 711 347-0
www.festo.com
8084103
1 Sensor interface (1x)
2 Screw (4x)
M4
D Connection socket DNCI-...-BA
Sensor 2
E Connector plug VPCB-...-T22
Valve unit
F Earth connection
5
Wall mounting
Fig. 4
1. Select screws 2 select screws suitable for the installation situation.
2. Prepare the thread [G] on the mounting surface.
3. Mount the sensor interface 1 via the slotted holes [H] using screws 2 in the
threads [G]. Tightening torque: £ 3 Nm
6
Electrical installation
6.1
Safety
WARNING!
Risk of injury due to electric shock.
For the electrical power supply, use only PELV circuits in accordance with IEC
60204-1/EN 60204-1 (Protective Extra-Low Voltage, PELV).
Observe the general requirements of IEC 60204-1/EN60204-1 for PELV cir-
cuits.
Only use voltage sources that ensure a reliable electric separation from the
mains network in accordance with IEC 60204-1/EN 60204-1.
NOTICE!
Malfunction due to electromagnetic interference.
Incorrect measuring results and incorrectly stated positions.
Use permitted lines without extensions.
Lay permitted lines with sufficient clearance from lines with high noise level.
Connect the earth terminal with low impedance to the earth potential.
6.2
Contact assignment
Socket [A], socket [D] M12, 8-pin
Connection sensor 1,
Pin
sensor 2
1
2
3
4
5
6
7
8
Tab. 1 Contact assignment sensor 1, sensor 2
Plug [B] M12, 8-pin
Connection TTL
Pin
1
2
3
4
5
6
7
8
Tab. 2 Contact assignment TTL
Signal
5 V DC
0 V
Sin +
Sin –
Cos –
Cos +
Shield
n.c.
Signal
n.c.
0 V
A+
A–
B+
B–
n.c.
24 V DC
