Summary of Contents for Festo CPX-AP-I-PN-M12

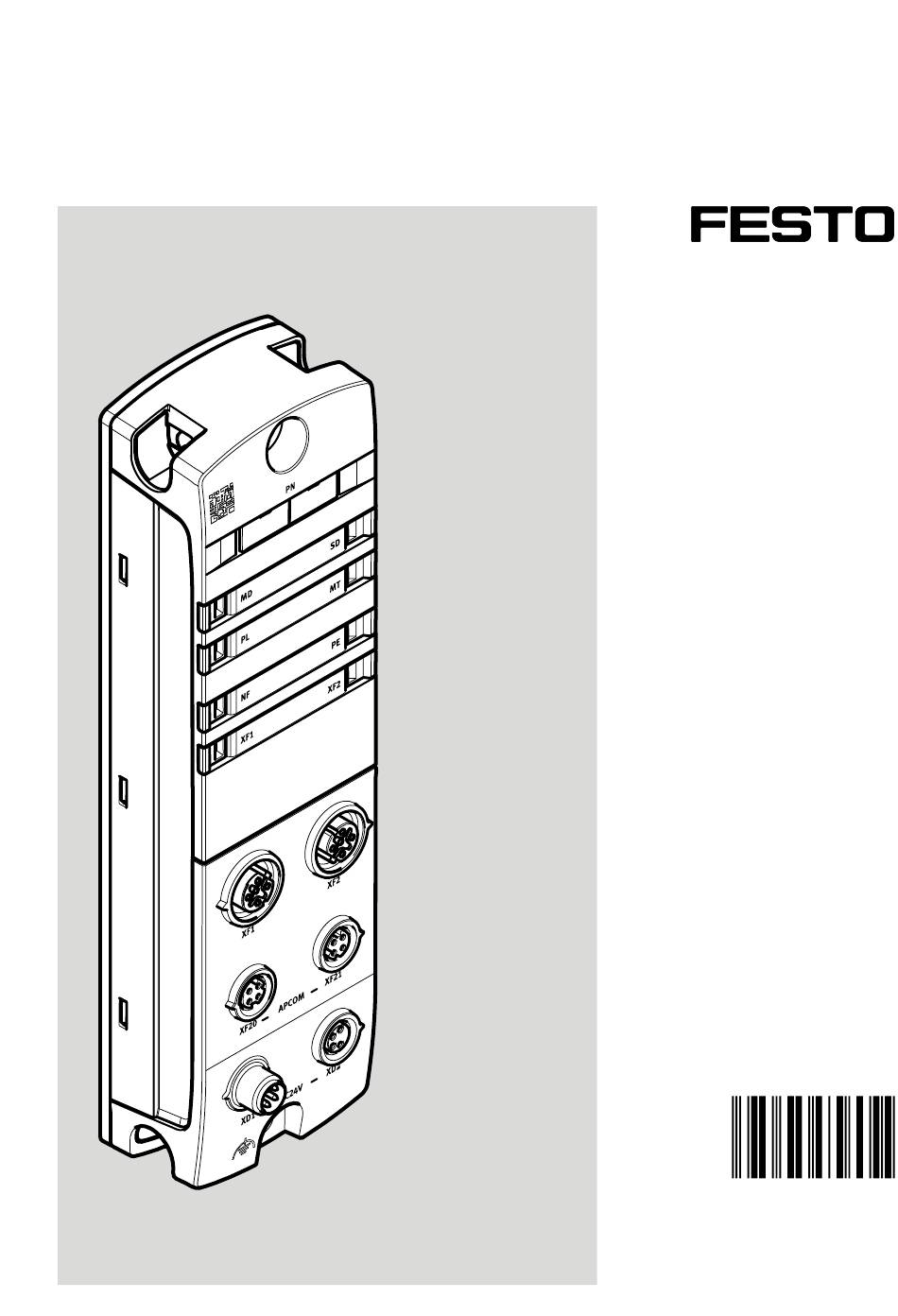

- Page 1 CPX-AP-I-PN-M12 PROFINET interface Instructions | Operat- 8099693 8099693 2019-06 [8099695]...
- Page 2 Translation of the original instructions ® PI PROFIBUS PROFINET is a registered trademark of its respective trademark holder in certain coun- tries. Festo — CPX-AP-I-PN-M12 — 2019-06...
-
Page 3: Table Of Contents
Commissioning......................10 Parameterisation......................10 Diagnostics and fault clearance.................. 12 10.1 Diagnostics options...................... 12 10.2 Diagnostic messages....................12 10.3 LED displays......................... 14 10.4 Diagnostics via web server................... 18 10.5 Diagnostics via PROFINET IO..................18 Disposal........................19 Technical data......................20 Festo — CPX-AP-I-PN-M12 — 2019-06... -
Page 4: About This Document
The product labelling is located on the right-hand side of the module. The Data Matrix code is on the connection side. Scanning the printed Data Matrix Code with an appropriate device opens the Festo Support Portal with the information appropriate for the product. Alternatively, the Product Key (11-digit alphanumeric code on the product labelling) can be entered in the search field of the Support Portal è www.festo.com/sp. -
Page 5: Specified Standards
Installation, commissioning, maintenance and disassembly should only be conducted by qualified per- sonnel. The qualified personnel must be familiar with installation of electrical control systems. Additional information – Accessories è www.festo.com/catalogue. Service Contact your regional Festo contact person if you have technical questions è www.festo.com. Festo — CPX-AP-I-PN-M12 — 2019-06... -
Page 6: Product Overview
This contains all the information required to parameterise the automation system CPX-AP via control software. The current device description file is available on the Festo Support Portal è www.festo.com/sp. Identification & Maintenance (I&M) The “Identification and Maintenance” (I&M) function serves as an electronic rating plate of the inter- face and offers uniform, manufacturer-independent access to device-specific online information over the network. -

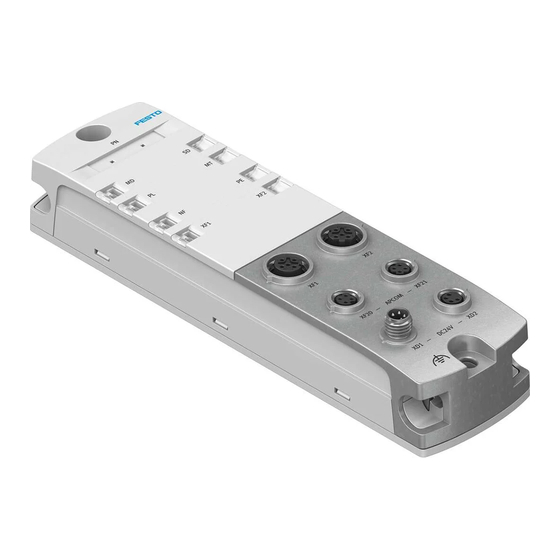

Page 7: Configuration
6 Mounting interface, lateral bottom and connection for functional earth FE 7 Connection for power supply [XD1] 8 Connection for system communication [XF20] 9 Network connection PROFINET [XF1] 10 Inscription label (optional) 11 Mounting interface, lateral top Fig. 1 Product design Festo — CPX-AP-I-PN-M12 — 2019-06... -
Page 8: Led Displays
Tab. 4 Connection for power supply Connection for voltage forwarding [XD2] Socket M8, 4-pin, A-coded Signal +24 V DC logic supply PS 0 V DC load supply PL 0 V DC logic supply PS +24 V DC load supply PL Tab. 5 Connection for voltage forwarding Festo — CPX-AP-I-PN-M12 — 2019-06... -
Page 9: Assembly
CPX-AP"è 1.1 Applicable documents. Installation • Carry out the installation according to the "Instruction manual for automation system CPX-AP"è 1.1 Applicable documents. • PROFINET Use network cables as described in the cable specification è 12 Technical data. Festo — CPX-AP-I-PN-M12 — 2019-06... -
Page 10: Commissioning
Switch on the higher-order controller and automation system CPX-AP according to the preset order of the network used. 1. Using the appropriate software, set up an automation project for the higher-order controller. 2. Import the device description file into the software è www.festo.com/sp. 3. Configure the automation system CPX-AP in the software: –... - Page 11 Each entry is of the data type UINT8 with the following meaning: – Bit 0: degree of severity information (1) – Bit 1: degree of severity maintenance – Bit 2: degree of severity warning (1) Festo — CPX-AP-I-PN-M12 — 2019-06...
-
Page 12: Diagnostics And Fault Clearance
Check logic supply PS. Diagnost- Error ic status 02 01 0105 Undervoltage in load Undervoltage in the load supply PL 24 V DC detected. (33620229) supply PL 24 V DC Remedy – Check load supply PL. Diagnost- Error ic status Festo — CPX-AP-I-PN-M12 — 2019-06... - Page 13 Remedy – Restart device. – Check AP system communication. – Check firmware version. – In the event of repeated errors, contact Festo Service. Diagnost- Error ic status Tab. 11 Diagnostic messages Festo — CPX-AP-I-PN-M12 — 2019-06...
-
Page 14: Led Displays
PL Illuminated red – Module ramp-up not yet completed. System communication not yet initial- ised. LED flashes red quickly – Module identification (service function) Flashes quickly green Tab. 12 LED module diagnostics [MD] Festo — CPX-AP-I-PN-M12 — 2019-06... - Page 15 Flashes red module. System diagnostics active Degree of severity "Error" e. g. sensor supply short circuit in a Illuminated red module. – Module identification (service function) Flashes quickly green Tab. 13 LED system diagnostics [SD] Festo — CPX-AP-I-PN-M12 — 2019-06...
- Page 16 – No maintenance needed. Maintenance required in at least one Carry out the necessary remedial meas- module in the automation system ures Instructions on the respective è CPX-AP. module. Illuminated Tab. 15 LED maintenance [MT] Festo — CPX-AP-I-PN-M12 — 2019-06...
- Page 17 IO controller defective. Perform maintenance on IO controller. Tab. 16 LED PROFINET network fault [NF] PROFIenergy [PE] LED (green) Meaning Remedy – PROFIenergy not activated. – PROFIenergy activated. Flashes green Tab. 17 LED PROFIenergy [PE] Festo — CPX-AP-I-PN-M12 — 2019-06...
-
Page 18: Diagnostics Via Web Server
ChannelErrType = 2001 with ExtChannelErrType = error number – Error number 32768 … 65535: ChannelErrType = 2002 with ExtChannelErrType = error number – 32768 The error number 0 is reserved. Information on grouping and displaying the diagnostic messages è Instructions on the automation system CPX-AP. Festo — CPX-AP-I-PN-M12 — 2019-06... -
Page 19: Disposal
Disposal Disposal ENVIRONMENT! Send the packaging and product for environmentally sound recycling in accordance with the current regulations è www.festo.com/sp. Festo — CPX-AP-I-PN-M12 — 2019-06... -
Page 20: Technical Data
SELV/PELV circuits tric shock (protection (safe extra-low voltage/protected extra-low voltage) against direct and indirect contact in accordance with IEC 61010-1) Electromagnetic com- See declaration of conformity www.festo.com è patibility Mounting position Tab. 19 General technical data Festo — CPX-AP-I-PN-M12 — 2019-06... - Page 21 PL Capacitive load at load supply PL 24 V PL to 0 V PL [nF] Typ. 35 24 V PL to FE [nF] Typ. 35 0 V PL to FE [nF] Typ. 20 Tab. 20 Power supply Festo — CPX-AP-I-PN-M12 — 2019-06...
- Page 22 Category Cat 5 or higher Cable diameter [mm] 6 8 … Wire cross section 0.14 0.75 … AWG 22 (required for maximum connection length between net- work participants) 1) Based on the Ethernet protocol IEEE 802.3 Tab. 21 Network-specific data Festo — CPX-AP-I-PN-M12 — 2019-06...
- Page 24 Copyright: Festo SE & Co. KG Ruiter Straße 82 73734 Esslingen Germany Reproduction, distribution or sale of this document or communic- Phone: ation of its contents to others without express authorization is +49 711 347-0 prohibited. Offenders will be liable for damages. All rights...
