QUICK START PROCEDURE
8. Launch the LTpowerPlay GUI.

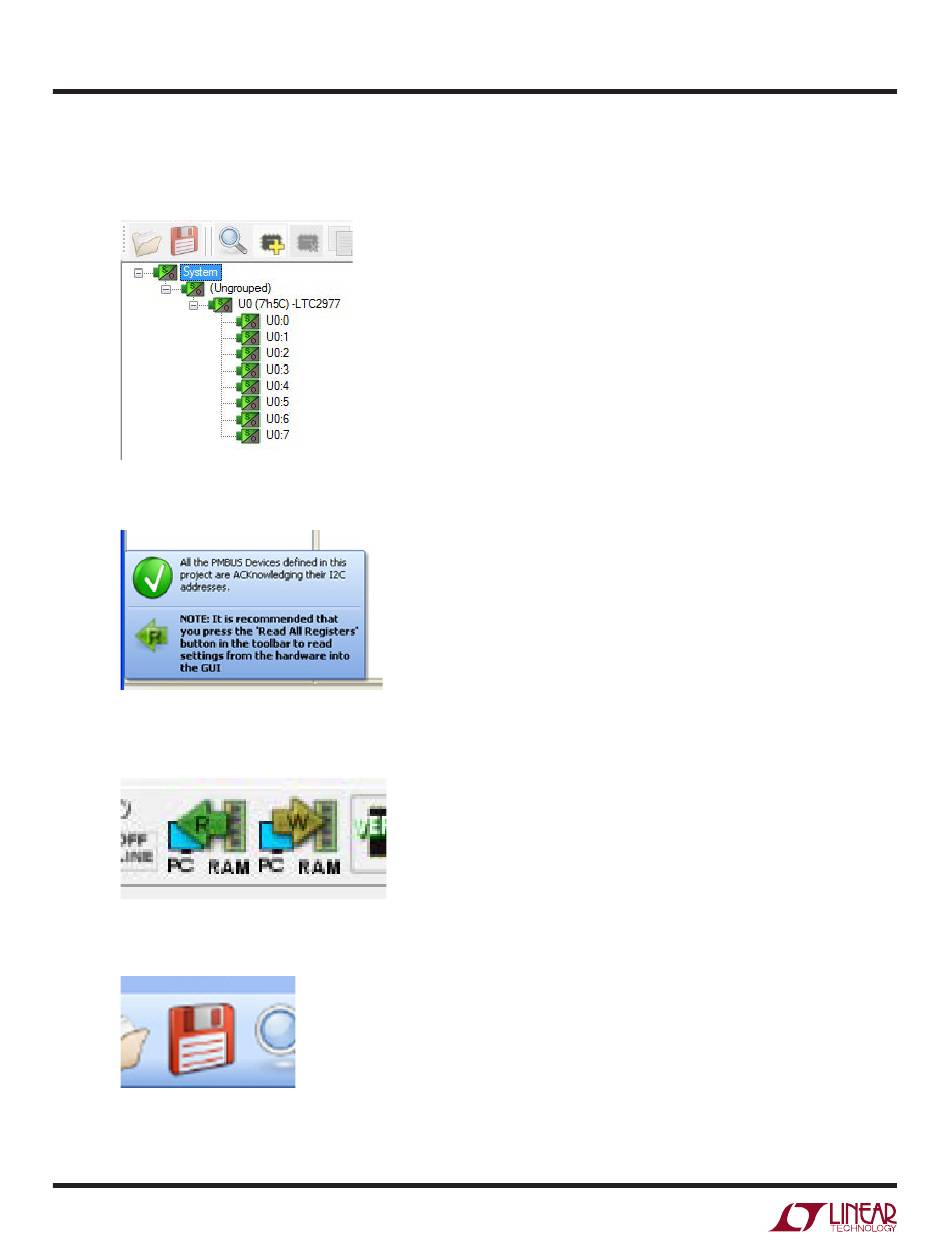

a. The GUI should identify the LTC2977. The system tree on the left hand side should look like:
b. Confirm that the LTC2977 is communicating. A green message box shows for a few seconds in the lower left
hand corner
c. In the Toolbar, click the "R" icon to read the RAM from the LTC2977. This reads the default configuration from
the RAM in the LTC2977 on the DC1360B and loads it into the GUI.
d. Save the demo board default configuration to a (*.proj) file. Click the "Save" icon and save the file. You can
chose your own filename.
9. Turn on the +12V power supply.
10. Slide the 2 black switches CONTROL 0 and CONTROL 1 to the HI position. This turns on the board.
