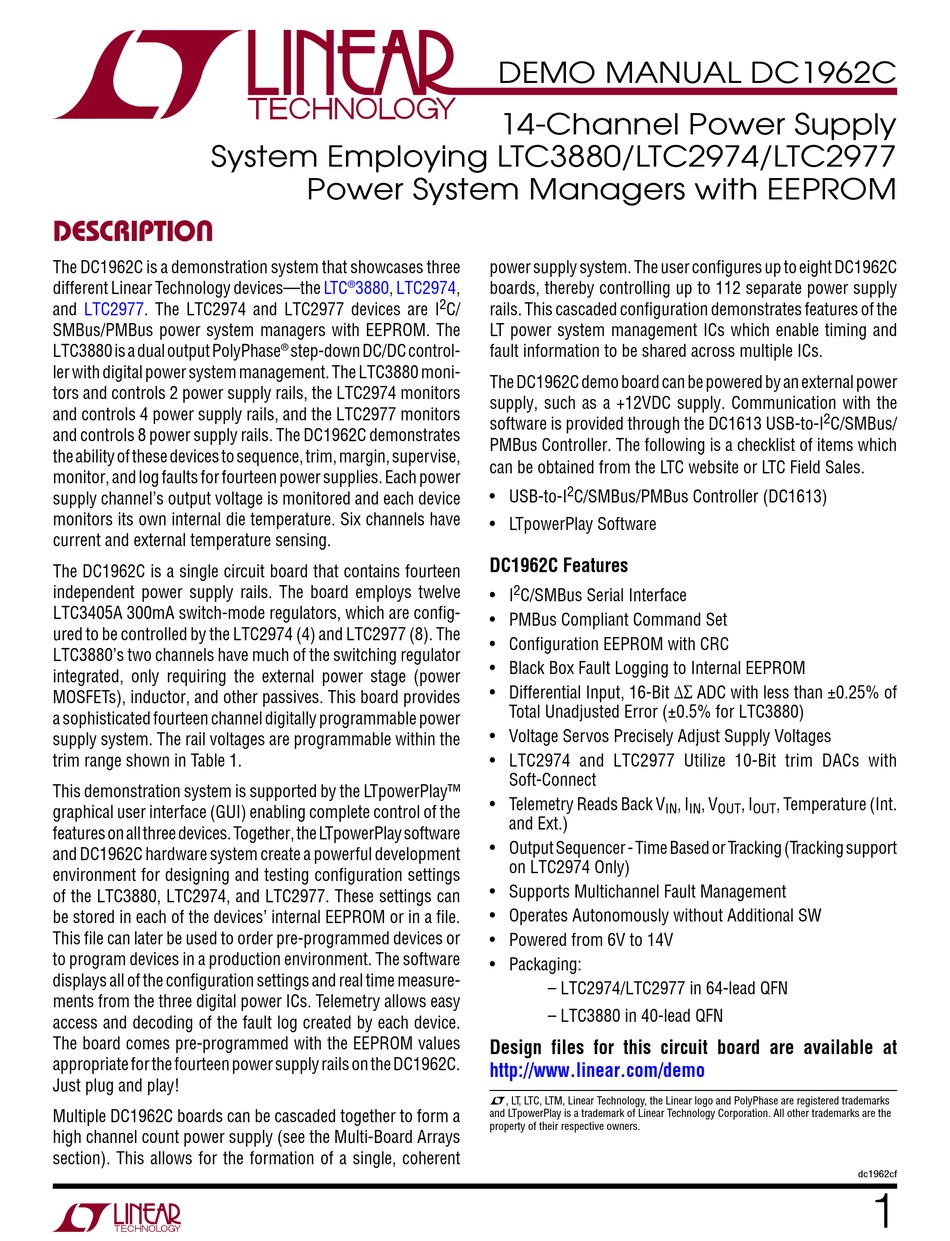

Linear Technology LTC3880 Demo Manual

Linear Technology LTC3880 Demo Manual

14-channel power supply system employing power system managers with eeprom
Hide thumbs Also See for LTC3880:

Advertisement

Quick Links

System Employing LTC3880/LTC2974/LTC2977
Description
The DC1962C is a demonstration system that showcases three
different Linear Technology devices—the
and LTC2977. The LTC2974 and LTC2977 devices are I
SMBus/PMBus power system managers with EEPROM. The
LTC3880 is a dual output PolyPhase
ler with digital power system management. The LTC3880 moni-
tors and controls 2 power supply rails, the LTC2974 monitors
and controls 4 power supply rails, and the LTC2977 monitors
and controls 8 power supply rails. The DC1962C demonstrates
the ability of these devices to sequence, trim, margin, supervise,
monitor, and log faults for fourteen power supplies. Each power
supply channel's output voltage is monitored and each device
monitors its own internal die temperature. Six channels have
current and external temperature sensing.
The DC1962C is a single circuit board that contains fourteen
independent power supply rails. The board employs twelve
LTC3405A 300mA switch-mode regulators, which are config-
ured to be controlled by the LTC2974 (4) and LTC2977 (8). The
LTC3880's two channels have much of the switching regulator
integrated, only requiring the external power stage (power
MOSFETs), inductor, and other passives. This board provides
a sophisticated fourteen channel digitally programmable power
supply system. The rail voltages are programmable within the
trim range shown in Table 1.
This demonstration system is supported by the LTpowerPlay™
graphical user interface (GUI) enabling complete control of the
features on all three devices. Together, the LTpowerPlay software
and DC1962C hardware system create a powerful development
environment for designing and testing configuration settings
of the LTC3880, LTC2974, and LTC2977. These settings can
be stored in each of the devices' internal EEPROM or in a file.
This file can later be used to order pre-programmed devices or
to program devices in a production environment. The software
displays all of the configuration settings and real time measure-
ments from the three digital power ICs. Telemetry allows easy
access and decoding of the fault log created by each device.
The board comes pre-programmed with the EEPROM values
appropriate for the fourteen power supply rails on the DC1962C.
Just plug and play!
Multiple DC1962C boards can be cascaded together to form a
high channel count power supply (see the Multi-Board Arrays
section). This allows for the formation of a single, coherent
Power System Managers with EEPROM
LTC
3880, LTC2974,
®
2
C/
step-down DC/DC control-
®
DEMO MANUAL DC1962C
14-Channel Power Supply
power supply system. The user configures up to eight DC1962C
boards, thereby controlling up to 112 separate power supply
rails. This cascaded configuration demonstrates features of the
LT power system management ICs which enable timing and
fault information to be shared across multiple ICs.
The DC1962C demo board can be powered by an external power
supply, such as a +12VDC supply. Communication with the
software is provided through the DC1613 USB-to-I
PMBus Controller. The following is a checklist of items which
can be obtained from the LTC website or LTC Field Sales.
2
• USB-to-I
C/SMBus/PMBus Controller (DC1613)
• LTpowerPlay Software
DC1962C Features
2
• I
C/SMBus Serial Interface
• PMBus Compliant Command Set
• Configuration EEPROM with CRC
• Black Box Fault Logging to Internal EEPROM
• Differential Input, 16-Bit Δ∑ ADC with less than ±0.25% of
Total Unadjusted Error (±0.5% for LTC3880)
• Voltage Servos Precisely Adjust Supply Voltages
• LTC2974 and LTC2977 Utilize 10-Bit trim DACs with
Soft-Connect
• Telemetry Reads Back V
IN
and Ext.)
• Output Sequencer - Time Based or Tracking (Tracking support
on LTC2974 Only)
• Supports Multichannel Fault Management
• Operates Autonomously without Additional SW
• Powered from 6V to 14V
• Packaging:
– LTC2974/LTC2977 in 64-lead QFN
– LTC3880 in 40-lead QFN
Design files for this circuit board are available at
http://www.linear.com/demo
L, LT, LTC, LTM, Linear Technology, the Linear logo and PolyPhase are registered trademarks
and LTpowerPlay is a trademark of Linear Technology Corporation. All other trademarks are the
property of their respective owners.
2
C/SMBus/
, I
, V
, I
, Temperature (Int.
IN
OUT
OUT
dc1962cf
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the LTC3880 and is the answer not in the manual?

Questions and answers

Summary of Contents for Linear Technology LTC3880

  • Page 1 Just plug and play! L, LT, LTC, LTM, Linear Technology, the Linear logo and PolyPhase are registered trademarks Multiple DC1962C boards can be cascaded together to form a and LTpowerPlay is a trademark of Linear Technology Corporation. All other trademarks are the property of their respective owners.
  • Page 2: Performance Summary

    VALUE PARAMETER CONDITIONS UNITS Supply Input Voltage Range ADC Total Unadjusted Error ≥ 1V, Applies to LTC2974/LTC2977 ±0.25 IN_ADC ≥ 1V, Applies to LTC3880 ±0.5 IN_ADC ADC Voltage Sensing Input Range Differential Voltage: V = (V – V IN_ADC SENSEPn...
  • Page 3 LTC3880 dual output PolyPhase step-down DC/DC controller with digital power system manage- ment. The software supports a variety of different tasks. You can use LTpowerPlay to evaluate Linear Technology ICs by connecting to a demo board system. LTpowerPlay can also be used in an offline mode (with no hardware present) in order to build a multi-chip configuration file that can be saved and re-loaded at a later time.
  • Page 4: Quick Start Procedure

    DEMO MANUAL DC1962C Quick start proceDure To access technical support documents for LTC Digital Power Products visit “Help, View Online help” on the LTpow- erPlay menu. The following are examples of content available in the online help: 1. Demonstration and Tutorial Videos • An updated Quick Start Demonstration video of LTpowerPlay and this demo board • Product/Feature-specific demonstration and tutorial videos 2.
  • Page 5 DEMO MANUAL DC1962C Quick start proceDure 3. Confirm that the CONTROL switch is set to the RUN b. A green message box will be displayed momentarily position. in the lower left hand corner confirming that the DC1962C is communicating. 4. Plug the USB-to-I C/SMBus/PMBus Controller into a USB port on your PC.
  • Page 6 DEMO MANUAL DC1962C Quick start proceDure Loading a DC1962C Configuration (*.proj) File with the GUI 1. In the upper left hand corner of the GUI, File > Open > browse to your *.proj file. This will load the file into the GUI. icon, then click on the “PC →...
  • Page 7 DEMO MANUAL DC1962C common Demo BoarD operations Margin All Rails A look at the telemetry window shows the effect of the margin high or margin low operation. The following screen The digital power products on the DC1962C not only shot shows all rails going from nominal set points to monitor each of their respective outputs but can margin margin high, margin low, and back to nominal voltages.
  • Page 8 (RAM), press RESET (SW2) on the DC1962C. Note that the “RESET” icon in the GUI tool bar issues a software reset for any LTC3880 device in the system. It is recommended that you use the reset pushbutton on the board to provide a reset condition to the entire system.
  • Page 9 TOFF_DELAY values. Each channel has an LED which The LTC3880, LTC2974, and LTC2977 have been pre- visually indicates if the channel has power. When the configured with different TON_DELAY values for each CONTROL pin is switched on and off, you will observe the channel.
  • Page 10 DEMO MANUAL DC1962C common Demo BoarD operations "Why Am I Off?” Tool Use the “Why am I Off?” tool in the LTpowerPlay GUI to diagnose the reason a power supply channel is turned off. The tool can be located in the top right corner of the GUI, above the Register Information tab. Hover your cursor over this tab to show the tool.
  • Page 11 DEMO MANUAL DC1962C aDvanceD Demo BoarD operations Working with the Fault Log “EEPROM to RAM” button. At this point the RAM Log is locked and not updated even though the telemetry read- Once a fault has occurred, the Fault Log (FL) icon ings continue.
  • Page 12 You can think of the “Response” Figure 8. All Response and all Propagate switches are closed by default. In this configuration, a fault on an LTC3880 or switches as “shut this channel down when another channel faults”, and the “Propagate”...
  • Page 13 DEMO MANUAL DC1962C aDvanceD Demo BoarD operations Fault Configuration Example We can now create a fault on U1:0 (CH2) by shorting the output to ground. Press the CREATE FAULT button on Let’s explore two different examples. Suppose we do not the board.
  • Page 14 The two LTC3880 channels can be uniquely configured turn off CH1. This is achieved by setting the appropriate and any fault can be propagated or not. Since the LTC3880 MFR_GPIO_PROPAGATE command code and the MFR_ GPIO pins are tied together, a fault on CH0 may be used to GPIO_RESPONSE command to “inhibit.”...
  • Page 15 DEMO MANUAL DC1962C setup proceDure for multiBoarD arrays 4. The USB-to-I C/SMBus/PMBus Controller may be 6. Re-launch LTpowerPlay. After launching, LTpowerPlay plugged into any board. If no DC1962C boards show up will enumerate the entire board array and build a rep- in the GUI, click the magnifying glass icon to enumer- resentative system tree and read all hardware settings ate the I...
  • Page 16 DEMO MANUAL DC1962C setup proceDure for multiBoarD arrays Ensuring Slave Addresses Do Not Conflict expander has a base address of 0x20. The DIP switch settings set the offset. The three switches that may be There is a small DIP switch on the backside of the DC1962C. changed are labeled A0, A1, A2.
  • Page 17 Table 3. DC1962C - Default Switch Configuration (Default Position Shown in Grey in the Figure Above) REFERENCE DESIGNATOR SIGNAL NAME USAGE DEFAULT A0, A1, A2 DIP switch used to set the address offset OPEN CONTROL0 Switch used to enable/disable the CONTROL0 input pin of LTC3880, LTC2974, and LTC2977 dc1962cf...
  • Page 18 DEMO MANUAL DC1962C Dc1962c Details - Bottom dc1962cf...
  • Page 19: Parts List

    ITEM REFERENCE PART DESCRIPTION MANUFACTURER/PART NUMBER Required Circuit Components IC DUAL PolyPhase CONTROLLER 40-QFN Linear Technology: LTC3880EUJ-1 IC 8-CH PWR SYSTEM MANAGER 64-QFN Linear Technology: LTC2977CUP IC 4-CH PWR SYSTEM MANAGER 64-QFN Linear Technology: LTC2974CUP Additional Demo Board Circuit Components...
  • Page 20 DEMO MANUAL DC1962C parts list ITEM REFERENCE PART DESCRIPTION MANUFACTURER/PART NUMBER R1, R2, R3, R4, R29, R60, R61, R62, R63, RES 100k 1/10W 1% 0603 SMD Vishay: CRCW0603100KFKEA R76, R77, R78, R79, R80, R81, R82, R83, R118, R119, R120, R121 R5, R6, R7, R8 RES 1.50k 1/10W 1% 0603 SMD Yageo: RC0603FR-071K5L...
  • Page 21 U1, U2, U3, U4, U12, U13, U14, U15, U16, IC BUCK SYNC ADJ 0.3A SOT23-6 Linear Technology: U17, U18, U19 LTC3405AES6#TRMPBF IC BUCK SYNC 2.5A 16QFN Linear Technology: LTC3604IUD#PBF IC COMP DUAL 400MV REF TSOT23-6 Linear Technology: LT6700CS6-2#TRPBF IC DUAL 4A DIODES 16-MSOP Linear Technology:...
  • Page 22 DEMO MANUAL DC1962C schematic DiaGram dc1962cf...
  • Page 23 DEMO MANUAL DC1962C schematic DiaGram dc1962cf...
  • Page 24 DEMO MANUAL DC1962C schematic DiaGram dc1962cf...
  • Page 25 DEMO MANUAL DC1962C schematic DiaGram dc1962cf...
  • Page 26 DEMO MANUAL DC1962C schematic DiaGram dc1962cf...
  • Page 27 DEMO MANUAL DC1962C schematic DiaGram dc1962cf...
  • Page 28 DEMO MANUAL DC1962C schematic DiaGram dc1962cf...
  • Page 29 Information furnished by Linear Technology Corporation is believed to be accurate and reliable. However, no responsibility is assumed for its use. Linear Technology Corporation makes no representa- tion that the interconnection of its circuits as described herein will not infringe on existing patent rights.
  • Page 30 Linear Technology Corporation (LTC) provides the enclosed product(s) under the following AS IS conditions: This demonstration board (DEMO BOARD) kit being sold or provided by Linear Technology is intended for use for ENGINEERING DEVELOPMENT OR EVALUATION PURPOSES ONLY and is not provided by LTC for commercial use. As such, the DEMO BOARD herein may not be complete in terms of required design-, marketing-, and/or manufacturing-related protective considerations, including but not limited to product safety measures typically found in finished commercial goods.
  • Page 31 Mouser Electronics Authorized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: Analog Devices Inc. DC1962C DC1962C-KIT...
