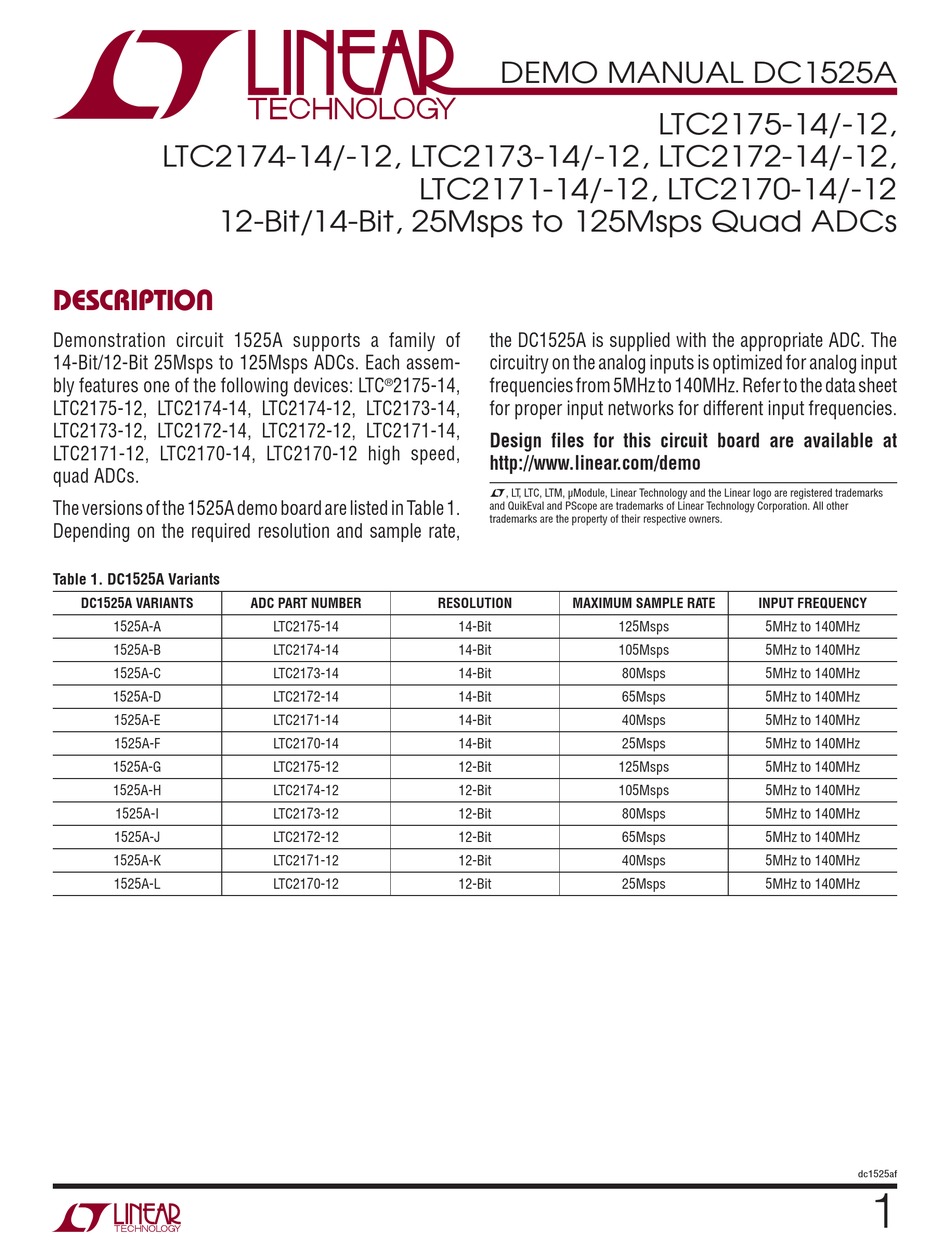

LTC2174-14/-12, LTC2173-14/-12, LTC2172-14/-12,
12-Bit/14-Bit, 25Msps to 125Msps Quad ADCs
DESCRIPTION
Demonstration circuit 1525A supports a family of
14-Bit/12-Bit 25Msps to 125Msps ADCs. Each assem-
bly features one of the following devices: LTC
LTC2175-12, LTC2174-14, LTC2174-12, LTC2173-14,
LTC2173-12, LTC2172-14, LTC2172-12, LTC2171-14,
LTC2171-12, LTC2170-14, LTC2170-12 high speed,
quad ADCs.
The versions of the 1525A demo board are listed in Table 1.
Depending on the required resolution and sample rate,
Table 1. DC1525A Variants
DC1525A VARIANTS
1525A-A
1525A-B
1525A-C
1525A-D
1525A-E
1525A-F
1525A-G
1525A-H
1525A-I
1525A-J
1525A-K
1525A-L
LTC2171-14/-12, LTC2170-14/-12
®
2175-14,
ADC PART NUMBER
LTC2175-14
LTC2174-14
LTC2173-14
LTC2172-14
LTC2171-14
LTC2170-14
LTC2175-12
LTC2174-12
LTC2173-12
LTC2172-12
LTC2171-12
LTC2170-12
DEMO MANUAL DC1525A
the DC1525A is supplied with the appropriate ADC. The
circuitry on the analog inputs is optimized for analog input
frequencies from 5MHz to 140MHz. Refer to the data sheet
for proper input networks for different input frequencies.
Design files for this circuit board are available at
http://www.linear.com/demo
L, LT, LTC, LTM, μModule, Linear Technology and the Linear logo are registered trademarks
and QuikEval and PScope are trademarks of Linear Technology Corporation. All other
trademarks are the property of their respective owners.
RESOLUTION
MAXIMUM SAMPLE RATE
14-Bit
14-Bit
14-Bit
14-Bit
14-Bit
14-Bit
12-Bit
12-Bit
12-Bit
12-Bit
12-Bit
12-Bit
LTC2175-14/-12,
INPUT FREQUENCY
125Msps
5MHz to 140MHz
105Msps
5MHz to 140MHz
80Msps
5MHz to 140MHz
65Msps
5MHz to 140MHz
40Msps
5MHz to 140MHz
25Msps
5MHz to 140MHz
125Msps
5MHz to 140MHz
105Msps
5MHz to 140MHz
80Msps
5MHz to 140MHz
65Msps
5MHz to 140MHz
40Msps
5MHz to 140MHz
25Msps
5MHz to 140MHz
dc1525af
1
