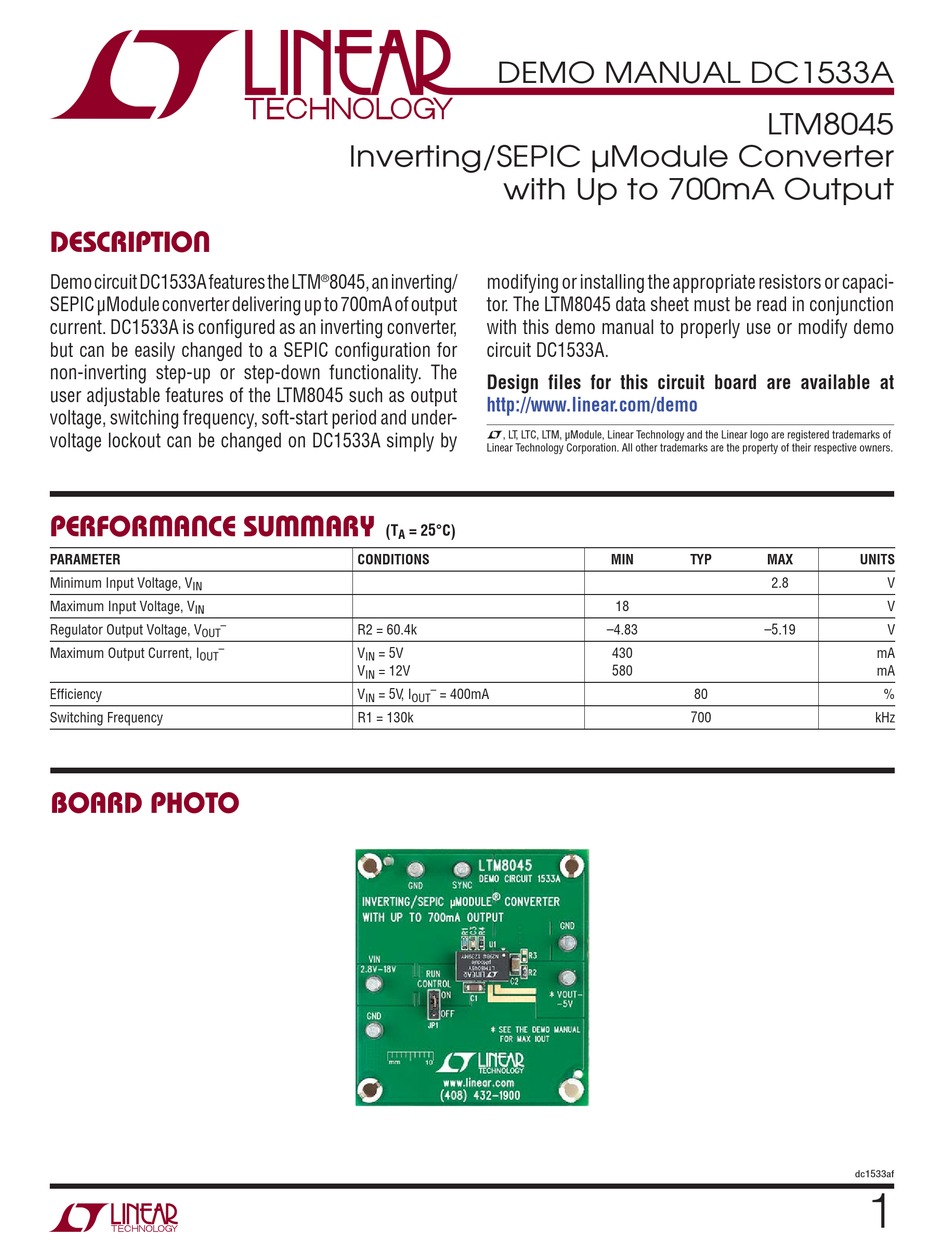

Linear Technology DC1533A Demo Manual

Ltm8045 inverting/sepic µmodule converter with up to 700ma output
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual
DESCRIPTION
Demo circuit DC1533A features the LTM
SEPIC μModule converter delivering up to 700mA of output
current. DC1533A is configured as an inverting converter,
but can be easily changed to a SEPIC configuration for
non-inverting step-up or step-down functionality. The
user adjustable features of the LTM8045 such as output
voltage, switching frequency, soft-start period and under-
voltage lockout can be changed on DC1533A simply by
PERFORMANCE SUMMARY
PARAMETER
Minimum Input Voltage, V
IN
Maximum Input Voltage, V
IN
–
Regulator Output Voltage, V
OUT
–
Maximum Output Current, I
OUT
Efficiency
Switching Frequency

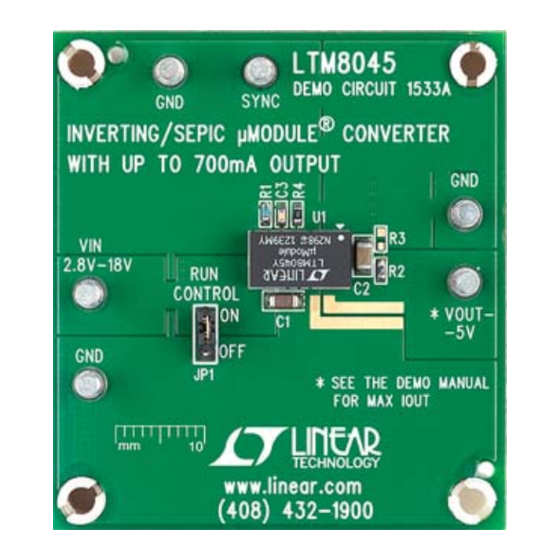

BOARD PHOTO
DEMO MANUAL DC1533A
Inverting/SEPIC µModule Converter
®
8045, an inverting/
modifying or installing the appropriate resistors or capaci-
tor. The LTM8045 data sheet must be read in conjunction
with this demo manual to properly use or modify demo
circuit DC1533A.
Design files for this circuit board are available at
http://www.linear.com/demo
L, LT, LTC, LTM, μModule, Linear Technology and the Linear logo are registered trademarks of
Linear Technology Corporation. All other trademarks are the property of their respective owners.
(T
= 25°C)
A
CONDITIONS
R2 = 60.4k
V
= 5V
IN
V
= 12V
IN
–
V
= 5V, I
= 400mA
IN
OUT
R1 = 130k
with Up to 700mA Output
MIN
18
–4.83
430
580
LTM8045
TYP
MAX
UNITS
2.8
–5.19
80
700
dc1533af
1
V
V
V
mA
mA
%
kHz

Advertisement

loading
Need help?

Need help?

Do you have a question about the DC1533A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Linear Technology DC1533A

Summary of Contents for Linear Technology DC1533A

  • Page 1 L, LT, LTC, LTM, μModule, Linear Technology and the Linear logo are registered trademarks of voltage lockout can be changed on DC1533A simply by Linear Technology Corporation. All other trademarks are the property of their respective owners.

  • Page 2: Quick Start Procedure

    DEMO MANUAL DC1533A QUICK START PROCEDURE Demo circuit DC1533A is an easy way to evaluate the and GND terminals. See Figure 3 for proper scope performance of the LTM8045. Refer to Figure 1 for the probe technique. proper measurement equipment setup and Figure 2 for 1.
  • Page 3 DEMO MANUAL DC1533A QUICK START PROCEDURE INPUT VOLTAGE (V) DC1533A F02 Figure 2. Maximum Output Current vs Input Voltage for V = –5V OR V DC1533A F03 Figure 3. Proper Scope Probe Technique dc1533af...
  • Page 4 Instructions to Convert DC1533A to a 5V SEPIC with a Positive V 1. Start with DC1533A. Disconnect all supplies and loads. 2. Remove R2 and install R3 = 45.3k as shown in Figure 4. R3 MUST BE PRESENT BEFORE OPERATION OTHERWISE THE LTM8045 MAY BE DAMAGED.
  • Page 5 DEMO MANUAL DC1533A – 4. Solder the exposed copper together with braid to connect the terminal labeled V to the ground plane, as shown – in Figure 6. The terminal labeled V is now GND. Figure 6 5. Change C2 to 100μF 6.3V 1206 or 1210. Change R1 to 115k to optimize the switching frequency.
  • Page 6 DEMO MANUAL DC1533A PARTS LIST ITEM REFERENCE PART DESCRIPTION MANUFACTURER/PART NUMBER Required Circuit Components CAP ., X7R, 4.7μF , 25V, 10%, 1206 NIC, NMC1206X7R475K25TRPLPF CAP ., X5R, 22μF , 16V, 10%, 1206 AVX, 1206YD226KAT2A CAP ., X7R, 10nF , 16V, 10%, 0603 AVX, 0603YC103KAT2A RES., CHIP , 130k, 1% ,0603...

  • Page 7: Schematic Diagram
