Description

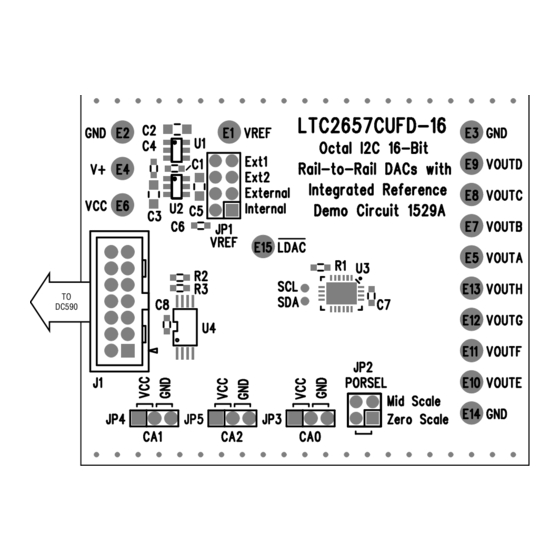

Demonstration circuit 1529A features the
16-bit DAC with ±4LSB INL error. This device establishes
a new board-density benchmark for 16-bit DACs and
advances performance standards for output drive, cross-
talk and load regulation in single supply, voltage-output
multiple DACs.
TO
DC590
LTC2657
Octal
DEMO BOARD TYPE
LTC2657 VARIATION
DC1529A-A
LTC2657BCUFD-L16
DC1529A-B
LTC2657BCUFD-H16

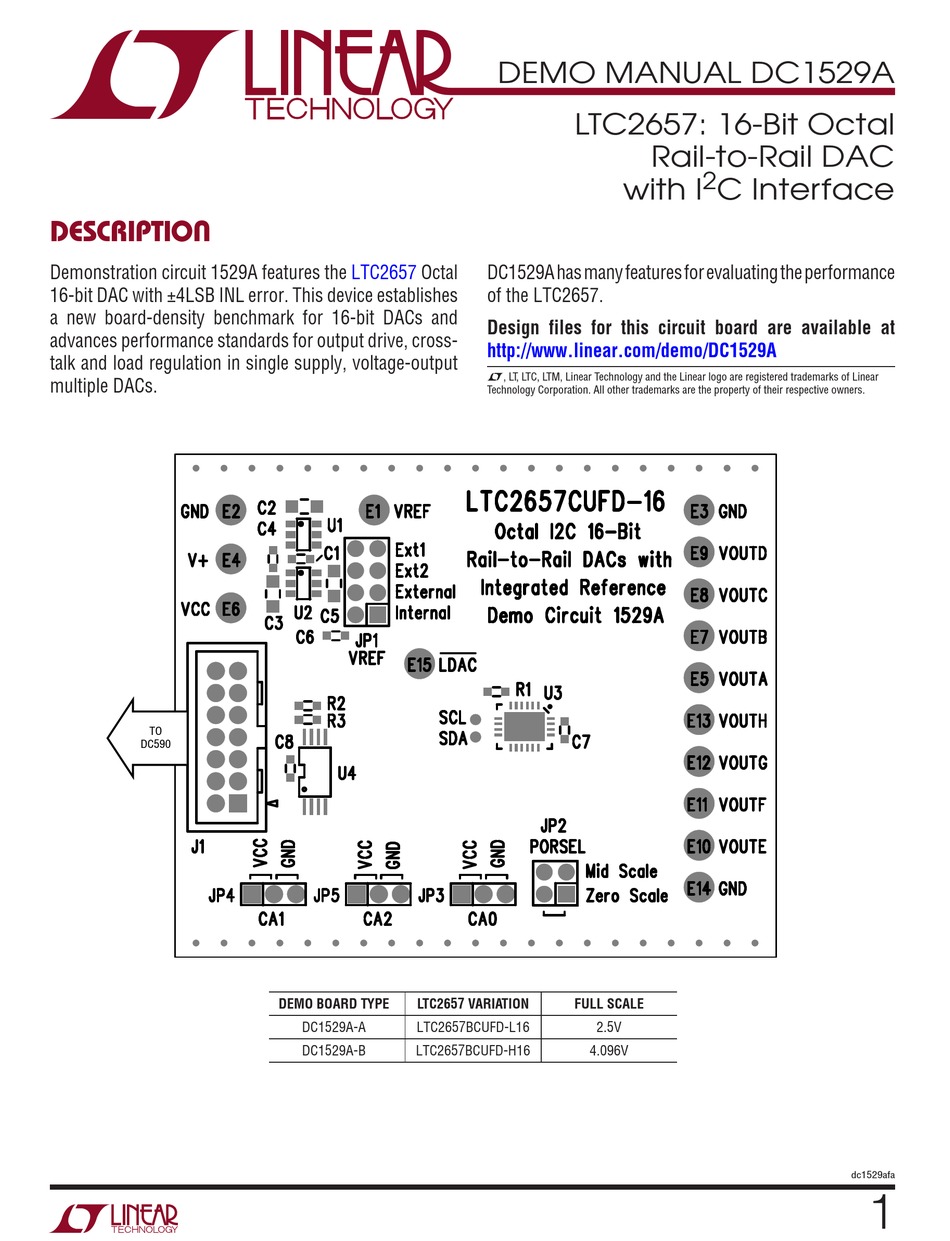

DEMO MANUAL DC1529A
LTC2657: 16-Bit Octal
Rail-to-Rail DAC
with I
DC1529A has many features for evaluating the performance
of the LTC2657.
Design files for this circuit board are available at
http://www.linear.com/demo/DC1529A
L, LT, LTC, LTM, Linear Technology and the Linear logo are registered trademarks of Linear
Technology Corporation. All other trademarks are the property of their respective owners.
FULL SCALE
2.5V
4.096V
2
C Interface
dc1529afa
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DC1529A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Linear Technology DC1529A

Summary of Contents for Linear Technology DC1529A

  • Page 1 L, LT, LTC, LTM, Linear Technology and the Linear logo are registered trademarks of Linear multiple DACs. Technology Corporation. All other trademarks are the property of their respective owners.

  • Page 2: Quick Start Procedure

    DEMO MANUAL DC1529A Quick start proceDure Connect DC1529A to a DC590 USB serial controller using the supplied 14 conductor ribbon cable. Connect DC590 to a host PC with a standard USB A/B cable. Run the evalu- ation software supplied with DC590 or download it from www.linear.com/software.

  • Page 3: Hardware Setup

    Grounding and Power Connections JP2: Power-Up Mode. The LTC2657 can be set to either Power (V ): Normally DC1529A is powered by the DC590 power-up in mid-scale or zero-scale. Default is zero-scale. controller. V can be supplied to this turret, however...

  • Page 4: Parts List

    I.C., MICROPOWER SOT-23 LOW DROPOUT LINEAR TECH., LT1790ACS6 U2 (Opt.) I.C., PRECISION REFERENCE LINEAR TECH., LT1236ACS8-5 I.C., SERIAL EEPROM, TSSOP-8 MICROCHIP, 24LC025-I/ST DC1529A-A Required Circuit Components I.C., LTC2657BCUFD-L16, UFD-20 LINEAR TECH., LTC2657BCUFD-L16# DC1529A-B Required Circuit Components I.C., LTC2657BCUFD-H16, UFD-20 LINEAR TECH., LTC2657BCUFD-H16# dc1529afa...

  • Page 5: Schematic Diagram

    Information furnished by Linear Technology Corporation is believed to be accurate and reliable. However, no responsibility is assumed for its use. Linear Technology Corporation makes no representa- tion that the interconnection of its circuits as described herein will not infringe on existing patent rights.
  • Page 6 Linear Technology Corporation (LTC) provides the enclosed product(s) under the following AS IS conditions: This demonstration board (DEMO BOARD) kit being sold or provided by Linear Technology is intended for use for ENGINEERING DEVELOPMENT OR EVALUATION PURPOSES ONLY and is not provided by LTC for commercial use. As such, the DEMO BOARD herein may not be complete in terms of required design-, marketing-, and/or manufacturing-related protective considerations, including but not limited to product safety measures typically found in finished commercial goods.
  • Page 7 Mouser Electronics Authorized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: Analog Devices Inc. DC1529A-B DC1529A-A...
