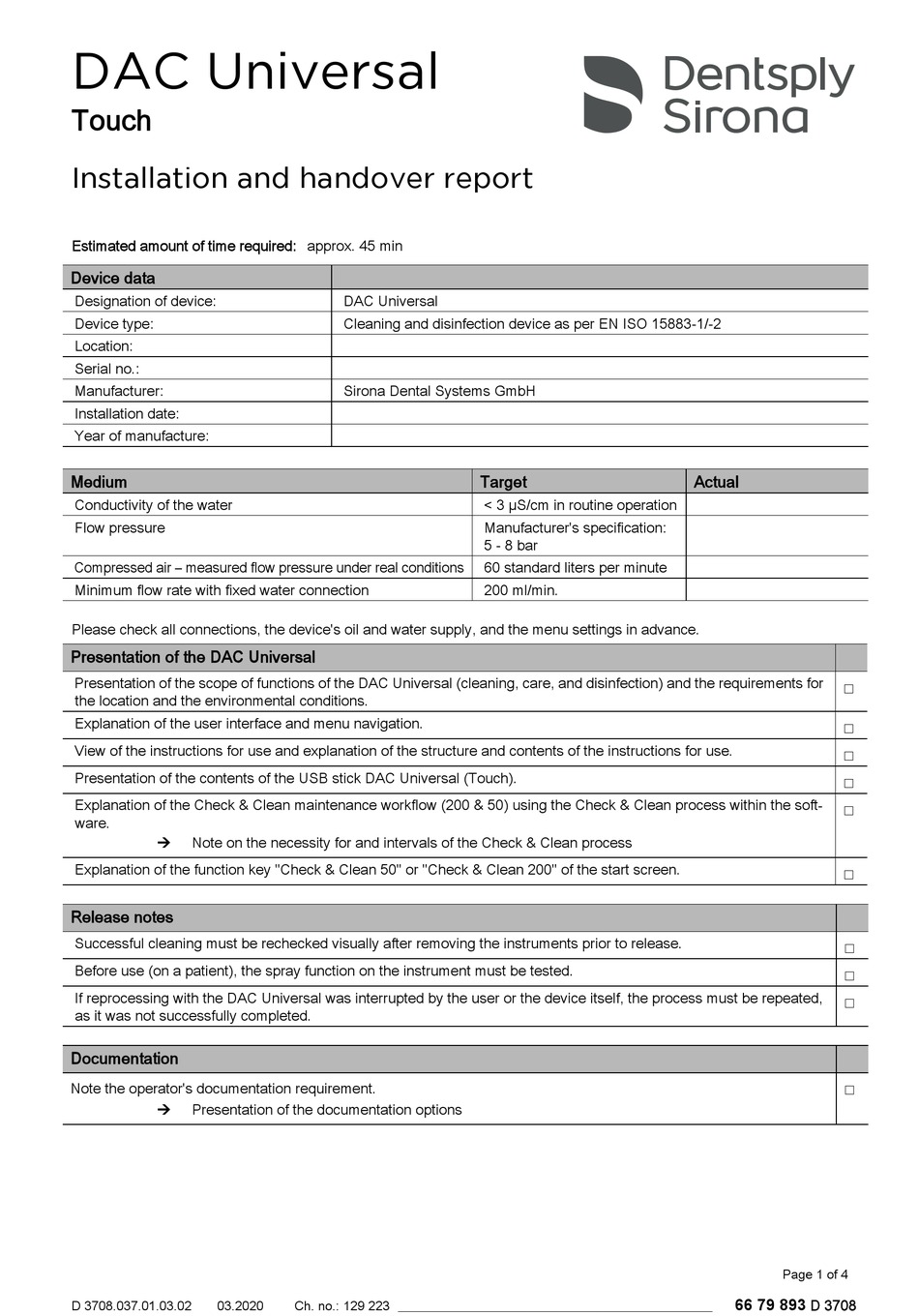

DAC Universal
Touch
Installation and handover report
Estimated amount of time required: approx. 45 min
Device data
Designation of device:
Device type:
Location:
Serial no.:
Manufacturer:
Installation date:
Year of manufacture:
Medium
Conductivity of the water
Flow pressure
Compressed air – measured flow pressure under real conditions
Minimum flow rate with fixed water connection
Please check all connections, the device's oil and water supply, and the menu settings in advance.
Presentation of the DAC Universal
Presentation of the scope of functions of the DAC Universal (cleaning, care, and disinfection) and the requirements for
the location and the environmental conditions.
Explanation of the user interface and menu navigation.
View of the instructions for use and explanation of the structure and contents of the instructions for use.
Presentation of the contents of the USB stick DAC Universal (Touch).
Explanation of the Check & Clean maintenance workflow (200 & 50) using the Check & Clean process within the soft-
ware.
Note on the necessity for and intervals of the Check & Clean process
Explanation of the function key "Check & Clean 50" or "Check & Clean 200" of the start screen.
Release notes
Successful cleaning must be rechecked visually after removing the instruments prior to release.
Before use (on a patient), the spray function on the instrument must be tested.
If reprocessing with the DAC Universal was interrupted by the user or the device itself, the process must be repeated,
as it was not successfully completed.
Documentation
Note the operator's documentation requirement.
Presentation of the documentation options
D 3708.037.01.03.02
03.2020
DAC Universal
Cleaning and disinfection device as per EN ISO 15883-1/-2
Sirona Dental Systems GmbH
Ch. no.: 129 223 _________________________________________________
Target
< 3 µS/cm in routine operation
Manufacturer's specification:
5 - 8 bar
60 standard liters per minute
200 ml/min.
Actual
☐
☐
☐
☐
☐
☐
☐
☐
☐
☐
Page 1 of 4
D 3708
66 79 893
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Dentsply Sirona DAC Universal
Summary of Contents for Dentsply Sirona DAC Universal
- Page 1 Before use (on a patient), the spray function on the instrument must be tested. ☐ If reprocessing with the DAC Universal was interrupted by the user or the device itself, the process must be repeated, ☐ as it was not successfully completed.
- Page 2 The O-rings on the adapters must be checked regularly and replaced every 90 days. ☐ The drain filter could potentially be contaminated. ☐ Only the original NitraClean cleaning tablets may be used in the DAC Universal. ☐ If other cleaning tablets are used, there may be a risk of poisoning. Supply media Demonstration of replacement of the NitramOil #2 lubrication concentrate.
- Page 3 Designation delivered received Damaged quantity / quantity Yes/No standard DAC Universal (EU) 67 13 460 DAC Universal (CH) 67 47 567 6 adapters for Blue lid Diverse Scope of delivery: - Blue lid - Bottle of NitramOil #2 lubrication concentrate...
- Page 4 1. It is documented here whether the ordered articles have been delivered. 2. Any visible external damage on the articles is documented here. 3. Component of the "DAC Universal Touch User E-Guide" USB stick Confirmation of training Induction participant (name)
