Analog Peripherals
-
10-Bit ADC ('F330/2/4 only)
Up to 200 ksps
Up to 16 external single-ended or differential inputs
VREF from internal VREF, external pin or V
Internal or external start of conversion source
Built-in temperature sensor
-
10-Bit Current Output DAC ('F330 only)
-
Comparator
Programmable hysteresis and response time
Configurable as interrupt or reset source
Low current (0.4 µA)
On-Chip Debug
-
On-chip debug circuitry facilitates full speed, non-
intrusive in-system debug (no emulator required)
-
Provides breakpoints, single stepping,
inspect/modify memory and registers
-
Superior performance to emulation systems using
ICE-chips, target pods, and sockets
-
Low cost, complete development kit
Supply Voltage 2.7 to 3.6 V
-
Typical operating current: 6.4 mA at 25 MHz;
-
Typical stop mode current: 0.1 µA
Temperature Range: –40 to +85 °C
Rev. 1.7 12/10
DD
9 µA at 32 kHz

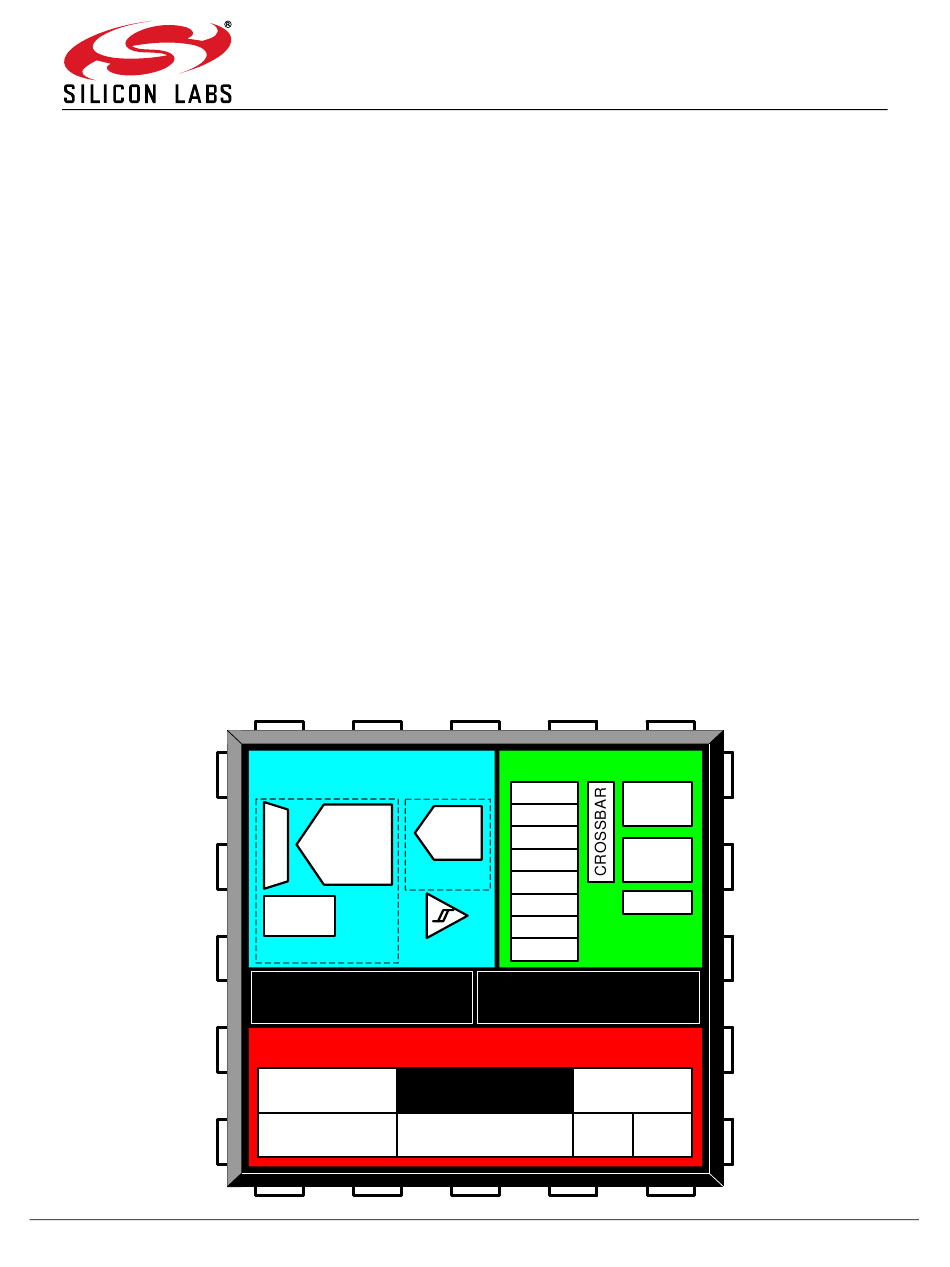

ANALOG
PERIPHERALS
10-bit
A
10-bit
Current
M
200 ksps
U
ADC
X
'F330 only
+
TEMP
SENSOR
-
VOLTAGE
'F330/2/4 only
COMPARATOR
24.5 MHz PRECISION
INTERNAL OSCILLATOR
HIGH-SPEED CONTROLLER CORE
2/4/8 kB
8051 CPU
ISP FLASH
(25 MIPS)
FLEXIBLE
INTERRUPTS
CIRCUITRY
Copyright © 2010 by Silicon Laboratories
C8051F330/1/2/3/4/5
Mixed-Signal ISP Flash MCU
High Speed 8051 µC Core
-
Pipelined instruction architecture; executes 70% of
instructions in 1 or 2 system clocks
-
Up to 25 MIPS throughput with 25 MHz clock
-
Expanded interrupt handler
Memory
-
768 bytes internal data RAM (256 + 512)
-
8 kB ('F330/1), 4 kB ('F332/3), or 2 kB ('F334/5)
Flash; In-system programmable in 512-byte Sec-
tors—512 bytes are reserved in the 8 kB devices
Digital Peripherals
-
17 Port I/O; All 5 V tolerant with high sink current
-
Hardware enhanced UART, SMBus™, and
enhanced SPI™ serial ports
-
Four general purpose 16-bit counter/timers
-
16-Bit programmable counter array (PCA) with three
capture/compare modules
-
Real time clock mode using PCA or timer and exter-
nal clock source
Clock Sources
-
Two internal oscillators:
24.5 MHz with ±2% accuracy supports crystal-less
UART operation
80/40/20/10 kHz low frequency, low power
-
External oscillator: Crystal, RC, C, or clock
(1 or 2 pin modes)
-
Can switch between clock sources on-the-fly; useful
in power saving modes
20-Pin QFN Package
DIGITAL I/O
UART
SMBus
SPI
DAC
PCA
Timer 0
Timer 1
Timer 2
Timer 3
LOW FREQUENCY INTERNAL
OSCILLATOR
768 B SRAM
DEBUG
POR
Port 0
Port 1
P2.0
WDT
C8051F330/1/2/3/4/5
