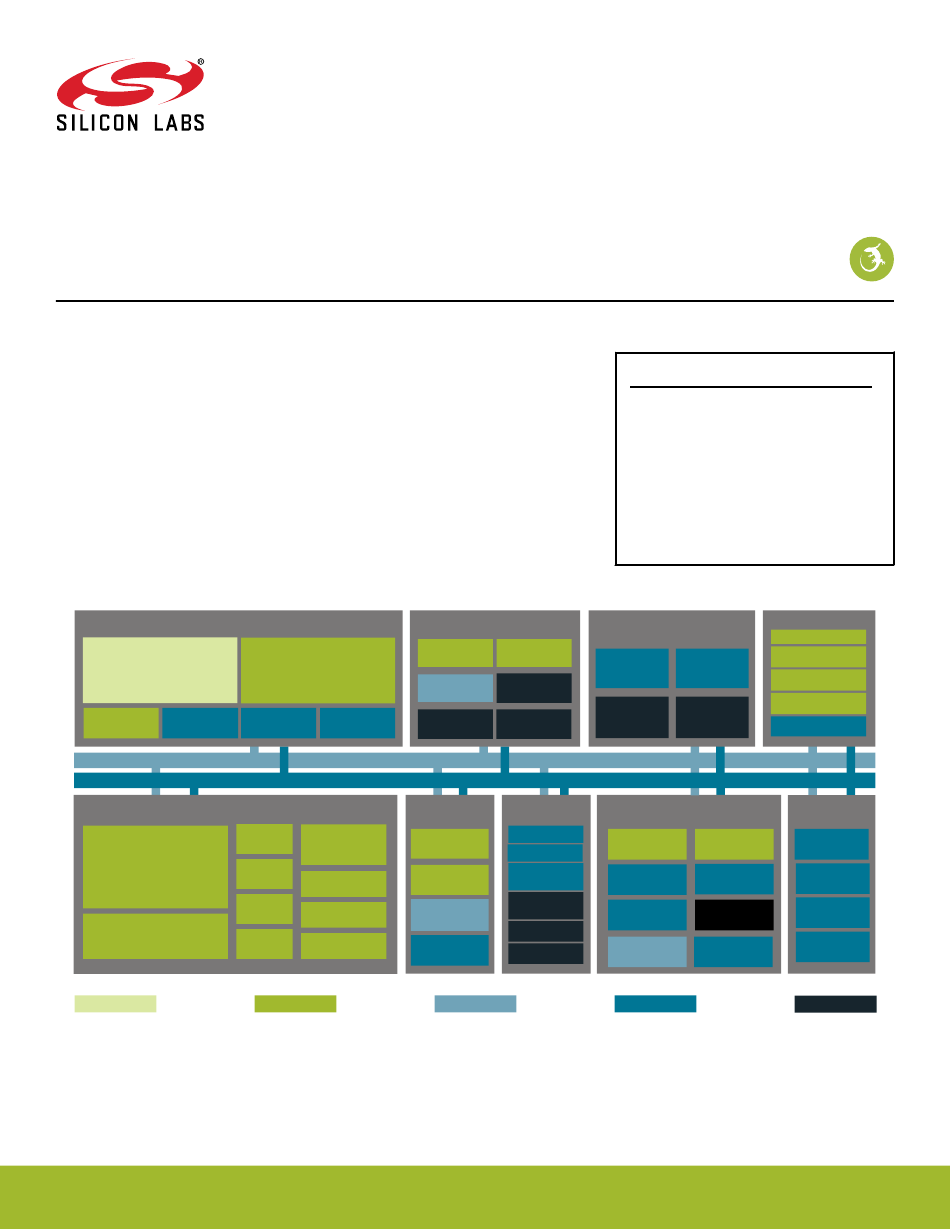

EFR32xG23 Wireless SoC

Reference Manual

The EFR32xG23 Wireless SoCs include the EFR32FG23 and EFR32ZG23 Wireless

SoC device families. The EFR32xG23 SoC is an ideal solution for sub-GHz "Internet of

Things" for smart home, security, lighting, building automation, and metering. The high-

performance sub-GHz radio provides long range and is not susceptible to 2.4 GHz inter-

ference from technologies like Wi-Fi.

The single die, multi-core solution, provides industry leading security, low power con-

sumption with fast wakeup times, and an integrated power amplifier, to enable the next

level of secure connectivity for IoT devices.

Core / Memory

ARM Cortex

TM

M33 processor

with DSP extensions,

FPU and TrustZone

ETM

Debug Interface

Radio Subsystem

RX/TX Frontend with

Integrated +14 or 20 dBm PA

Frequency Synthesizer

Lowest power mode with peripheral operational:

EM0—Active

silabs.com | Building a more connected world.

Flash Program Memory

LDMA

RAM Memory

Controller

Peripheral Reflex System

Interfaces

ARM Cortex

TM

DEMOD

M0+ Radio

Controller

IFADC

BUFC RAM

AGC

FRC

MOD

CRC

EM1—Sleep

Copyright © 2022 by Silicon Laboratories

Clock Management

HF Crystal

HF

Oscillator

RC Oscillator

LF

Fast Startup

RC Oscillator

RC Oscillator

LF Crystal

Ultra LF RC

Oscillator

Oscillator

32-bit bus

Serial

I/O Ports

LCD

USART

Keypad Scanner

External

EUSART

Interrupts

General

Purpose I/O

EUSART

Pin Reset

I

2

C

Pin Wakeup

EM2—Deep Sleep

KEY FEATURES

• 32-bit ARM® Cortex M33 core with 78

MHz maximum operating frequency

• Up to 512 kB of flash and 64 kB of RAM

• Energy-efficient radio core with low active

and sleep currents

• Integrated PA with up to 20 dBm transmit

power

• Robust peripheral set and up to 31 GPIO

Energy Management

Crypto Acceleration

Number Generator

Voltage

DC-DC

Regulator

Converter

Countermeasures

Secure Debug

Authentication

Power-On

Brown-Out

Reset

Detector

Secure Engine

Timers and Triggers

Timer/Counter

Protocol Timer

Low Energy Timer

Watchdog Timer

System Real Time

Back-Up Real

Counter

Time Counter

LESENSE

Pulse Counter

EM3—Stop

Security

True Random

DPA

Analog I/F

IADC

ACMP

VDAC

Temperature

Sensor

EM4—Shutoff

Rev. 1.0
