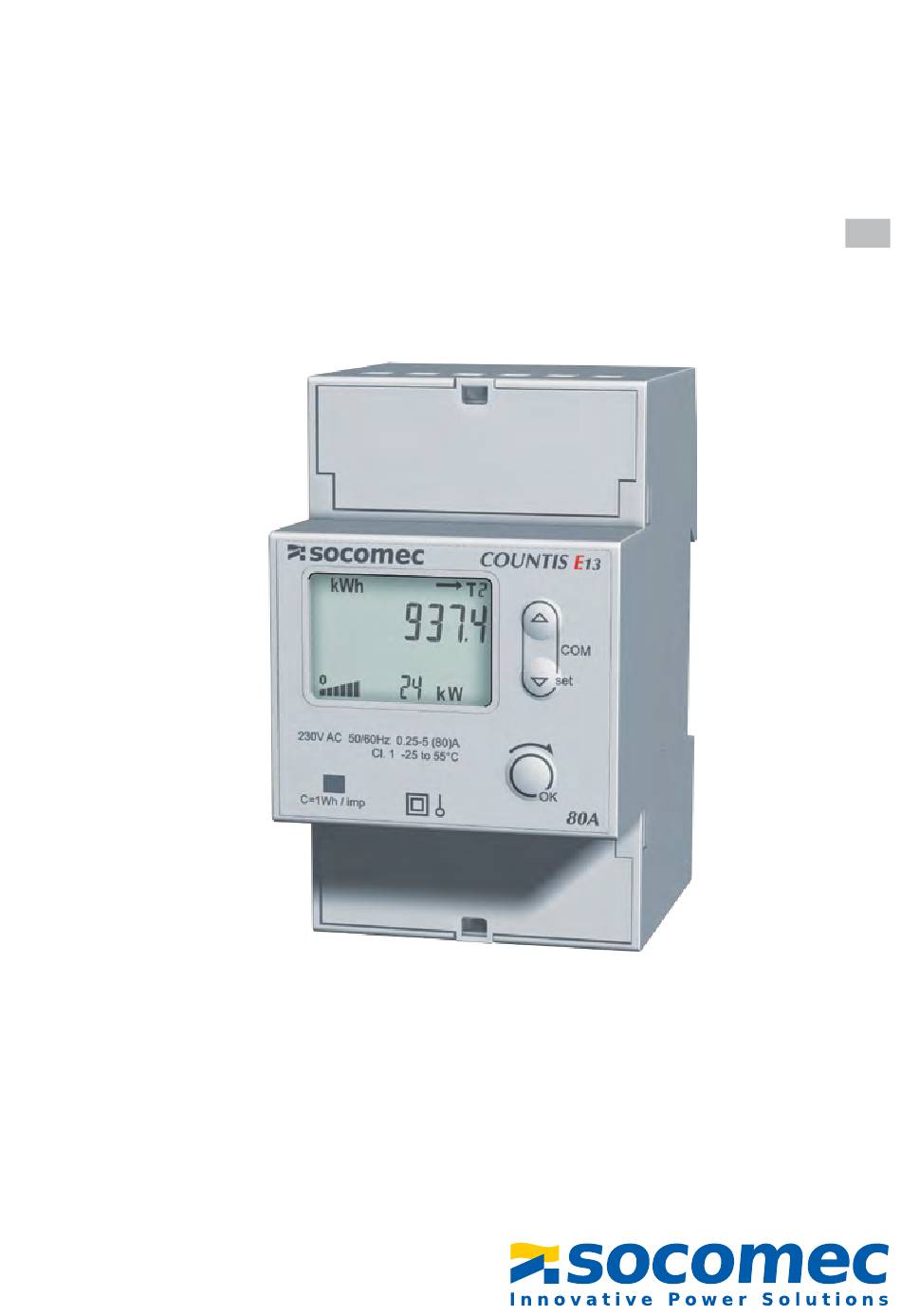

- Page 1 COUNTIS E13/E14 Single-phase active energy meter 80 A direct MODBUS Operating instructions...
-
Page 2: Table Of Contents
..............14 COUNTIS E13/E14 - Ref.: 542 101 A... -
Page 3: Documentation
3. Preliminary operations For personnel and product safety, please carefully read the contents of these operating instructions before installation. Check the following points as soon as you receive package containing the COUNTIS E13/E14: • the packaging is in good condition, • the product has not been damaged during transportation,... -
Page 4: Overview

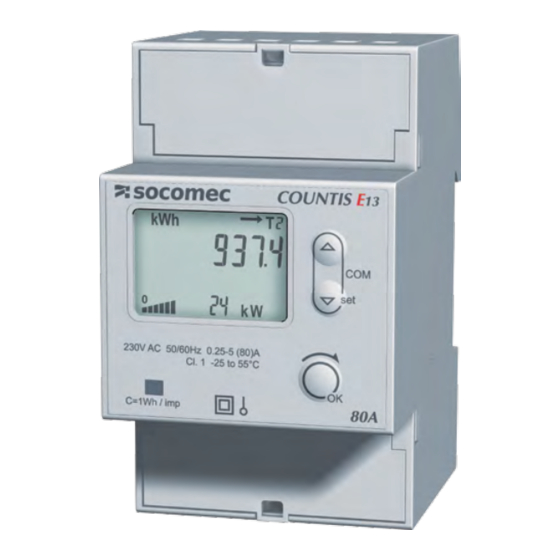

4. Overview COUNTIS E13 and E14 are active modular electrical energy meters for monitoring kWh. They are designed for single- phase networks and enable direct connection up to 80A. They are equipped with a MODBUS communication bus. 4.1. Main functions • Measurement and display:... -
Page 5: Installation
1 2 3 4 5.3. Terminals flexible 1.5 to 2.5 rigid 1 to 4 mm 1 2 3 4 0.35 in/9 mm 0.8 Nm flexible or rigid 7 to 50 mm 0.61 in/15.5 mm 2 Nm COUNTIS E13/E14 - Ref.: 542 101 A... -
Page 6: Connections
: Phase input. : Phase output. L’ Neutral connection. 230 VAC fn = 50 Hz 5.5. Sealable covers Plastic seal COUNTIS E14 MID Label scaled between front and rear faces Terminal covers COUNTIS E13/E14 - Ref.: 542 101 A... -
Page 7: Modbus Communication
1 byte 1 byte 2 bytes 2 bytes 2 bytes 6.4. Communication table The communication tables and associated explanations are available on the COUNTIS E13/E14 documentation page online at the following address: www.socomec.com/en/countis-e1x COUNTIS E13/E14 - Ref.: 542 101 A... -
Page 8: Programming
> 4 sec 7.2. Programming menu overview By pressing for 4 seconds, the device will enter the programming mode. The various screens are accessible according to the sequence: Programming mode Address Communication speed COUNTIS E13/E14 - Ref.: 542 101 A... -
Page 9: Detailed View Of Modbus Programming Menu
COUNTIS E13/E14 MODBUS 7.3. Detailed view of MODBUS programming menu x 10 Address Communication speed COUNTIS E13/E14 - Ref.: 542 101 A... -
Page 10: Operation
Tariff T2 Er+ (kvarh)/Q+ (kvar) ______________ Tariff T2 Er- (kvarh)/Q- (kvar) ______________ MODBUS address ______________ Communication speed Note : P (kW) and Q (kvar) power values are only displayed for the current tariff. COUNTIS E13/E14 - Ref.: 542 101 A... -
Page 11: Detailed View Of Menus
Er- (kVarh) Tariff T1 Ea+ (kWh) Tariff T2 Ea- (kWh) Tariff T2 Er+ (kVarh) Tariff T2 Er- (kVarh) Tariff T2 P (kW) Q (kvar) power values are only displayed for the current tariff MODBUS COUNTIS E13/E14 - Ref.: 542 101 A... -
Page 12: Diagnostic Message
9. Diagnostic message • When these messages are displayed, the meter has malfunctioned and should be replaced. 10. Assistance Causes Solutions Error message Check that the meter is working correctly COUNTIS E13/E14 - Ref.: 542 101 A... -
Page 13: Technical/Electrical Characteristics
Operating temperature -25 ... +55°C Storage temperature -25 ... +70°C Relative humidity ≤ 80% Amplitude of 50 Hz vibrations ±0.075 mm IP rating IP51(*)/IP20 (*) For installation in an enclosure with at least IP51 protection. COUNTIS E13/E14 - Ref.: 542 101 A... -
Page 14: Mid Compliance
The information given via the communication bus is only sent by way of information and has no legal value. T he assigned operating conditions guaranteeing MID compliance are available in the technical specifications tables. The MID declaration of conformity for the COUNTIS E14 is available online at: www.socomec.com/en/countis-e1x COUNTIS E13/E14 - Ref.: 542 101 A... - Page 15 COUNTIS E13/E14 MODBUS COUNTIS E13/E14 - Ref.: 542 101 A...
- Page 16 Fax +48 91 442 64 19 info.scp.pl@socomec.com hEAd offICE YoUR dISTRIBUToR SOCOMEC GROUP S.A. SOCOMEC capital 10 816 800€ R.C.S. Strasbourg B 548 500 149 B.P. 60010 - 1, rue de Westhouse F-67235 Benfeld Cedex - FRANCE Tel. +33 3 88 57 41 41 Fax +33 3 88 74 08 00 info.scp.isd@socomec.com...
