Summary of Contents for socomec COUNTIS E05

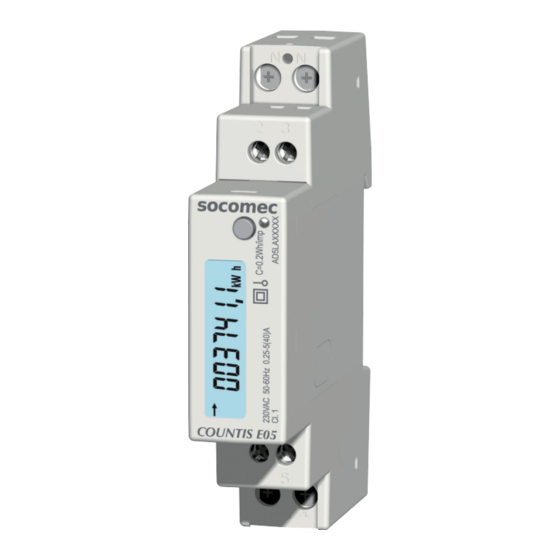

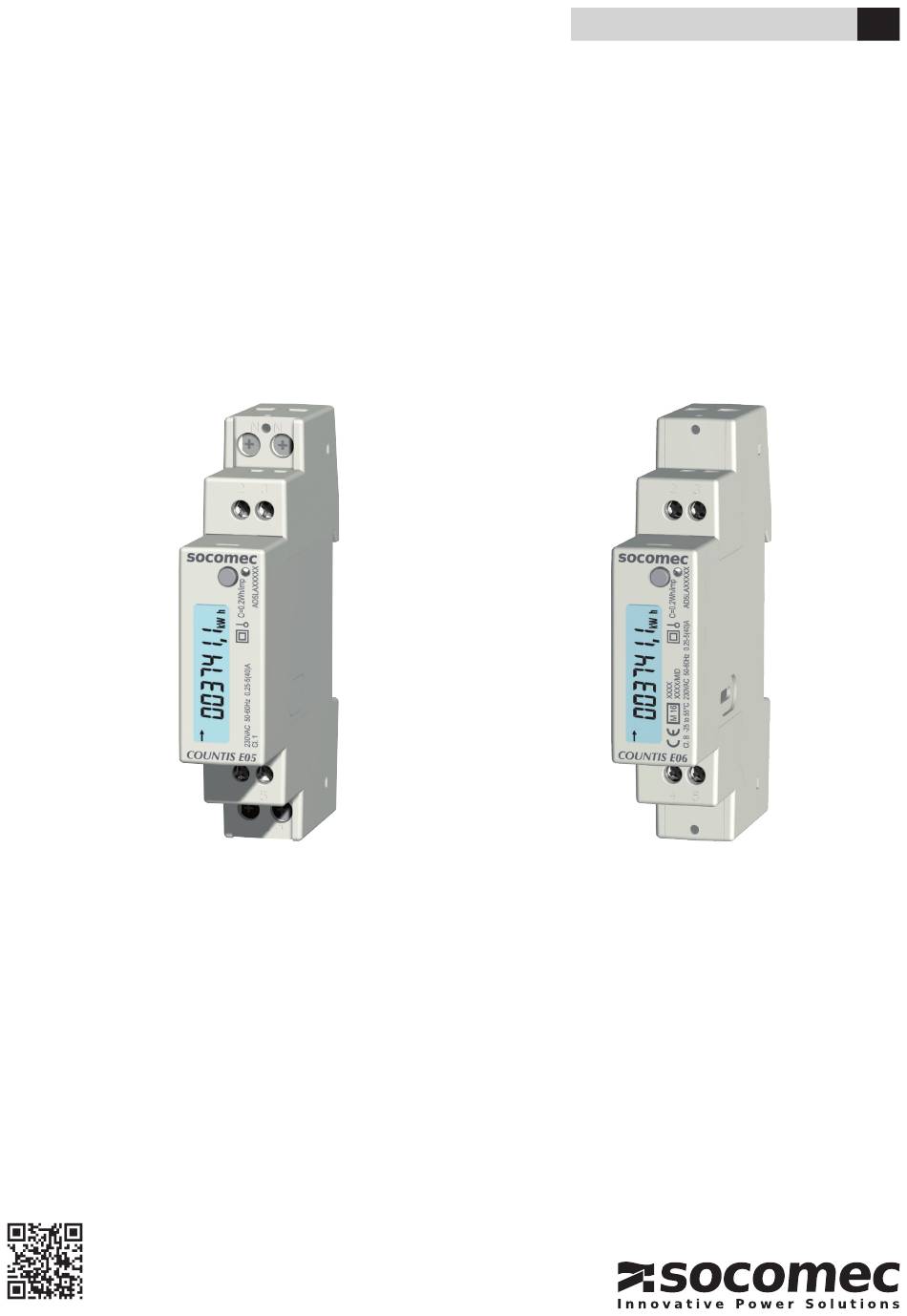

- Page 1 INSTRUCTION MANUAL COUNTIS E05/E06 Single-phase energy meter Direct - 40 A M-BUS COUNTIS E05 COUNTIS E06 - MID www.socomec.com/en/countis-e0x...
-
Page 2: Table Of Contents
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 4 .1 . Introducing the COUNTIS E05 / E 06 . -
Page 3: Documentation
1. DOCUMENTATION All documentation on the COUNTIS E05 / E06 is available online at: www.socomec.com/en/countis-e0x COUNTIS E05/E06 - 545867A - SOCOMEC... -
Page 4: Hazards And Warnings
2. HAZARDS AND WARNINGS The term "device" used in the paragraphs below refers to the COUNTIS E05 / E 06. The assembly, use, servicing and maintenance of this equipment must only be carried out by trained, qualified professionals. SOCOMEC shall not be held responsible for failure to comply with the instructions in this manual. -
Page 5: Preliminary Operations
• The unit has not been damaged during transportation • The device reference number conforms to your order • The package includes: - 1 device - 1 sealing kit (for COUNTIS E06) - 1 Quick Start guide COUNTIS E05/E06 - 545867A - SOCOMEC... -
Page 6: Introduction
4.1. Introducing the COUNTIS E05 / E 06 The COUNTIS E05 and E06 are modular active and reactive electrical energy meters that display consumed energy. They are designed for single-phase networks and allow a direct connection of up to 40 A. They are equipped with an M-BUS communication Bus. -
Page 7: Lcd Display
5. Value of the partial meter Flashing = meter stopped 6. Active communication 7. Inductive value 8. Imported ( ) or exported ( ) energy or power 9. Capacitive value 10. Unit of measure 4.5. Dimensions Dimensions: in/mm 0.71 0.24 1.73 2.52 COUNTIS E05/E06 - 545867A - SOCOMEC... -
Page 8: Electrical Readings
● ● (T1/T2) Partial active and reactive energy Ea, Er kWh, kvarh ● ● Miscellaneous Current tariff ● ● Partial meters START/STOP ● Active / inac- State of the pulse output ● ● tive COUNTIS E05/E06 - 545867A - SOCOMEC... -
Page 9: Installation
• Avoid vibrations with accelerations greater than 1 g for frequencies lower than 60 Hz. 5.2. DIN rail mounting The COUNTIS E05/E06 can be mounted on a 35-mm DIN rail (EN 60715TM35). They must be used inside electrical cabinets. COUNTIS E05/E06 - 545867A - SOCOMEC... -
Page 10: Connection
10.62 lb.in / 4.5 lb.in / 0.5 Nm max. 1.2 Nm max. 6.2. Connection to the electrical network and to the loads The COUNTIS E05/E06 are intended for single-phase networks with neutral. M-BUS M-Bus 2-3: M-Bus connection Pulse output 4: -... -
Page 11: Mid Compliance
The information provided via the M-BUS COM is transmitted for information only and has no legal value. • MID Declaration of Conformity The MID Declaration of Conformity is available on the website: www.socomec.com/en/countis-e0x safety sealing COUNTIS E05/E06 - 545867A - SOCOMEC... -
Page 12: Communication
2 primary and secondary addressing modes. You can configure the primary and secondary addressing modes via the device's interface. 8.4. Communication tables The communication tables and relevant notes are available online on the COUNTIS E05 / E06 documentation page at: www.socomec.com/en/countis-e0x COUNTIS E05/E06 - 545867A - SOCOMEC... -
Page 13: Configuration
9. CONFIGURATION The device can be configured directly from the COUNTIS E05 / E06 screen in programming mode or via the communication link. The paragraphs below describe configuring using the screen. 9.1. Onscreen configuration From the screen, go to programming mode to change your communication settings. How to browse through the... -
Page 14: View Of The Entire "Setup" Menu
" to go to the different screens: >3s Primary M-BUS address Secondary M-BUS address Communication speed Reset partial energy to zero: Ea+ partial (kWh) Ea- partial (kWh) Er+ partial (kVarh) Back to first screen of "SETUP" menu COUNTIS E05/E06 - 545867A - SOCOMEC... -
Page 15: Detailed View Of Menu "Setup
0, 1 ..., 99999998, 99999999 (the address is specific to each device) Baudrate 300, 2400, 9600 Reset energy Ea+ partial; Ea- partial; Er+ partial; Back to first screen of "SETUP" menu XX = default value COUNTIS E05/E06 - 545867A - SOCOMEC... -
Page 16: Example: Setting The Communication Address
In "SETUP" mode (see page 15), go to the "Primary M-BUS address" screen Example: changing the communication address to 243. >3 >3 >3 >3 >3 Secondary M-BUS address Communication speed Reset partial energy to zero COUNTIS E05/E06 - 545867A - SOCOMEC... -
Page 17: Use
Total imported reactive > 3 sec reactive energy energy ______________ Active and reactive power ______________ Voltage ______________ Current ______________ Power factor ______________ Frequency ______________ Setup? ______________ Firmware version ______________ Checksum of firmware ______________ Communication port installed COUNTIS E05/E06 - 545867A - SOCOMEC... -
Page 18: Detailed View Of The "Main" Menu
10 .1 .1 Total exported active energy Firmware version description in chapter 10 .1 .1 Total imported reactive energy Checksum of firmware description in chapter 10 .1 .1 Active power Communication port installed Reactive power COUNTIS E05/E06 - 545867A - SOCOMEC... -
Page 19: Detailed View Of The Partial Energy Meter
10 .1 .2 . Starting up the partial energy meter > 3 sec > 3 sec > 3 sec 10 .1 .3 . Stopping the partial energy meter > 3 sec > 3 sec > 3 sec COUNTIS E05/E06 - 545867A - SOCOMEC... -
Page 20: Resetting The Partial Energy Meter To Zero
10 .1 .4 . Resetting the partial energy meter to zero > 3 sec > 3 sec COUNTIS E05/E06 - 545867A - SOCOMEC... -
Page 21: Diagnostics Messages
• If you see this message, Code xx, the meter has malfunctioned and must be replaced. 12. ASSISTANCE Causes Solutions Device not working Check the neutral and phase cable connections Error message Check the meter is working OK COUNTIS E05/E06 - 545867A - SOCOMEC... -
Page 22: Characteristics
Total and partial reading MID metering Bidirectional with single-phase Resolution 10 Wh, 10 varh ENERGY ACCURACY Class B (EN 50470-3) E16 Active energy Ea+ Class 1 (EN 62053-21) Reactive energy Er+ Class 2 (EN 62053-23) COUNTIS E05/E06 - 545867A - SOCOMEC... - Page 23 300, 2400, 9600 bps Load unit SAVING Energy registers In FRAM memory ENVIRONMENTAL CONDITIONS Mechanical environment Electromagnetic environment Operating temperature range -25°C to +55°C Storage temperature -25°C to 75°C Humidity ≤ 80% Installation Internal (box/cabinet) Vibrations ±0.075 mm COUNTIS E05/E06 - 545867A - SOCOMEC...
- Page 24 Modular - width of 2 modules (DIN 43880) 18 x 90 x 70 Installation On DIN rail (EN 60715) Connection capacity, tightening torque See chapter "6. Connection", page 10 Protection index Front: IP51 - casing: IP20 Insulation class Class II (EN 50470-1) Weight 80 g COUNTIS E05/E06 - 545867A - SOCOMEC...
-
Page 25: Glossary Of Abbreviations
Setup menu Prl Primary M-BUS address SEC. Secondary M-BUS address Communication speed in bauds (bits per second) rES ALL Reset partial energy SAVE? Confirm selection Save and exit Exit without saving Continue without saving COUNTIS E05/E06 - 545867A - SOCOMEC... - Page 26 CORPORATE HQ CONTACT: SOCOMEC SAS 1-4 RUE DE WESTHOUSE 67235 BENFELD, FRANCE www.socomec.com 545867A...
