Vecow SEC-2000 Series User Manual

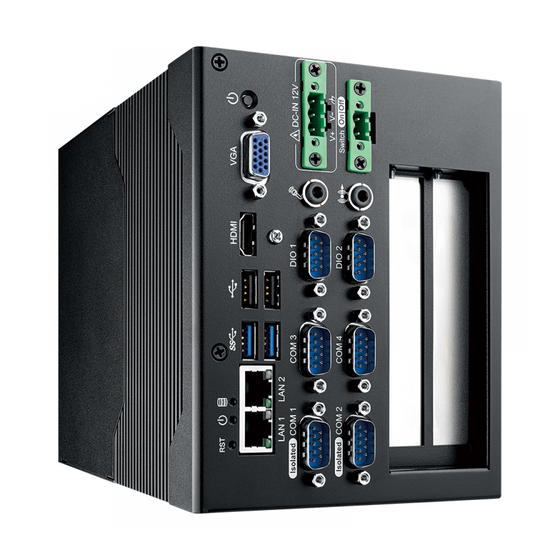

Intel atom x7-e3950 (apollo lake) expandable fanless system, isolated com, pci/pcie slots, -40 c to 75 c operation
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
SEC-2000
Intel Atom
®
x7-E3950 (Apollo Lake) Expandable Fanless System,
Isolated COM, PCI/PCIe Slots, -40°C to 75°C Operation
USER
USER
Manual
Manual
1.1.0 Edition 20190314

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SEC-2000 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Vecow SEC-2000 Series

Summary of Contents for Vecow SEC-2000 Series

  • Page 1 USER USER SEC-2000 Manual Manual Intel Atom ® x7-E3950 (Apollo Lake) Expandable Fanless System, Isolated COM, PCI/PCIe Slots, -40°C to 75°C Operation 1.1.0 Edition 20190314...
  • Page 2 Record of Revision Version Date Page Description Remark 0.10 02/27/2019 Preliminary Release 1.00 03/05/2019 Official Release 1.10 03/14/2019 2, 4, 13, 18, 19, 22 Update ©Vecow SEC-2000 User Manual...
  • Page 3 This manual is released by Vecow Co., Ltd. for reference purpose only. All product offerings and specifications are subject to change without prior notice. It does not represent commitment of Vecow Co., Ltd. Vecow shall not be liable for direct, indirect, special, incidental, or consequential damages arising out of the use of the product;...
  • Page 4 120W, 12V, 90V AC to 264V AC Power Adapter with 3-pin PWA-120W-12V Terminal Block 4G Module Mini PCIe 4G/GPS Module with Antenna WiFi & Bluetooth WiFi & Bluetooth Module with Antenna FAN Module Non-Adjustable Fan Module for SEC Series ©Vecow SEC-2000 User Manual...

  • Page 5: Table Of Contents

    1.3 Product Specification 1.3.1 Specifications of SEC-2220 1.3.2 Specifications of SEC-2211 1.4 Mechanical Dimension 1.4.1 Dimensions of SEC-2000 series CHAPTER 2 GETTING TO KNOW YOUR SEC-2000 2.1 Packing List for SEC-2000 2.2 Front Panel I/O & Functions 2.3 Main Board Expansion Connectors 2.4 Main Board Jumper Settings...
  • Page 6 4.5 Security 4.6 Boot 4.7 Save & Exit APPENDIX A : GPIO Guide APPENDIX B : Software Functions APPENDIX C : RAID Functions APPENDIX D : Power Consumption APPENDIX E : Supported Memory & Storage List ©Vecow SEC-2000 User Manual...

  • Page 7: Chapter 1 General Introduction

    Advanced Intel HD graphics 505 supports DirectX 12, OpenGL 4.3 and OpenCL 2.1 API, up to 4K resolution; Vecow SEC-2000 delivers more than 150% system performance improved and up to 300% graphics performance enhanced than the embedded engine powered by the former generation Intel ®...

  • Page 8: Features

    1 Internal SIM socket Expansion 2 Mini PCIe sockets : Mini PCIe • 1 Mini PCIe for PCIe/USB/SIM card • 1 Mini PCIe for PCIe/USB/Optional mSATA PCI/PCIe 2 PCIe x16 slot (PCIe x1 signal supported) ©Vecow SEC-2000 User Manual GENERAL INTRODUCTION...
  • Page 9 Relative Humidity 95% at 85°C • IEC 60068-2-27 Shock • SSD : 50G @ wallmount, Half-sine, 11ms • IEC 60068-2-64 Vibration • SSD : 5Grms, 5Hz to 500Hz, 3 Axis CE, FCC, EN50155, EN50121-3-2 ©Vecow SEC-2000 User Manual GENERAL INTRODUCTION...

  • Page 10: Specifications Of Sec-2211

    I210 GigE LAN supports IEEE 1588 ® LAN 2 Intel I210 GigE LAN supports IEEE 1588 Power Power Input Single 12V DC power input Power Interface 3-pin Terminal Block : V+, V-, Frame Ground Remote Switch 2-pin Terminal Block ©Vecow SEC-2000 User Manual GENERAL INTRODUCTION...

  • Page 11: Mechanical Dimension

    • SSD : 50G @ wallmount, Half-sine, 11ms • IEC 60068-2-64 Vibration • SSD : 5Grms, 5Hz to 500Hz, 3 Axis CE, FCC, EN50155, EN50121-3-2 1.4 Mechanical Dimension 1.4.1 Dimensions of SEC-2000 series 175.0 (6.89”) 155.0 (6.10”) 125.0 (4.92”) Unit : mm (inch) 5.0 (0.20”) A Detail 125.0 (4.92”)

  • Page 12: Chapter 2 Getting To Know Your Sec-2000

    GETTING TO KNOW YOUR SEC-2000 2.1 Packing List for SEC-2000 Item Description SEC-2220/2211 Embedded System SEC-2000 accessory box, which contains • Vecow Drivers & Utilities DVD • Wall-mounting bracket • Foot Pad • Screws & Terminal block (Below) Item Description...

  • Page 13: Front Panel I/O & Functions

    2.2 Front Panel I/O & Functions In Vecow's SEC-2000 series family, all I/O connectors are located on the front panel, such as audio, USB, VGA, HDMI, and serial ports. 2.2.1 SEC-2000 Front I/O & Functions HDMI LAN 1 LAN 2...
  • Page 14 LED Color Indication System Status • On/Off : Storage status, function or not. Orange • Twinkling : Data transferring. Green Power System power status (on/off) ©Vecow SEC-2000 User Manual GETTING TO KNOW YOUR SEC-2000...
  • Page 15 DC-IN 12V COM 2 COM 4 DIO 2 Isolated Switch On | Off Onboard HDMI Port supports DDC channel mode. The connection supports up to 3840 x 2160 resolution at 30Hz. ©Vecow SEC-2000 User Manual GETTING TO KNOW YOUR SEC-2000...
  • Page 16 There are 2 USB 3.0 connections available supporting up to 5GB per second data rate. It is also compliant with the requirements of Super Speed (SS), High Speed (HS), Full Speed (FS) and Low Speed (LS). ©Vecow SEC-2000 User Manual GETTING TO KNOW YOUR SEC-2000...
  • Page 17 Ethernet connection; for example, a hub or a switch. Moreover, both LAN 1 and LAN 2 support Wake on LAN and Pre-boot functions. The pinouts of LAN 1 and LAN 2 are listed as follows : ©Vecow SEC-2000 User Manual GETTING TO KNOW YOUR SEC-2000...
  • Page 18 RS-422 or RS-485, you can find the setting in BIOS. BIOS Setting Function RS-232 RS-422 (5-wire) COM 1, 2 (Isolated) RS-422 (9-wire) COM 3, 4 RS-485 RS-485 w/z auto-flow control ©Vecow SEC-2000 User Manual GETTING TO KNOW YOUR SEC-2000...
  • Page 19 DIO1 and DIO2 Pin define are as below. Pin No. DIO1 Definition DIO2 Definition SIO_GPO70 SIO_GPI80 SIO_GPO71 SIO_GPI81 SIO_GPO72 SIO_GPI82 SIO_GPO73 SIO_GPI83 SIO_GPO74 SIO_GPI84 SIO_GPO75 SIO_GPI85 SIO_GPO76 SIO_GPI86 SIO_GPO77 SIO_GPI87 ©Vecow SEC-2000 User Manual GETTING TO KNOW YOUR SEC-2000...
  • Page 20 You could turn on or off the system power by using this contact. This terminal block supports dual function of power-on/power-off (instant off or delay 4 second), and suspend modes. ©Vecow SEC-2000 User Manual GETTING TO KNOW YOUR SEC-2000...

  • Page 21: Main Board Expansion Connectors

    2.3 Main Board Expansion Connectors 2.3.1 SEC-2000 Main Board Pin Header Location CON1 CN18 CPU_FAN1 CN 15 CN 13 CN 16 CN14 SO-DIMM1 JDIO1 JPS2 JUSB1 JDIO2 VGA2 JHDD1 CN10 CN12 CN11 JPWBTN1 JRESET1 JSTATUS1 ©Vecow SEC-2000 User Manual GETTING TO KNOW YOUR SEC-2000...
  • Page 22 Panasonic BR2032 190mAh lithium battery. It is recommended that you should not replace the lithium battery on your own. If the battery needs to be changed, please contact the Vecow RMA service team. ©Vecow SEC-2000 User Manual GETTING TO KNOW YOUR SEC-2000...
  • Page 23 10-pin connector on one end and a USB connector on the other. The pin assignments of JUSB1 are listed in the following table : Pin No. Definition Pin No. Definition USB_VCC USB_VCC USB_VCC USB_D_4N USB_D_4P USB_D_5N USB_D_5P ©Vecow SEC-2000 User Manual GETTING TO KNOW YOUR SEC-2000...
  • Page 24 Mini PCIe function. The pin assignments of CN15 and JP5 are listed in the following table : Pin No. Function 1-3/2-4 mSATA Mini PCIe (Default) CN15 Pin No. Signal Name Pin No. Signal Name Reserved +3.3Vaux Reserved Reserved +1.5V ©Vecow SEC-2000 User Manual GETTING TO KNOW YOUR SEC-2000...
  • Page 25 Reserved +3.3Vaux USB_D+ USB_D- PETp0 PETn0 SMB_DATA SMB_CLK +1.5V PERp0 PERn0 +3.3Vaux PERST# Reserved reserved Reserved Mechanical Key UIM_VPP REFCLK+ UIM_RESET REFCLK- UIM_CLK UIM_DATA CLKREQ# UIM_PWR Reserved 1.5V Reserved WAKE# 3.3Vaux ©Vecow SEC-2000 User Manual GETTING TO KNOW YOUR SEC-2000...
  • Page 26 Signal Name Pin No. Signal Name Reserved +3.3Vaux Reserved Reserved +1.5V Reserved Reserved Reserved +3.3Vaux Reserved +3.3Vaux USB_D+ USB_D- PETp0 PETn0 SMB_DATA SMB_CLK +1.5V PERp0 PERn0 +3.3Vaux PERST# Reserved Reserved Reserved ©Vecow SEC-2000 User Manual GETTING TO KNOW YOUR SEC-2000...
  • Page 27 If you want to change to RS-422 or RS-485, you can find the setting in BIOS. BIOS Setting Function RS-232 RS-422 (5-wire) COM 1 (CN6) (Isolated) COM 2 (CN7) (Isolated) RS-422 (9-wire) COM 3 (CN8) COM 4 (CN9) RS-485 RS-485 w/z auto-flow control ©Vecow SEC-2000 User Manual GETTING TO KNOW YOUR SEC-2000...
  • Page 28 The pin assignments of VGA are listed in the following table : Pin No. Signal Name Pin No. Signal Name Green Blue DDC Data Horizontal Sync Vertical Sync DDC Clock ©Vecow SEC-2000 User Manual GETTING TO KNOW YOUR SEC-2000...
  • Page 29 There are 2 USB 3.0 connections available supporting up to 5GB per second data rate. It is also compliant with the requirements of Super Speed (SS), High Speed (HS), Full Speed (FS) and Low Speed (LS). ©Vecow SEC-2000 User Manual GETTING TO KNOW YOUR SEC-2000...
  • Page 30 1000Mbps Ethernet network; The left LED will keep twinkling/off when Ethernet data packets are being transmitted/received. LED Location LED Color 10Mbps 100Mbps 1000Mbps Green/ Solid Solid Right Orange Green Orange Twinkling Twinkling Twinkling Left Yellow Yellow Yellow Yellow ©Vecow SEC-2000 User Manual GETTING TO KNOW YOUR SEC-2000...
  • Page 31 Pin No. Signal Name Pin No. Signal Name PANEL_VDD TXO0- PANEL_VDD TXO0+ PANEL_VDD TXO1- TXO1+ TXO2- TXO2+ TXOC- TXOC+ TXO3- TXO3+ TXE0- TXE0+ TXE1- TXE1+ TXE2- TXE2+ TXEC- TXEC+ TXE3- LVDS_DET# TXE3+ ©Vecow SEC-2000 User Manual GETTING TO KNOW YOUR SEC-2000...
  • Page 32 +12V +12V LBKLT_CTL LBKLT_EN 2.3.14 CN18 : Power Input CN18 SEC-2000 supports 12V DC power input by wire-to-board connector on the top side. Pin No. Definition Pin No. Definition +12V +12V ©Vecow SEC-2000 User Manual GETTING TO KNOW YOUR SEC-2000...
  • Page 33 (Up to 2A) and 12V (Up to 1A) current to the hard drive or SSD. The pin assignments of J1 is listed in the following table : Pin No. Signal Name Pin No. Signal Name +12V ©Vecow SEC-2000 User Manual GETTING TO KNOW YOUR SEC-2000...
  • Page 34 : Pin No. Signal Name Pin No. Signal Name P3V3 P3V3 P3V3 P3V3 P3V3 P3V3 S_SMB_CLK S_SMB_DAT +12V_EN_R P3V3_A BUF_PLTRST_N_A PCIE_WAKE CLK_PCIe GF1_DP CLK_PCIe GF1_DN PCIE_TXP4 PCIE_TXN4 PCIE_RXP4 PCIE_RXN4 ©Vecow SEC-2000 User Manual GETTING TO KNOW YOUR SEC-2000...
  • Page 35 Signal Name Pin No. Signal Name PCIE_TXP5 PCIE_TXN5 PCIE_RXP5 PCIE_RXN5 CLK_PCIe GF2_DP CLK_PCIe GF2_DN P3V3 P3V3 P3V3 P3V3 P3V3 P3V3 USB_D_7P USB_D_6P USB_D_7N USB_D_6N P12V P12V P12V P12V P12V P12V P12V ©Vecow SEC-2000 User Manual GETTING TO KNOW YOUR SEC-2000...
  • Page 36 Signal Name Pin No. Signal Name +12V FAN_TAC FAN_CTL 2.3.19 JPS2 : PS/2 Mouse Keyboard Pin Head JPS2 Pin No. Signal Name Pin No. Signal Name SIO_MCLK SIO_MDAT SIO_KCLK SIO_KDAT VCC5_KBMS ©Vecow SEC-2000 User Manual GETTING TO KNOW YOUR SEC-2000...
  • Page 37 JDIO1 and JDIO2 Pin define are as below. Pin No. JDIO1 Definition JDIO2 Definition SIO_GPO70 SIO_GPI80 SIO_GPO71 SIO_GPI81 SIO_GPO72 SIO_GPI82 SIO_GPO73 SIO_GPI83 SIO_GPO74 SIO_GPI84 SIO_GPO75 SIO_GPI85 SIO_GPO76 SIO_GPI86 SIO_GPO77 SIO_GPI87 +3.3V +3.3V ©Vecow SEC-2000 User Manual GETTING TO KNOW YOUR SEC-2000...
  • Page 38 If it is off, it indicates that the system's storage is not functional. If it is flashing, it indicates data access activities. LED Color Indication System Status On/Off : Storage status, function or not. Orange Twinkling : Data transferring. Green Power System power status (On/Off) ©Vecow SEC-2000 User Manual GETTING TO KNOW YOUR SEC-2000...
  • Page 39 It is a hardware reset switch. Use this switch to reset the system without power off the system. Press the Reset Switch for a few seconds, and then reset will be enabled. ©Vecow SEC-2000 User Manual GETTING TO KNOW YOUR SEC-2000...

  • Page 40: Main Board Jumper Settings

    JP3 provides LVDS voltage selection function, closing Pin 1, 2 is for 3.3V LVDS power input; closing Pin 2, 3 is for 5V LVDS power input. Pin No. Function +3.3V (Default) ©Vecow SEC-2000 User Manual GETTING TO KNOW YOUR SEC-2000...
  • Page 41 2.4.5 JP2 : Backlight Control Level Select JP2 provides LVDS backlight control selection function, closing Pin 1, 2 is for 3.3V and closing Pin 2, 3 is for 5V Pin No. Function +3.3V (Default) ©Vecow SEC-2000 User Manual GETTING TO KNOW YOUR SEC-2000...
  • Page 42 Pin No. Function +5V Standby Power (Default) +5V System Power 2.4.7 JP7 : GPI Signal Pull High Power Rail Select Pin No. SIO_GPI80 to SIO_GPI87 Pull high to P3V3_A (Default) Hi-Z ©Vecow SEC-2000 User Manual GETTING TO KNOW YOUR SEC-2000...

  • Page 43: Chapter 3 Setup

    SETUP 3.1 How to Open Your SEC-2000 Step 1 Please place your SEC-2000 like this. Step 2 Remove eight PHILLIPS M3 screws. ©Vecow SEC-2000 User Manual SETUP...
  • Page 44 Step 3 Please place the system like below image. Step 4 Remove six PHILLIPS M3 screws. Step 5 Finish. ©Vecow SEC-2000 User Manual SETUP...

  • Page 45: Installing Ddr3L Module

    3.2 Installing DDR3L Module Step 1 Find DDR3L SO-DIMM socket. (Note : only Non-ECC supported) Step 2 Install DDR3L RAM module Step 3 Finished. into SO-DIMM socket. ©Vecow SEC-2000 User Manual SETUP...

  • Page 46: Installing Mini Pcie Card

    3.3 Installing Mini PCIe Card Step 1 Find Mini PCIe socket. Step 2 Install Mini PCIe card into Step 3 Fasten a PHILLIPS M2.5 socket. screw. ©Vecow SEC-2000 User Manual SETUP...

  • Page 47: Installing Antenna Cable

    3.4 Installing Antenna Cable Step 1 Check antenna cable, washer and nut. Step 2 Install antenna cable and then fasten washer and nut. ©Vecow SEC-2000 User Manual SETUP...

  • Page 48: Installing Sim Card

    3.5 Installing SIM Card Step 1 Push SIM card slot cover to open. Step 2 Open situation. ©Vecow SEC-2000 User Manual SETUP...
  • Page 49 Step 3 Install SIM card and close the cover. Step 4 Finish. ©Vecow SEC-2000 User Manual SETUP...

  • Page 50: Installing Ssd/Hdd

    3.6 Installing SSD/HDD Step 1 Remove one PHILLIPS M3x6L screw and SSD/HDD bracket. Step 2 Remove SSD/HDD bracket. ©Vecow SEC-2000 User Manual SETUP...
  • Page 51 Step 3 Fasten four PHILLPIS M3x6L screws. Step 4 Connect SATA cable and SATA power cable to SSD/HDD. ©Vecow SEC-2000 User Manual SETUP...
  • Page 52 Step 5 Finish connect cable and install bracket with latch. Step 6 Install the bracket and then fasten one PHILLIPS M3x6L screw. ©Vecow SEC-2000 User Manual SETUP...

  • Page 53: Installing Pci/Pcie Card

    3.7 Installing PCI/PCIe Card Step 1 Remove one PHILLIPS M3 screw. Step 2 Install PCI/PCIe Card with slot. Step 3 Fasten one PHILLIPS M3 screw. ©Vecow SEC-2000 User Manual SETUP...

  • Page 54: Mounting Your Sec-2000

    3.8 Mounting Your SEC-2000 3.8.1 Wall Mount Fasten four PHILLIPS M3 screws. ©Vecow SEC-2000 User Manual SETUP...
  • Page 55 Figure 4-1 : Entering Setup Screen BIOS provides an interface for users to check and change system configuration. The BIOS setup program is accessed by pressing the <Del> key when POST display output is shown. ©Vecow SEC-2000 User Manual BIOS SETUP...
  • Page 56 Set the time. Use <Tab> to switch between time elements. 4.3 Advanced Figure 4-3 : BIOS Advanced menu Select advanced tab to enter advanced BIOS setup options, such as CPU configuration, Network configuration, and USB configuration. ©Vecow SEC-2000 User Manual BIOS SETUP...
  • Page 57 Serial Port 1 to Port 4 Configuration Options for Serial Port 1 to Serial Port 4. Entering the corresponding Port option then end user can change the settings such as I/O resource and UART mode. ©Vecow SEC-2000 User Manual BIOS SETUP...
  • Page 58 Both computers should have the same or compatible settings. Legacy Console Redirection Legacy Console Redirection Settings. Serial Port for Out-of-Band Management/Windows Emergency Management Services (EMS) Console redirection enable or disable. ©Vecow SEC-2000 User Manual BIOS SETUP...
  • Page 59 Enable this to disable core in each processor package. Intel Virtualization Technology When enabled, a VMM can utilize the additional hardware capabilities provided by Vanderpool Technology. VT-d Enable/Disable CPU VT-d. Figure 4-3-6-2 : CPU Information Socket Specific CPU Information. ©Vecow SEC-2000 User Manual BIOS SETUP...
  • Page 60 Enable Ipv6 PXE boot Support. If disabled IPV6 PXE boot option will not be created. PXE boot wait time Wait time to press ESC key to abort the PXE boot. Media detect count Number of times presence of media will be checked. ©Vecow SEC-2000 User Manual BIOS SETUP...
  • Page 61 Controls the execution of UEFI and Legacy Storage OpROM. Video Controls the execution of UEFI and Legacy Video OpROM. Other PCI devices Determines OpROM execution policy for devices other than Network, Storage, or Video. ©Vecow SEC-2000 User Manual BIOS SETUP...
  • Page 62 Figure 4-4-1 : North Bridge Settings Max TOLUD Maximum Value of TOLUD. Above 4GB MMIO BIOS assignment Enable/Disable above 4GB MemoryMappedIO BIOS assignment. This is disabled automatically when Aperture Size is set to 2048MB. ©Vecow SEC-2000 User Manual BIOS SETUP...
  • Page 63 Linux. We advise you to change this option with the OS you will use. 4.4.3 LVDS Configuration Figure 4-4-3 : LVDS Panel Settings The LVDS Configuration option will be present if LVDS panel is connected on system. LCD Panel Type Select LCD Panel Resolution. ©Vecow SEC-2000 User Manual BIOS SETUP...
  • Page 64 Select DVMT 5.0 Pre-Allocated (Fixed) Graphics Memory size used by the Internal Graphics Device DVMT Total Gfx Mem Select DVMT5.0 Total Graphic Memory size used by the Internal Graphics Device Cd Clock Frequency Select the highest Cd Clock frequency supported by the platform ©Vecow SEC-2000 User Manual BIOS SETUP...
  • Page 65 Compliance Mode Enable/Disable. Riser Card Slot Riser Card Slot settings. Intel(R) Ethernet Controller I210 Intel(R) Ethernet Controller I210 Settings Mini PCIe Slot with SMI Mini PCIe Slot with SIM settings. Mini PCIe/mSATA Mini PCIe/mSATA Slot Settings. ©Vecow SEC-2000 User Manual BIOS SETUP...
  • Page 66 Otherwise all drives spin up at boot. SATA Device Type Identify the SATA port is connected to Solid State Drive or Hard Disk Drive. ©Vecow SEC-2000 User Manual BIOS SETUP...
  • Page 67 Enable/Disable the SC BIOS Lock Enable feature. Required to be enabled to ensure SMM protection of flash. RTC Lock Enable will lock bytes 38h-3Fh in the lower/upper 128-byte bank of RTC RAM. Flash Protection Range Registers (FPRR) Enable Flash Protection Range Registers. ©Vecow SEC-2000 User Manual BIOS SETUP...
  • Page 68 Discard or save changes option in setup dies not have any impact on HDD when password is set or removed. If the "Set HDD User Password" option is grayed out, do power cycle to enable the option again. ©Vecow SEC-2000 User Manual BIOS SETUP...
  • Page 69 Select the keyboard NumLock state. Quiet Boot Enables or disables Quiet Boot option. Boot Option #x Sets the system boot order. New Boot Option Policy Controls the placement of newly detected UEFI boot options. ©Vecow SEC-2000 User Manual BIOS SETUP...
  • Page 70 Restore Defaults Restore/Load Default values for all the setup options. Save as User Defaults Save the changes done so far as User Defaults. Restore User Defaults Restore the User Defaults to all the setup options. ©Vecow SEC-2000 User Manual BIOS SETUP...
  • Page 71 GPIO Definition GPIO 0 GPIO 8 GPIO 1 GPIO 9 GPIO 2 GPIO 10 GPIO 3 GPIO 11 GPIO 4 GPIO 12 GPIO 5 GPIO 13 GPIO 6 GPIO 14 GPIO 7 GPIO 15 ©Vecow SEC-2000 User Manual Appendix A...
  • Page 72 Sample folder include sample program, driver library, and API library. Source folder include sample program source code that compile on Visual Studio 2008. A.3 Sample Execute DIO demo tool (SEC2K.exe). Sample SEC2K.exe, as shown below : ©Vecow SEC-2000 User Manual Appendix A...
  • Page 73 WDT counting by program timer after set WDT. Shown after Write button action. WDT setup day format texts (user setting) : User setting, WDT value, format : day'hour'minute'second.. WDT counting day format text (read only) : WDT counting, format : day'hour'minute'second. ©Vecow SEC-2000 User Manual Appendix A...
  • Page 74 Get GPIO input DI ([15:0]): Input state, pin setting by hexadecimal bitmask 1: High; 0: Low Return : TRUE (1): Success; FALSE (0): Fail (Initial error, or call by pointer error, or hardware problem) ©Vecow SEC-2000 User Manual Appendix B...
  • Page 75 FALSE (0) : Fail (Initial error, or setup 0 error, or hardware problem) BOOL CancelWDT () Cancel watchdog timer Return : TRUE (1) : Success; FALSE (0) : Fail (Initial error, or hardware problem) ©Vecow SEC-2000 User Manual Appendix B...
  • Page 76 You can get the software on SEC-2000 driver CD. ® Also, you can find latest information and software directly from Intel website. http://www.intel.com/p/en_US/support/highlights/chpsts/imsm The RAID environment has been done if you completed the steps above. ©Vecow SEC-2000 User Manual Appendix C...
  • Page 77 "RAID 1". C.7 Disk Management : Partition the Disk After RAID 1 volume created, you can see the figure of SATA device allocation. You will find "Volume_0000" in SATA device at BIOS menu. ©Vecow SEC-2000 User Manual Appendix C...
  • Page 78 Then add "Logical Device" for Windows access. C.8 If One SATA HDD on RAID Volume is Out-of-use After RAID 1 volume created, you can see the figure of SATA device allocation. HDD CAUTION Sign ©Vecow SEC-2000 User Manual Appendix C...
  • Page 79 A warning will pop-up to ask you if the disk is not a member of the original RAID volume. If you press "Rebuild", it will replace the broken SATA HDD to the last SATA HDD of RAID volume. ©Vecow SEC-2000 User Manual Appendix C...
  • Page 80 SATA 0 Intel SSD E5400s 120GB SATA 1 Toshiba HDD MQ01ABD050 500GB LAN 1 (I210) 1.0Gbps LAN 2 (I210) 1.0Gbps Graphics Output HDMI Power Plan Balance (Windows 10 Power Plan) Power Source Chroma 62006P-100-25 ©Vecow SEC-2000 User Manual Appendix D...
  • Page 81 Power on and boot to Win 7 (64bit) Run 100% CPU Run 100% CPU Power usage without 3D usage with 3D Input Current Consumption Current Consumption Apollo Lake 1.271A 15.25W 1.702A 20.42W x7-E3950 ©Vecow SEC-2000 User Manual Appendix D...
  • Page 82 PASS PASS PASS PASS PASS (Socket 1) E.2 NON-ECC Test Temp. Brand Info (Celsius) 25ºC Vecow 4GB 240PIN DDR3L-1333 SODIMM M340L-W28M1 25ºC 25ºC Kingston 2GB 240PIN DDR3L-1600 SODIMM KVR16LS11S6/2 25ºC 25ºC Kingston 4GB 240PIN DDR3L-1600 SODIMM KVR16LS11/4 25ºC 25ºC CT51264BF160BJ.
  • Page 83 Innodisk 3MG2-P DGS25-64GD81BC1QC 64GB Intel SSD 540s SSDSC2KW120H6 120GB SATA SSD Intel SSD E 5400s SSDSC2KR120H6 120GB MEMXPRO 2.5" SSD M3A 128GB 128GB LITE-ON K8-L1256 256GB LITE-ON K8-L1512 512GB SATA HDD TOSHIBA MQ01ABF050 500GB ©Vecow SEC-2000 User Manual Appendix E...
  • Page 84 No part of this publication may be reproduced in any form or by any means, electric, photocopying, or recording, without prior authorization from the publisher. The rights of all the brand names, product names, and trademarks belong to their respective owners. © Vecow Co., Ltd. 2019. All rights reserved.

This manual is also suitable for:

Sec-2220Sec-2211Sec-2000
