7 Electrical Connection

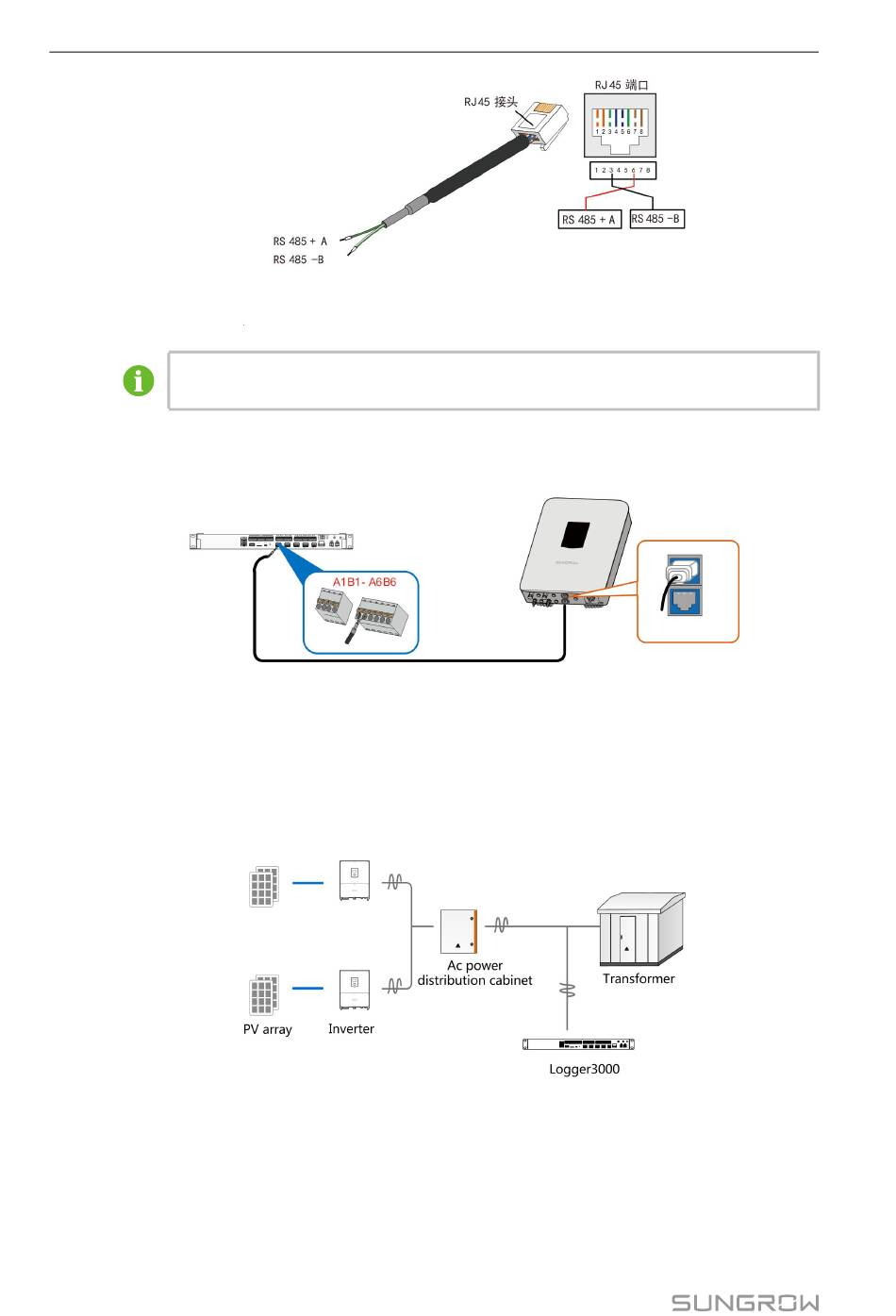

The white-green wire 3 is defined as RS485- B wire and the green wire 6 as
RS485+ A wire.
step 3 Connect the communication cable to the RS485 port of the Logger3000, as shown in
the figure below.
- - - - E E n n d d

7.4.3 Connecting to the Inverter with PLC Port

Integrated with PLC master node, the Logger3000 can be connected to the inverter
integrated with PLC slave node and achieve PLC communication by using existing
power cable.
P P r r e e p p a a r r a a t t i i o o n n b b e e f f o o r r e e w w i i r r i i n n g g
Disconnect the transformer from the grid.
•
Disconnect the DC side of the inverter and make sure the system is in safe state.
•
26
User Manual
