DCX XCONNECT SPOOL
QUICK START GUIDE
PX106857 - EN REV A

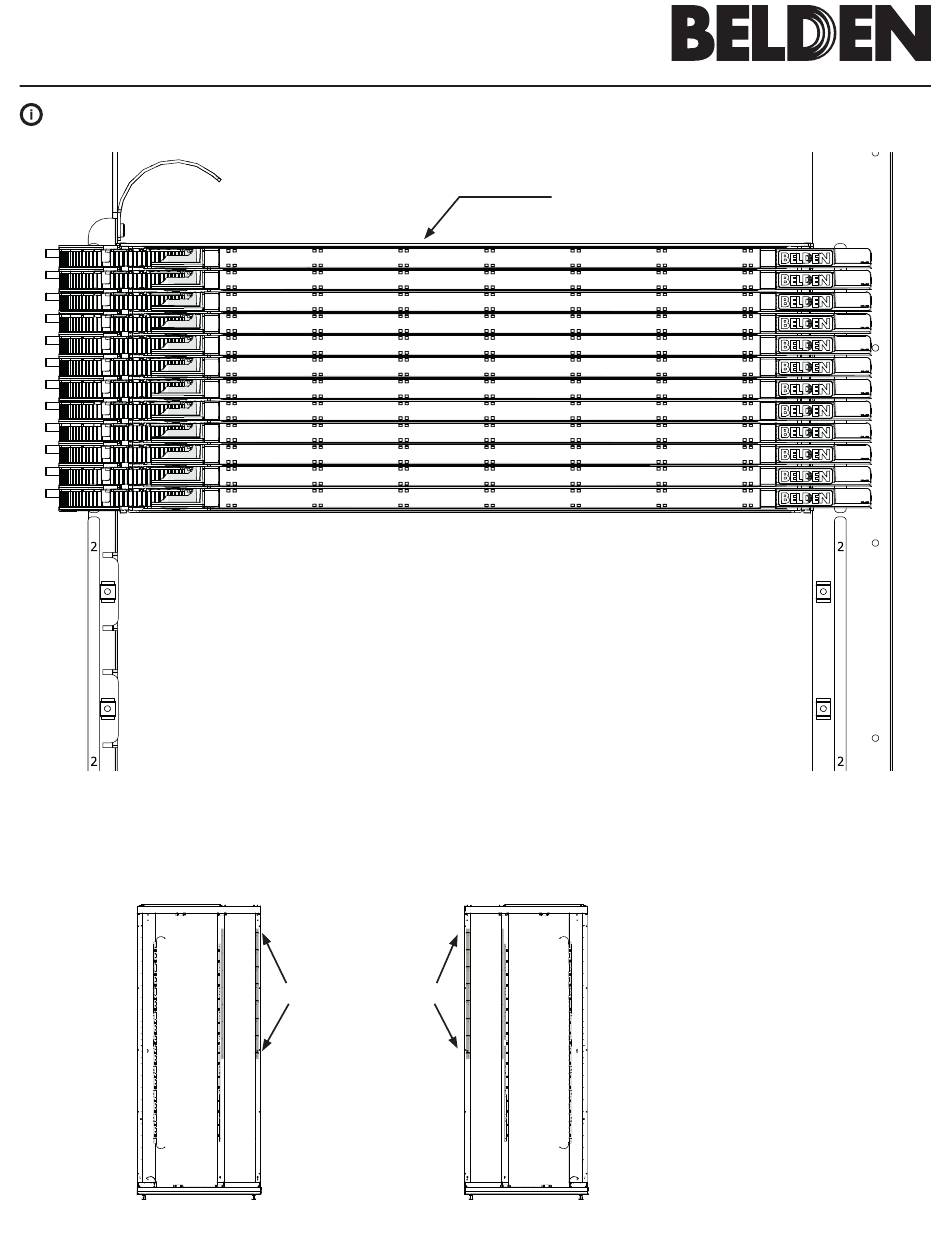

Before proceeding with Spool Kit installation, make sure to install (or determine the position of) the DCX Housings into the Cabinet.
The Housings positions will determine the location where to secure the Spools and the Brackets.

Spool kit assembly and installation

1

. Determine the cable flow direction of the Cabinet.

For a left-to-right (LR) Cabinet, the Spool Kit will be installed at right.
For a right-to-left (RL) Cabinet, the Spool Kit will be installed at left.
LR cabinet
Spool Kit installation area
Position 1
chosen as
example.
RL cabinet
Page 1 of 2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DCX XCONNECT SPOOL and is the answer not in the manual?

Questions and answers

Related Manuals for Belden DCX XCONNECT SPOOL

Summary of Contents for Belden DCX XCONNECT SPOOL

  • Page 1 DCX XCONNECT SPOOL QUICK START GUIDE PX106857 - EN REV A Page 1 of 2 Before proceeding with Spool Kit installation, make sure to install (or determine the position of) the DCX Housings into the Cabinet. The Housings positions will determine the location where to secure the Spools and the Brackets.
  • Page 2 . Set the Bracket at the required cable flow. Position related to the LR cable flow installed Housing Indicator related to the associated position RL cable flow Position related to the installed Housing Indicator related to the associated position . Slide the Spool into the Bracket and place it to the associated posistion. Slots to secure Fixed Spool on position 1...
  • Page 3 Once the Spool position is determined, secure the spool with the provided (plastic) screws and thigthen them to complete the assembly. Locate the assembly position to the associated Housing and use the remaining screws (metallic) to secure the bracket. Position 1 to place Spool Kit Screws thighten at Position 1 Housing related to Spool Kit installed.
  • Page 4 PX106857 - EN REV A Scan this QR code to access more technical This document is also available at our microsite: information of our www.belden.com/dcx products and get For more information about BELDEN Technical support, call: constant updates 1-800-BELDEN-1 Page 2 of 2...
