Flat-Screen TV Ceiling Mount - For 32 in. to 75 in.
LCD, LED, or Plasma TVs
FLATPNLCEIL
FR: Guide de l'utilisateur - fr.startech.com
DE: Bedienungsanleitung - de.startech.com
ES: Guía del usuario - es.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
IT: Guida per l'uso - it.startech.com
JP: 取扱説明書 - jp.startech.com
For the latest information, technical specifications, and support for
this product, please visit www.StarTech.com/FLATPNLCEIL.
Manual Revision: 12/04/2018
*actual product may vary from photos
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for StarTech.com FLATPNLCEIL
Summary of Contents for StarTech.com FLATPNLCEIL
- Page 1 Flat-Screen TV Ceiling Mount - For 32 in. to 75 in. LCD, LED, or Plasma TVs FLATPNLCEIL *actual product may vary from photos FR: Guide de l’utilisateur - fr.startech.com DE: Bedienungsanleitung - de.startech.com ES: Guía del usuario - es.startech.com NL: Gebruiksaanwijzing - nl.startech.com IT: Guida per l’uso - it.startech.com...
- Page 2 Warning statements Mensagens de aviso Make sure to assemble this product according to the instructions. Failure to do so might result in Certifique-se de que monta este produto de acordo com as instruções. O incumprimento pode resultar personal injury or property damage. em ferimentos pessoais ou danos de propriedade.
-
Page 3: Table Of Contents
Table of Contents Warnings ..............................i Introduction ....................1 Product diagram ............................1 Product dimensions ..........................2 Technical specifications .......................... 3 Package contents ............................5 Requirements ............................. 6 Installation ....................7 Attach the ceiling mount and pole to the ceiling ................. 7 Attach the extension pole to the ceiling mount and pole ............ -
Page 4: Introduction

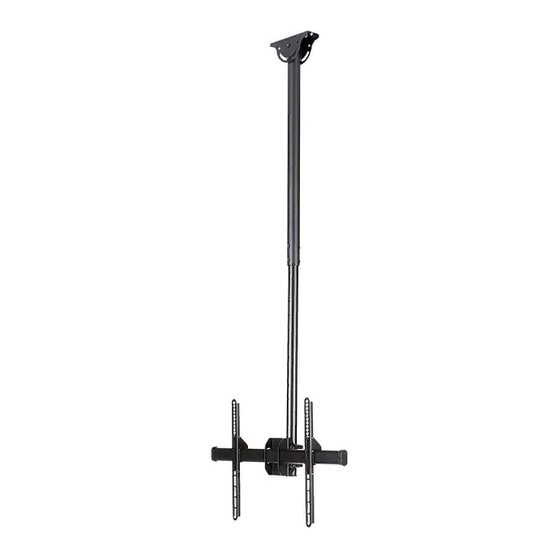

Introduction The FLATPNLCEIL is a full-motion ceiling mount that’s designed to give you an easy way to suspend your flat-panel television from a ceiling or other overhead surface. The ceiling mount features easy-to-use height and tilt adjustments, which makes it easy to position your display in a way that works best for you, on a flat or sloped ceiling surface. -
Page 5: Product Dimensions
Product dimensions Instruction manual... -
Page 6: Technical Specifications
Technical specifications Type of measurement Measurement VESA mounting hole pattern 200x200 300x300 400x200 400x400 600x400 Weight capacity Up to 110 lb. (50 kg) Tilt +00 to -250 Extension pole swivel +1800 to -1800 Extension 1060 to 1560 mm (42 to 61 in.) Instruction manual... - Page 7 Type of measurement Measurement Level adjustment +30 to -30 Screen size 813 to 1905 mm (32 to 75 in.) Ceiling plate swivel -600 to +600 Instruction manual...
-
Page 8: Package Contents
Package contents Ceiling mount and pole Extension pole Vertical brackets Qty: One Qty: One Qty: Two Horizontal bracket Bolts Nuts Qty: One Qty: Two Qty: Two M13 wrench M5 Allen key Mounting template Qty: One Qty: One Qty: One M5x14 mm screws M6x14 mm screws M6x30 mm screws Qty: Four... -
Page 9: Requirements
Concrete anchors Flat washers Instruction manual Qty: Four Qty: Four Qty: One Requirements • Flat-panel TV that is compatible with a VESA mount • Phillips screwdriver Requirements are subject to change. For the latest requirements, please visit www.StarTech.com/FLATPNLCEIL. Instruction manual... -
Page 10: Installation
If you lack the necessary expertise to attach this product to the ceiling that you’re using, contact a construction professional to install the FLATPNLCEIL or to provide specific mounting instructions for your ceiling. 1. Use a pencil and the provided mounting template (9) to mark the location on the ceiling where you want to attach the ceiling mount. -
Page 11: Attach The Extension Pole To The Ceiling Mount And Pole
Attach the extension pole to the ceiling mount and pole 1. Place one end of the cable through the top hole in the ceiling mount and pole (1). 2. Run the cable through the ceiling mount and pole and the extension pole (2), and out the bottom of the extension pole. - Page 12 3. Slide the extension pole into the ceiling mount and pole, until the extension pole is at the height that you want it to be. (figure 3) 4. Line up the holes on the extension pole with the holes on the ceiling mount and pole.
-
Page 13: Attach The Horizontal Bracket
Attach the horizontal bracket 1. Use a wrench to remove the retainer nut from the back of the horizontal bracket (4). (figure 5) 2. Loosen the two nuts at the back of the horizontal bracket. 3. Attach the horizontal bracket onto the mounting bracket at the end of the extension pole (2). -
Page 14: Select The Appropriate Mounting Hardware
Select the appropriate mounting hardware To accommodate different TV designs, the FLATPNLCEIL comes with three sets of screws of different lengths and diameters, and two sizes of spacers. To select the combination of mounting hardware that you need to use to attach the vertical brackets to the TV, complete the following: •... -
Page 15: Attach The Vertical Brackets To The Tv
(continued from previous page) The following hardware combinations work with an inset mounting surface: M8x50 mm Attach the vertical brackets to the TV Warning! Do not over-tighten the screws. If you encounter resistance while you’re tightening the screws, stop tightening. Failure to do so could result in damage to the 1. - Page 16 3. If you’re attaching a TV with an inset mounting surface, place the spacers over the mounting holes on the back of the TV. 4. With the mounting hardware pointed towards the bottom of the TV, position the vertical brackets so that the holes on the vertical brackets line up with the mounting holes or spacers on the back of the TV.
-
Page 17: Attach The Tv To The Horizontal Bracket
Attach the TV to the horizontal bracket Warning! Attaching the TV is a two-person job. Do not attempt to hang the TV by yourself. 1. Carefully lift up the TV and hook the mounting hardware on the vertical brackets (3) onto the horizontal bracket (4) attached to the extension pole (2). -
Page 18: Adjust The Tv
Adjust the TV 1. Do any of the following: • To adjust the tilt of the TV, loosen the nuts on the side of the horizontal bracket. Adjust the TV to the position that you want it in, and then tighten the nuts on the side of the horizontal bracket. -
Page 19: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 20 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
