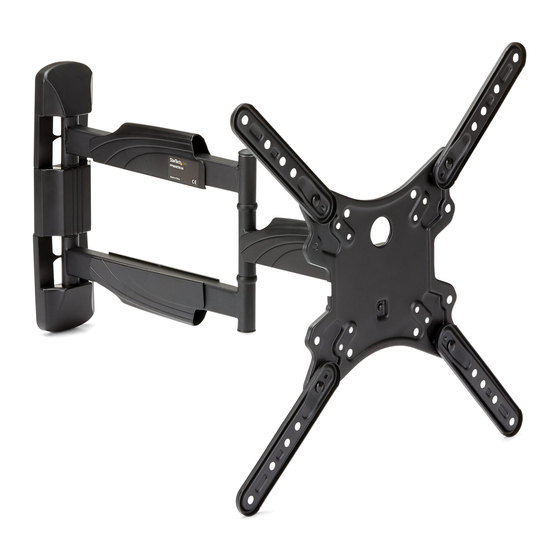

Flat-Screen TV Wall Mount -
Articulating - 32 - 55"
FPWARTB1M
FR: Guide de l'utilisateur - fr.startech.com
DE: Bedienungsanleitung - de.startech.com
ES: Guía del usuario - es.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
IT: Guida per l'uso - it.startech.com
JP: 取扱説明書 - jp.startech.com
For the latest information, technical specifications, and support for
this product, please visit www.StarTech.com/FPWARTB1M.
Manual Revision: 06/26/2019
*actual product may vary from photos
Advertisement
Table of Contents
Related Manuals for StarTech.com FPWARTB1M
Summary of Contents for StarTech.com FPWARTB1M
- Page 1 Flat-Screen TV Wall Mount - Articulating - 32 - 55” FPWARTB1M *actual product may vary from photos FR: Guide de l’utilisateur - fr.startech.com DE: Bedienungsanleitung - de.startech.com ES: Guía del usuario - es.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com IT: Guida per l’uso - it.startech.com...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
- Page 3 Warning statements Mensagens de aviso Make sure to assemble this product according to the instructions. Failure to do so might result in personal Certifique-se de que monta este produto de acordo com as instruções. O incumprimento pode resultar injury or property damage. em ferimentos pessoais ou danos de propriedade.
-
Page 4: Table Of Contents
Technical specifications ................1 Package contents ............................2 Requirements ............................. 5 Installation ....................6 Prepare FPWARTB1M for mounting ....................6 Attach the wall mount to the wall ...................... 7 Reattach the decorative covers ......................8 Assemble the TV mount ......................... 9 Mount a TV with a flush mounting surface ..................12 Mount a TV with a recessed mounting surface ................ -
Page 5: Technical Specifications
Technical specifications Unless otherwise indicated, the technical specifications in the table below apply to the TV or display. Type of measurement Measurement 100x100 VESA mounting hole pattern 100x150 on the TV mount 200x100 200x200 300x200 300x300 400x200 400x300 400x400 Weight capacity of TV mount 35 kg (77 lb.) Tilt +20 to -120... -
Page 6: Package Contents
Package contents Wall mount VESA extension brackets Qty: One Qty: Four Wrench Bracket screws Qty: One Qty: Four Nuts M5x14 mm screws Qty: Four Qty: Four Instruction manual... - Page 7 M6x14 mm screws M6x30 mm screws Qty: Four Qty: Four M8x30 mm screws M8x50 mm screws Qty: Four Qty: Four Small washers Large washers Qty: Four Qty: Four Instruction manual...
- Page 8 Small spacers Large spacers Qty: Eight Qty: Eight Screws Concrete anchors Qty: Four Qty: Four Bracket washers Instruction manual Qty: Four Qty: One Instruction manual...
-
Page 9: Requirements
Requirements • A display or TV that is compatible with one of the VESA mounting hole patterns FPWARTB1M supports • A Phillips screwdriver Requirements are subject to change. For the latest requirements, please visit www.StarTech.com/FPWARTB1M. Instruction manual... -
Page 10: Installation
Installation Prepare FPWARTB1M for mounting 1. Remove the center decorative cover from the wall mount. 2. Remove the top and bottom decorative covers from the wall mount. 3. Use the wrench provided to remove one bolt from the front of the wall mount and slide the TV mount up and away from the wall mount. -
Page 11: Attach The Wall Mount To The Wall
Attach the wall mount to the wall The wall mount is designed to be installed on a wood stud, solid concrete, or cinder block wall. The wall structure should be capable of supporting at least four times the weight of the mounted equipment. The mounting hardware included with this product may not be adequate for installation on certain wall structures. -
Page 12: Reattach The Decorative Covers
Reattach the decorative covers 1. When the wall mount is attached to the wall, snap the top and bottom decorative covers back onto the wall mount. 2. Snap the center decorative cover onto the wall mount.(figure 3) Top decorative cover figure 3 Wall mount Center decorative... -
Page 13: Assemble The Tv Mount
Assemble the TV mount If the mounting holes on the TV mount aren’t compatible with the mounting holes on your TV or display, you can use the VESA mount extensions to create a compatible mounting hole configuration. You can position the VESA mount extensions in the following three configurations: Screw Wrench Instruction manual... - Page 14 Screw Wrench Instruction manual...
- Page 15 Screw Wrench Instruction manual...
-
Page 16: Mount A Tv With A Flush Mounting Surface
Mount a TV with a flush mounting surface To accommodate different TV designs, the FPWARTB1M comes with five sets of screws of different lengths and diameters, two sizes of washers, and two sizes of spacers. 1. To select the combination of mounting hardware that you need to use to attach the VESA mount extensions to the TV, complete the following: •... -
Page 17: Mount A Tv With A Recessed Mounting Surface
Mount a TV with a recessed mounting surface To accommodate different TV designs, the FPWARTB1M comes with five sets of screws of different lengths and diameters, two sizes of washers, and two sizes of spacers. 1. To select the combination of mounting hardware that you need to use to attach the TV mount or the VESA mount extensions to the TV, complete the following: •... - Page 18 2. Position the end of the TV mount with the circle closest to the top edge of the TV. 3. Line up the TV mount or the VESA mount extensions with the mounting holes on the back of the TV. 4.
-
Page 19: Attach The Tv To The Wall Mount
Attach the TV to the wall mount Warning! Make sure that the weight of the TV doesn’t exceed the weight capacity of this product. If you exceed the weight capacity, you might experience personal injury or damage to the product. This product can support the following weight: Up to 35 kg (77 lb.) Warning! Attaching the TV is a two-person job. -
Page 20: Route The Cables
Route the cables 1. Remove the decorative covers from the arms of the wall mount. 2. Position the cables in the decorative covers and reattach them to the arms of the wall mount. (figure 7) figure 7 Instruction manual... -
Page 21: Adjust The Tilt And Swivel Angle Of The Tv
Adjust the tilt and swivel angle of the TV 1. Use the provided wrench to loosen the bolts in the side of the TV mount. 2. Position the TV at the angle that you want. 3. Use the provided wrench to tighten the bolts in the side of the TV mount. (figure 8) figure 8 Wrench Instruction manual... -
Page 22: Technical Support
Limitation of liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 23 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
