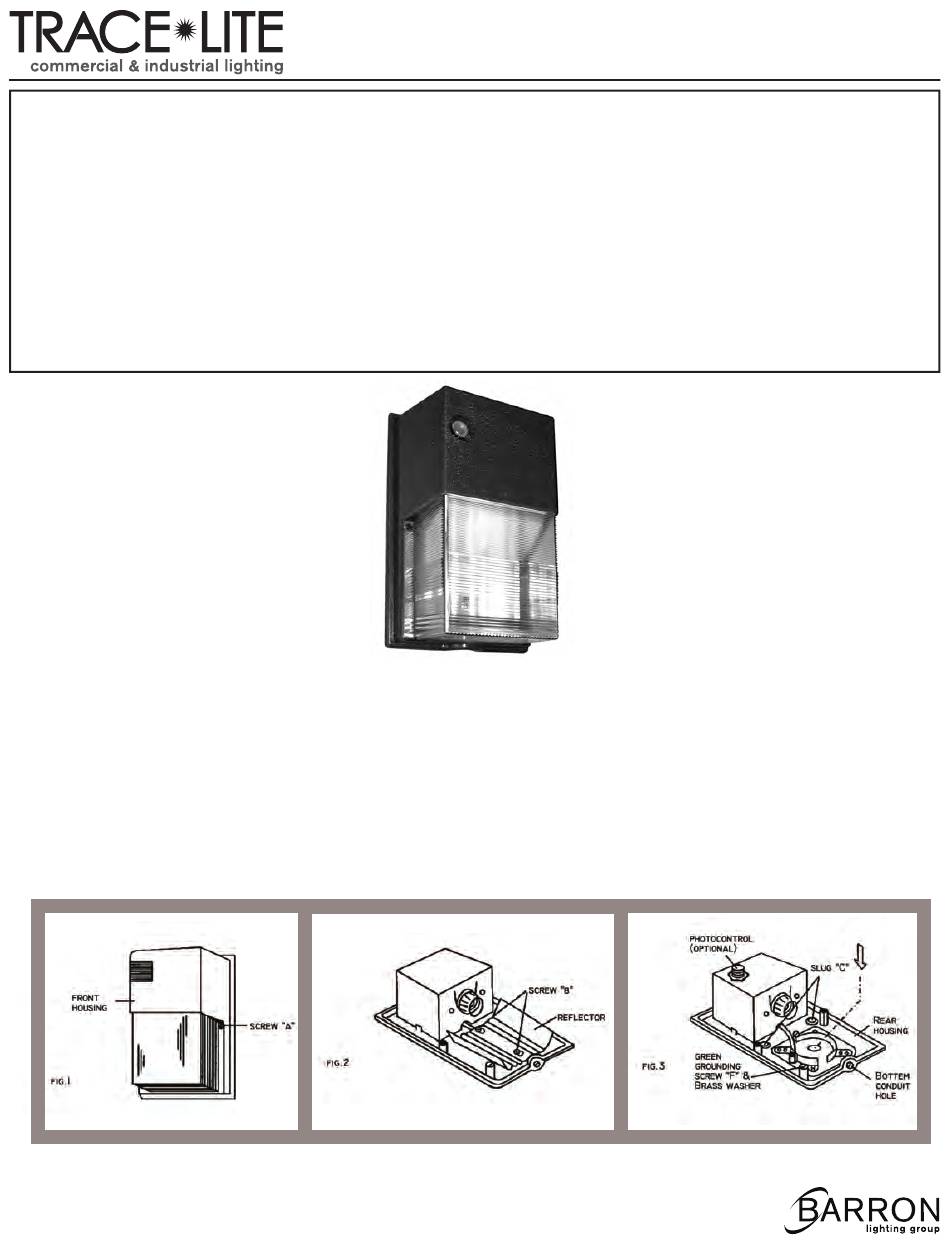

BARRON TRACE-LITE TL101 Installation Instructions

READ CAREFULLY AND FOLLOW ALL INSTRUCTIONS FOR YOUR OWN SAFETY
• DISCONNECT AC POWER SUPPLY BEFORE SERVICING.
• Installation and servicing of this equipment should be performed by qualified service personnel only.
• Ensure the electricity connections conform to the National Electrical Code and local regulations if applicable.
• Do not mount near gas or electrical heaters.
• Equipment should be mounted in locations and at heights where it will not readily be subjected to tampering by
unauthorized personnel.
• The use of accessory equipment not recommended by the manufacturer may cause an unsafe condition. Any
modification or use of non-original components will void the warranty and product liability.
• Do not use this equipment for other than intended use.
1. REMOVE FRONT HOUSING (Fig. 1) Loosen two (2) screws "A". Remove front housing.
2. REMOVE REFLECTOR (Fig. 2) Loosen two (2) screws "B" enough to allow reflector to slide upward until key hole
in reflector releases two screws "B" to remove reflector.
3. MOUNTING WITH TWO (2) BOLTS (Fig. 3) Knock out two (2) slugs "C" in rear housing. Mount with two (2) lag
screws
