Installation Manual - TVH.4401E
Ver. 2.54
www.isenbergfaucets.com

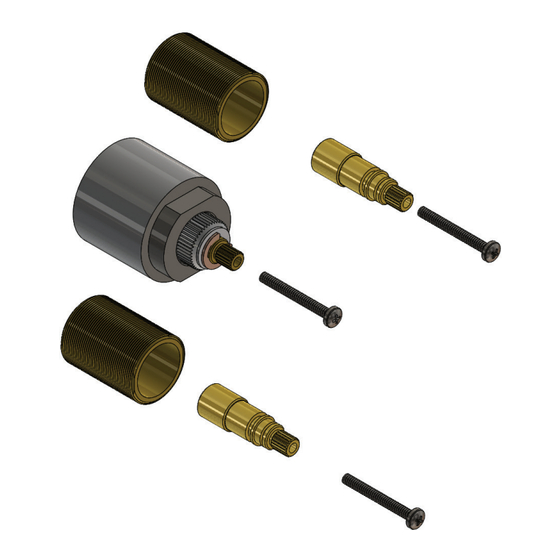

Extension Kit
Use With Trims Ending in *4401 *4501 *2715
BEFORE YOU BEGIN
•
You must observe all local plumbing laws and codes.
•
Do not install this valve if it does not meet local plumbing codes.
•
Shut off the main water supply.
Advertisement
Table of Contents
Related Manuals for Isenberg TVH.4401E
Summary of Contents for Isenberg TVH.4401E
- Page 1 Installation Manual - TVH.4401E Extension Kit Use With Trims Ending in *4401 *4501 *2715 BEFORE YOU BEGIN • You must observe all local plumbing laws and codes. • Do not install this valve if it does not meet local plumbing codes. • Shut off the main water supply. Ver. 2.54 www.isenbergfaucets.com...
- Page 2 TABLE OF CONTENTS • Installing The Extension Kit . . . . . . . NOTICE TO HOMEOWNER • We recommend that this product is installed by a qualified professional plumber. Please check this product immediately to ensure that it has • not been damaged and is complete. Before installation, please make sure this product is the correct model and you have all the parts required for installation and use. Please flush the water system to ensure that no metal swarf, • solder, and other impurities can enter the product. • Turn off water supply before commencing work. • Please read these instructions carefully and retain for future reference. www.isenbergfaucets.com...
- Page 3 INSTALLING EXTENSIONS TO THE VALVE Install diverter extension kit - 2 Pieces as shown Remove anti scald temperature ring above Install temperature extension piece as shown Reinsert anti scald temperature ring above. Install and tighten screw www.isenbergfaucets.com...
