PIM 021 Panel Interface Modul Operating Manual Date of creation: 05.05.2020 Version date: 09.09.2020 Article number: 01-232-021-E...
Page 2
(print, photocopy, microfilm or in any other process) without express permission. We reserve the right to make changes in the content without notice. SIGMATEK GmbH & Co KG is not responsible for technical or printing errors in this handbook and assumes no responsibility for damages that...
Page 3

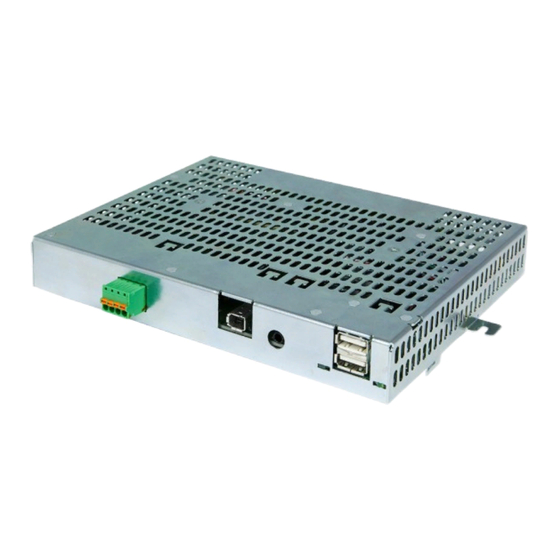

Panel Interface Modul PIM 021 The Panel Interface Module (PIM) is an attachable CPU for SIGMATEK touch panels (TP). This module operates with SIGMATEK HMI-LINK Generation 2 (G2.1). Transfer from the display, as well as USB signals via Standard Ethernet cables (CAT 5e or CAT 6) from a remote PC to a terming (up to 100 m) is therewith possible.
PIM 021 PANEL INTERFACE MODUL Table of Contents 1 Introduction 1.1 Target Group/Purpose of this Operating Manual 1.2 Important Reference Documentation 1.3 Contents of Delivery 2 Basic Safety Guidelines 2.1 Symbols Used 2.2 Disclaimer 2.3 General Safety Guidelines 3 Standards and Guidelines 3.1 Guidelines...
Page 5
PANEL INTERFACE MODUL PIM 021 7 Assembly/Installation 7.1 Check Contents of Delivery 7.2 Installation 8 Wiring 8.1 Note 8.2 Grounding 8.3 Shielding 8.4 ESD Protection 8.5 USB Interface 9 Transport/Storage 10 Storage 11 Maintenance 11.1 Service 11.2 Repair 12 Modularity 12.1 Removing the PIM from the Touch Panel...
General knowledge of automation technology is required. Further help and training information, as well as the appropriate accessories can be found on our website www.sigmatek-automation.com. Our support team is happily available to answer your questions. Please see our website for our hotline number and business hours.
PANEL INTERFACE MODUL PIM 021 2 Basic Safety Guidelines 2.1 Symbols Used The following symbols are used in the operator documentation for warning and danger messages, as well as informational notes. DANGER Danger indicates that death or serious injury will occur, if the specified measures are not taken.
Page 8
PIM 021 PANEL INTERFACE MODUL CAUTION Caution indicates that moderate to slight injury can occur, if the specified measures are not taken. To avoid moderate to slight injuries, observe the all guidelines. Attention indique une situation dangereuse qui, faute de prendre les mesures adéquates, peut entraîner des blessures assez graves ou...
It does not guarantee properties under the warranty. Please thoroughly read the corresponding documents and this operating manual before handling a product. SIGMATEK GmbH & Co KG is not liable for damages caused through, non-compliance with these instructions or applicable regulations.
2006/42/EG guidelines is correct. As long as the machine with which the product should be used does not comply with the guideline, operating this product is prohibited. Operate the unit with devices and accessories approved by SIGMATEK only. Page 8...
Page 11
PANEL INTERFACE MODUL PIM 021 CAUTION Handle the device with care and do not drop or let fall. Prevent foreign bodies and fluids from entering the device. The device must not be opened, otherwise it could be damaged! Manipulez l’appareil avec précaution et ne le laissez pas tomber.
The product was constructed in compliance with the following European Union guidelines and tested for conformity. 3.1.1 EU Conformity Declaration EU Declaration of Conformity The product PIM 021 conforms to the following European guidelines: 2014/35/EU Low-voltage Guideline 2014/30/EU Electromagnetic Compatibility (EMC Guideline) 2011/65/EU “Restricted use of certain hazardous substances in electrical and electronic equipment”...
Interfaces 1x HMI Remote IN (HMI Link G2.1) 2x USB 2.0 Type A OUT 1x Panel Interface Connector (for connecting a SIGMATEK TP) Internal interfaces USB 2.0 (for touch and front USB, if available on the TP) (via Panel Interface Connector)
PIM 021 PANEL INTERFACE MODUL 4.2 Electrical Requirements Supply voltage +24 V DC ±20 % (SELV/PELV) UL: Class 2 or LVLC Current consumption of the typically 400 mA maximum 600 mA voltage supply (+24 V) (with no external devices (with external devices connected)
IP20 protection through housing (not UL-listed) The maximum environmental temperature allowed depends on the TP connected. The ambient temperature cannot exceed any of the permissible values. Applies only if the PIM 021 is mounted onto the TP. 09.09.2020 Page 13...
PIM 021 PANEL INTERFACE MODUL 4.4 Miscellaneous Article number 01-232-021 Hardware version Operating system Approvals CAUTION If the modular components (e.g. TP and PIM) are not bolted together,they are NOT ESD-protected and can only be unpacked and handled in an ESD-safe environment by trained personnel.
PANEL INTERFACE MODUL PIM 021 5 Interfaces 5.1 Front Connectors 5.1.1 X1: Supply (4-pin Phoenix RM 3.5) Function +24 V DC +24 V DC 09.09.2020 Page 15...
= do not use INFORMATION For service purposed only! For the service interface, only a separate cable that can be ordered from SIGMATEK may be used. Using a different cable can lead to malfunction and damage. Page 16 09.09.2020...
8-pin Industrial Tyco Mini I/O (not included in delivery) For the service interface, only a separate cable that can be ordered from SIGMATEK may be used. Using a different cable can lead to malfunction and damage. X4, X5: USB 4-pin, Type A (downstream connector) (not included with delivery) Panel Interface Connector (display side) 09.09.2020...
PIM 021 PANEL INTERFACE MODUL 6 Mechanical Dimensions Dimensions 185 x 140 x 26 mm (W x H x D) Material housing: sheet steel plate color: blue chromated Weight 0.45 kg Page 18 09.09.2020...
PANEL INTERFACE MODUL PIM 021 7 Assembly/Installation 7.1 Check Contents of Delivery Ensure that the contents of the delivery are complete and intact. See chapter 1.3 Contents of Delivery. INFORMATION On receipt and before initial use, check the device for damage. If the device is damaged, contact our customer service and do not install the device in your system.
PIM 021 PANEL INTERFACE MODUL 8 Wiring 8.1 Note DANGER Electric shock With bad cable insulation, there is a danger of electric shock from the device. Use only cable insulation with a temperature resistance greater than 70 °C. Chocs électriques En cas de mauvaise isolation des câbles, l'appareil présente un risque de...
PIM 021 8.2 Grounding The PIM 021 is grounded via the TP. The device must be grounded to protective earth (PE) via the blade terminal provided. In addition, ensure that when installing into the control cabinet, a large grounding surface is provided. It is important to establish a low-Ohm connection to ground to ensure error-free function.
PIM 021 PANEL INTERFACE MODUL 8.4 ESD Protection CAUTION Typically, USB devices (keyboard, mouse, etc.) are equipped with non- shielded cables. These devices are disrupted by ESD and in some instances, no longer function. Before any device is connected or disconnected, the potential should be equalized (by touching the control cabinet or ground terminal).
PANEL INTERFACE MODUL PIM 021 9 Transport/Storage INFORMATION This device contains sensitive electronics. During transport and storage, high mechanical stress must therefore be avoided. For storage and transport, the same values for humidity and vibration as for operation must be maintained! Temperature and humidity fluctuations may occur during transport.
PIM 021 PANEL INTERFACE MODUL 10 Storage INFORMATION When not in use, store the device according to the storage conditions. See chapter 9 Transport/Storage. During storage, ensure that all protective covers are placed correctly, so that no contamination, foreign bodies or fluids enter the device.
PANEL INTERFACE MODUL PIM 021 11 Maintenance INFORMATION During maintenance as well as servicing, observe the safety instructions from chapter 2 Basic Safety Guidelines. Lors de l'entretien et de la maintenance, respectez les consignes de sécurité du chapitre 2 Basic Safety Guidelines.
PIM 021 PANEL INTERFACE MODUL 12 Modularity INFORMATION The device is not Hot-Plug capable and can be damaged when the supply is not disconnected before inserting or removing the PIM. Always disconnect the supply before inserting or removing. 12.1 Removing the PIM from the Touch Panel CAUTION This product is a sensitive electronic device.
PANEL INTERFACE MODUL PIM 021 5. Slide the PIM in the direction of the upward as shown. 6. Remove the PIM from the TP. 12.2 Mounting the PIM onto the Touch Panel To mount the PIM on a TP, follow the steps below: 1.
PIM 021 PANEL INTERFACE MODUL 12.2.1 Calibrating the Touch Screen The touch screen is calibrated at the factory. You should therefore only recalibrate the touch screen when press-point changes are noticed. Page 28 09.09.2020...
PANEL INTERFACE MODUL PIM 021 13 Disposal INFORMATION Should you need to dispose of the device, the national electronic scrap regulation must be observed. The device appliance must not be disposed of as household waste. 09.09.2020 Page 29...
Page 32
PIM 021 PANEL INTERFACE MODUL Changes Chart Change Affected Chapter Note date page(s) 31.08.2020 Introduction Text corrected 4.2 Electrical Requirements Notation supply voltage 5.1 Front Connectors X9 => X6 09.09.2020 Document Restructuring 10 Storage Chapter added Page 30 09.09.2020...
