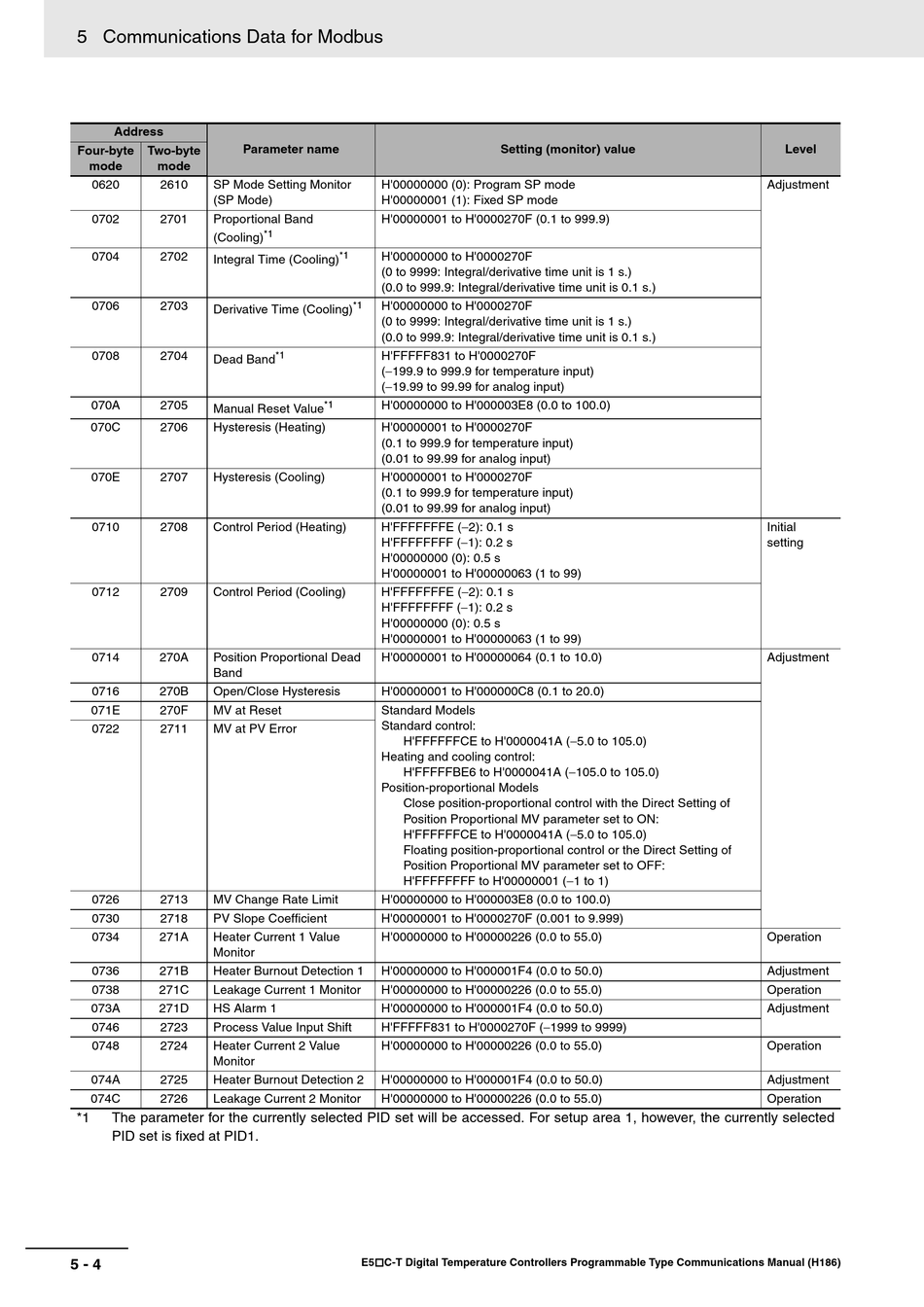

5 Communications Data for Modbus
Address
Parameter name
Four-byte Two-byte
mode mode
0620 2610 SP Mode Setting Monitor
(SP Mode)
0702 2701 Proportional Band
(Cooling)
0704 2702
Integral Time (Cooling)
0706 2703
Derivative Time (Cooling)
0708 2704
Dead Band
070A 2705
Manual Reset Value
070C 2706 Hysteresis (Heating)
070E 2707 Hysteresis (Cooling)
0710 2708 Control Period (Heating)
0712 2709 Control Period (Cooling)
0714 270A Position Proportional Dead
Band
0716 270B Open/Close Hysteresis
071E 270F MV at Reset
0722 2711 MV at PV Error
0726 2713 MV Change Rate Limit
0730 2718 PV Slope Coefficient
0734 271A Heater Current 1 Value
Monitor
0736 271B Heater Burnout Detection 1
0738 271C Leakage Current 1 Monitor
073A 271D HS Alarm 1
0746 2723 Process Value Input Shift
0748 2724 Heater Current 2 Value
Monitor
074A 2725 Heater Burnout Detection 2
074C 2726 Leakage Current 2 Monitor
*1 The parameter for the currently selected PID set will be accessed. For setup area 1, however, the currently selected
PID set is fixed at PID1.
5 - 4
H'00000000 (0): Program SP mode
H'00000001 (1): Fixed SP mode
H'00000001 to H'0000270F (0.1 to 999.9)
*1
H'00000000 to H'0000270F
*1
(0 to 9999: Integral/derivative time unit is 1 s.)
(0.0 to 999.9: Integral/derivative time unit is 0.1 s.)
H'00000000 to H'0000270F
*1
(0 to 9999: Integral/derivative time unit is 1 s.)
(0.0 to 999.9: Integral/derivative time unit is 0.1 s.)
*1 H'FFFFF831 to H'0000270F
(−199.9 to 999.9 for temperature input)
(−19.99 to 99.99 for analog input)
*1 H'00000000 to H'000003E8 (0.0 to 100.0)
H'00000001 to H'0000270F
(0.1 to 999.9 for temperature input)
(0.01 to 99.99 for analog input)
H'00000001 to H'0000270F
(0.1 to 999.9 for temperature input)
(0.01 to 99.99 for analog input)
H'FFFFFFFE (−2): 0.1 s
H'FFFFFFFF (−1): 0.2 s
H'00000000 (0): 0.5 s
H'00000001 to H'00000063 (1 to 99)
H'FFFFFFFE (−2): 0.1 s
H'FFFFFFFF (−1): 0.2 s
H'00000000 (0): 0.5 s
H'00000001 to H'00000063 (1 to 99)
H'00000001 to H'00000064 (0.1 to 10.0)
H'00000001 to H'000000C8 (0.1 to 20.0)
Standard Models
Standard control:
H'FFFFFFCE to H'0000041A (−5.0 to 105.0)
Heating and cooling control:
H'FFFFFBE6 to H'0000041A (−105.0 to 105.0)
Position-proportional Models
Close position-proportional control with the Direct Setting of
Position Proportional MV parameter set to ON:
H'FFFFFFCE to H'0000041A (−5.0 to 105.0)
Floating position-proportional control or the Direct Setting of
Position Proportional MV parameter set to OFF:
H'FFFFFFFF to H'00000001 (−1 to 1)
H'00000000 to H'000003E8 (0.0 to 100.0)
H'00000001 to H'0000270F (0.001 to 9.999)
H'00000000 to H'00000226 (0.0 to 55.0)
H'00000000 to H'000001F4 (0.0 to 50.0)
H'00000000 to H'00000226 (0.0 to 55.0)
H'00000000 to H'000001F4 (0.0 to 50.0)
H'FFFFF831 to H'0000270F (−1999 to 9999)
H'00000000 to H'00000226 (0.0 to 55.0)
H'00000000 to H'000001F4 (0.0 to 50.0)
H'00000000 to H'00000226 (0.0 to 55.0)
E5C-T Digital Temperature Controllers Programmable Type Communications Manual (H186)
Setting (monitor) value Level
Adjustment
Initial
setting
Adjustment
Operation
Adjustment
Operation
Adjustment
Operation
Adjustment
Operation
