Ropex RES-102 Replacement Instructions Manual

RESISTRON
Replacing
RES-102/RES-420
Replacement
Instructions

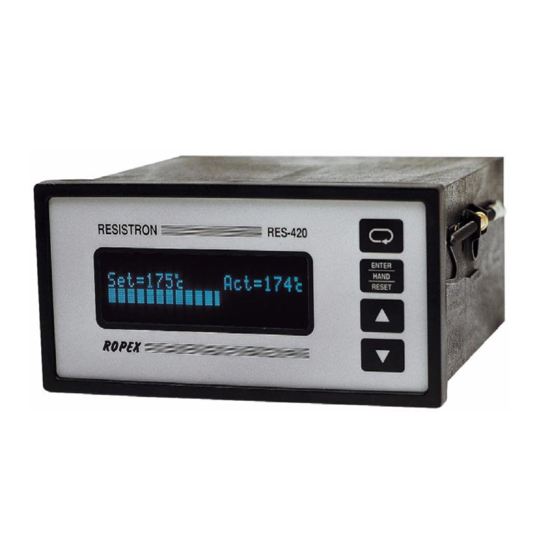

The RESISTRON temperature controller RES-420 can
be used as an alternative to the older controller type
RES-102. The mechanical outlines are identical. The
connection of the electrical terminals is different and
must be changed acc. the described wiring diagram.
The steps that are necessary to convert from
RES-102-0-x (standard model without modifications) to
RES-420 are described below.
Comparison of RES-102 / RES-420
Dimensions
The front panel cutout dimensions of the RES-2xx and
RES-420 controllers are identical. The RES-420 fea-
RES-102
Temperature indication (actual value)
RES-102
Indication on a analog instrument (ATR-x).
GB
Industrie-Elektronik GmbH
Gansäcker 21
D-74321-Bietigheim-Bissingen (Germany)
These instructions only provide a brief overview of the
two controllers. If in doubt, please refer to the latest
version of the controller documentation, which is
always binding.
The convertion from controller types RES-102-1-x is
not described here. Please contact ROPEX for further
informations.
tures a protective film to IP42 instead of the transparent
hood. A transparent front cover featuring IP65 is avail-
able as a option.
RES-420
RES-420
Indication on the 4-line display
(dynamic bar and digital value).
Tel: +49/(0)7142/7776-0
Fax: +49/(0)7142/7776-19
E-Mail: info@ropex.de
Internet: www.ropex.de
Data subject to change
