RESISTRON
Replacing
RES-2xx/RES-420
Replacement
Instructions

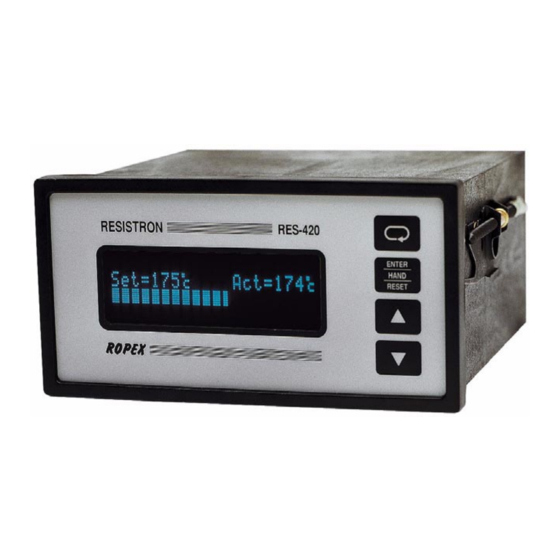

The RESISTRON temperature controller RES-420 can
be used as an alternative to the following controllers of
the „series 200":
•
RES-210: Analog temperature display,
no alarm function
•
RES-211: Digital temperature display,
no alarm function
•
RES-220: Analog temperature display,
with alarm function
•
RES-221: Digital temperature display,
with alarm function

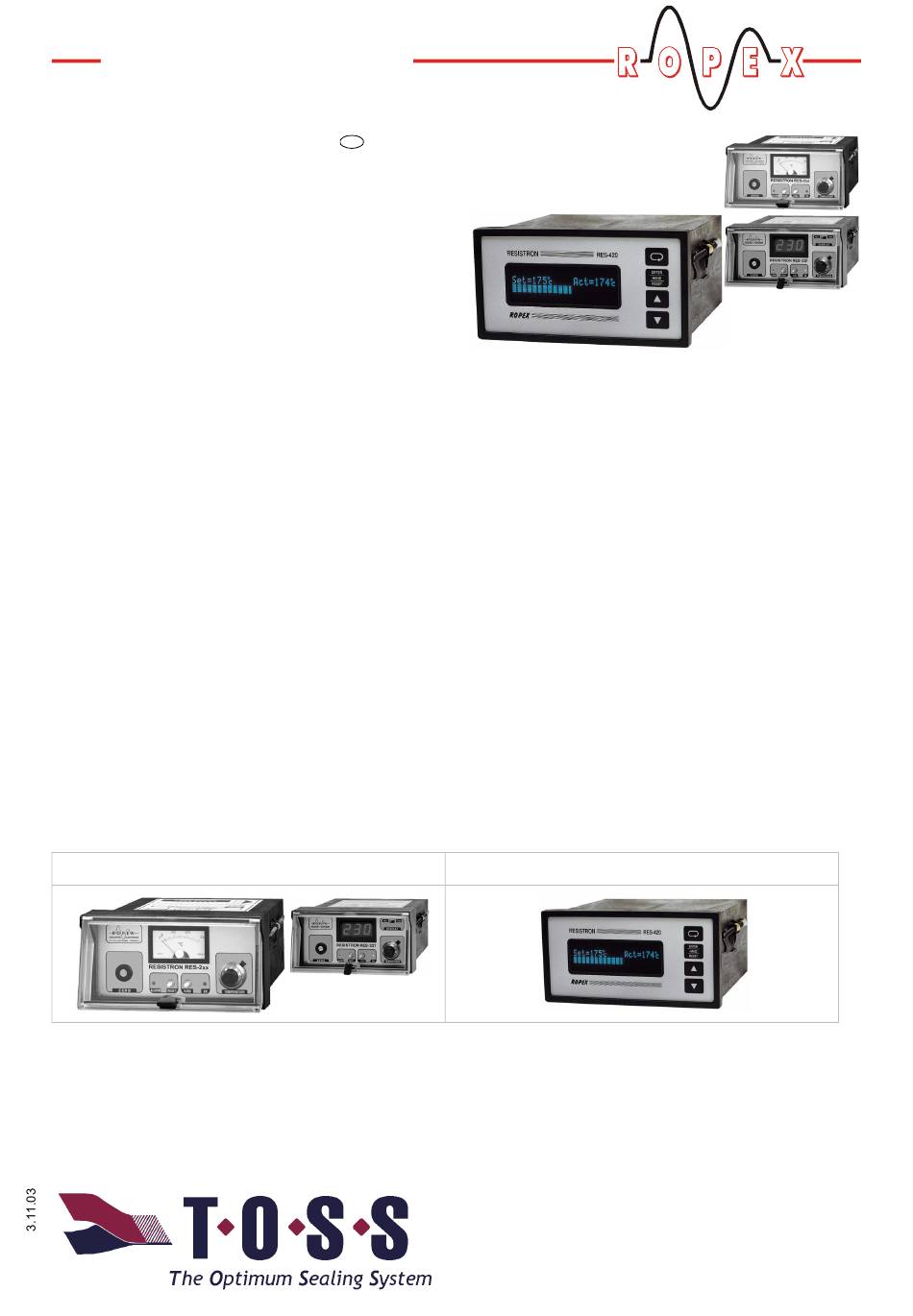

Comparison of RES-210 (-211, -220, -221) / RES-420
Dimensions
The front panel cutout dimensions of the RES-2xx and
RES-420 controllers are identical. The RES-420 fea-
RES-210, -211, -220, -221
GB
The steps that are necessary to convert from
RES-2xx-0-x (standard model without modifications) to
RES-420 are described below.
These instructions only provide a brief overview of the
two controllers. If in doubt, please refer to the latest
version of the controller documentation, which is
always binding.
The convertion from controller types RES-2xx-1-x is not
described here. Please contact ROPEX for further
informations.
tures a protective film to IP42 instead of the transparent
hood. A transparent front cover featuring IP65 is avail-
able as a option.
RES-420
Toss Machine Components, Inc.
539 S. Main Street, Nazareth. PA 18064
Phone 610 - 759 - 8883 Fax 610 - 759 - 1766
E-mail info@tossheatseal.com
Exclusive Sales and Service :
www.tossheatseal.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Ropex RESISTRON RES-2 Series
Summary of Contents for Ropex RESISTRON RES-2 Series
- Page 1 • RES-211: Digital temperature display, always binding. no alarm function The convertion from controller types RES-2xx-1-x is not described here. Please contact ROPEX for further • RES-220: Analog temperature display, with alarm function informations. •...
-
Page 2: Set Point Selection
Set point selection RES-210, -211, -220, -221 RES-420 Selection by means of a 10-turn potentiometer with Selection with step 1 in the software menu. If the a fine control knob. controller is active, the set point is also indicated on the display. -
Page 3: Manual Mode
Alarm output / reset (RES-220, -221 only) RES-220, -221 RES-420 Indicated by means of a red ALARM LED on the Indicated on the display. The error is identified by a front panel. Reset by pressing the RESET key. numeric code ( RES-420 documentation). -
Page 4: Installation And Setup
RES-210 (-211, -220, -221). Please set these switches accordance with ROPEX Application Report in order to avoid malfunctions. Old setting ranges on the RES-2xx: 5. Install the RES-420 controller in place of the RES-2xx. The terminals of the two controllers are identical. -
Page 5: As-Delivered Condition
Fault diagnosis tion „Controller configuration“ of the RES-420 docu- 201…203, 801 or 9xx RES-420 mentation and the ROPEX Application Report). documentation) Configure the controller correctly and repeat the AUTOCAL function. 9. Select the language and reset the controller to the 13.Set the heatsealing temperature (select the set... - Page 6 Menu structure of the RES-420 Settings Configuration Power-up message Language The relevant menu Home position steps are shown on a gray background. Factory settings Heatsealing temp. Alloy/range Hold mode Max. temperature Autocal? Cycles Autocal Alarm relay 26 Meas. imp. length MOD 1 only Fault Alarm...
