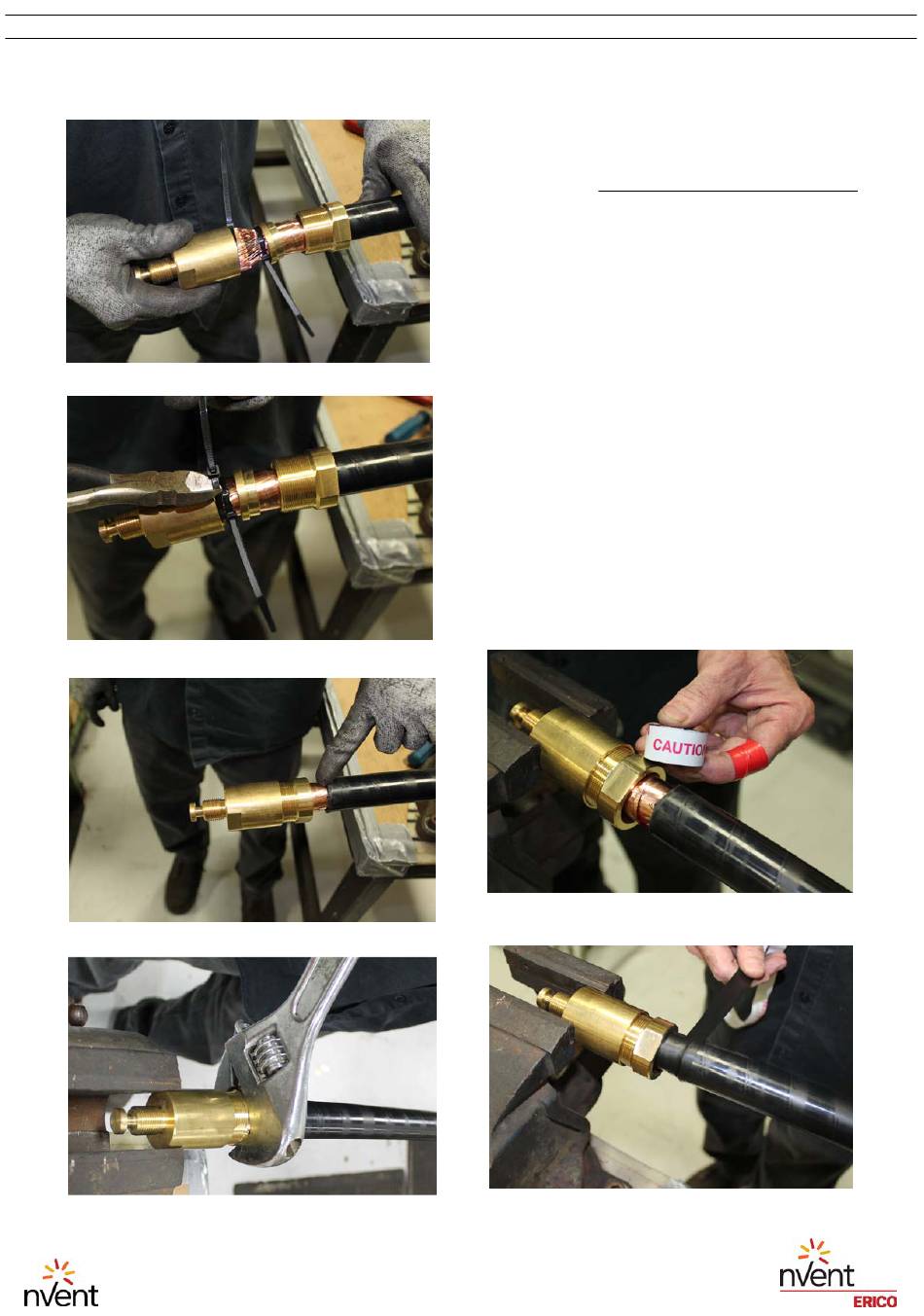

18. Install the main coupler over the strands.Do
not force the main coupler on as it should slide
on smoothly. Cut and remove both zip ties.
19. Thread main coupler into the the
compression coupler. Tighten both couplers
together with the shifting spanner/wrench (3).
20. Starting immediately at the end of the
compression coupler, wrap the remaining semi-
conductive tape (18) around and over the
copper tape, covering it completely, then
extending an additional 40 mm (1 1/2 in) over
the triple layer insulation with an overlap on
each turn.
