22. Using a roll of grey silicone tape (17),
overwrap half layers from 40 mm (1 3/5 in.)
over the end of the heatshink to 40 mm (1
3/5 in.) over the coupling so that it covers
the joint between the main coupling and
compression nut.
Using the second roll of grey silicone tape
(17), overwrap half layers from 40 mm (1 3/5
in.) over the end of the heatshink to 40 mm
(1 3/5 in.) over the cable outer sheath at the
lower end of the termination (refer to Figure
13).
Wrap with moderate tension (10 to 50%
stretch). Apply one final layer with no
stretch. Press down, to avoid the end lifting
before fusion of the tape takes place.

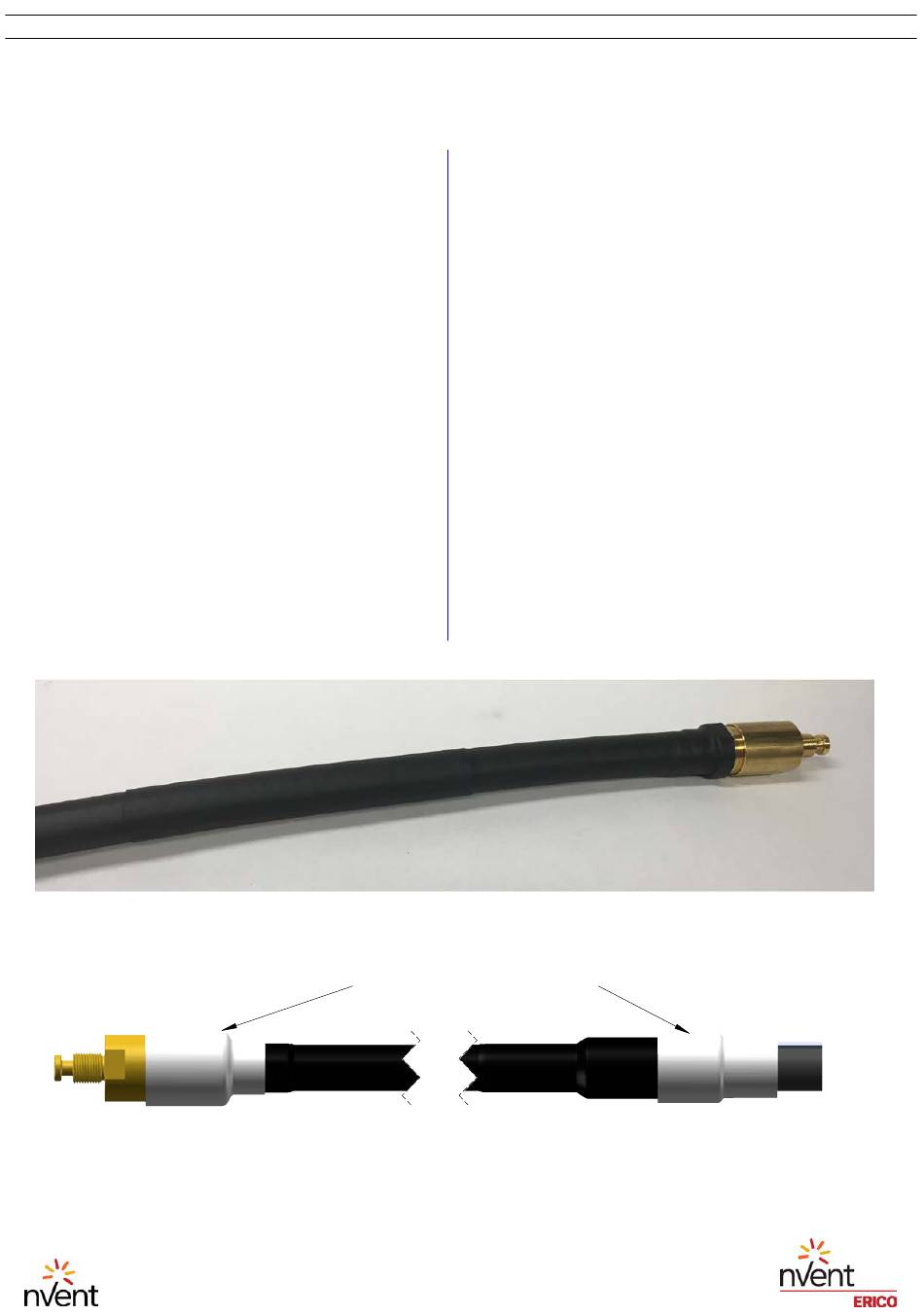

Figure 12: Heatshrink sections overlapping
Figure 13: Wrap silicone tape at the top and bottom for waterproofing
nVent, nVent CADDY, nVent ERICO Cadweld, nVent ERICO Critec, nVent ERICO, nVent ERIFLEX, and nVent LENTON are owned by nVent or its
global affiliates. All other trademarks are the property of their respective owners. nVent reserves the right to change
specifications without prior notice.
TECHNICAL SUPPORT
40 MM OVERLAP ON BOTH SIDES
IP8519_A
www.nVent.com
The finished termination must be protected
against any abrasion and sharp edges during
transport or installation, as the heatshrink
insulation is susceptible to ripping or tearing
if nicked or scuffed.
23. The structure bonding braid MUST be
electrically connected via a 6 mm
length of insulated copper cable to the
specified conductive structural point, as
described in the nVent ERICO SYSTEM 3000
Installation, Operation & Maintenance
Manual.
