TT-7000-HUV-CK-MC-M/F
Field Installed Connectors for nVent RAYCHEM TraceTek
7000-HUV Bulk Cable Installation Instructions

NOTES

• The pin connector should always be installed on the cable end
going to the alarm module.
• Use with TT7000 sensing cable only. This kit is not compatible
with other TraceTek sensing cables.

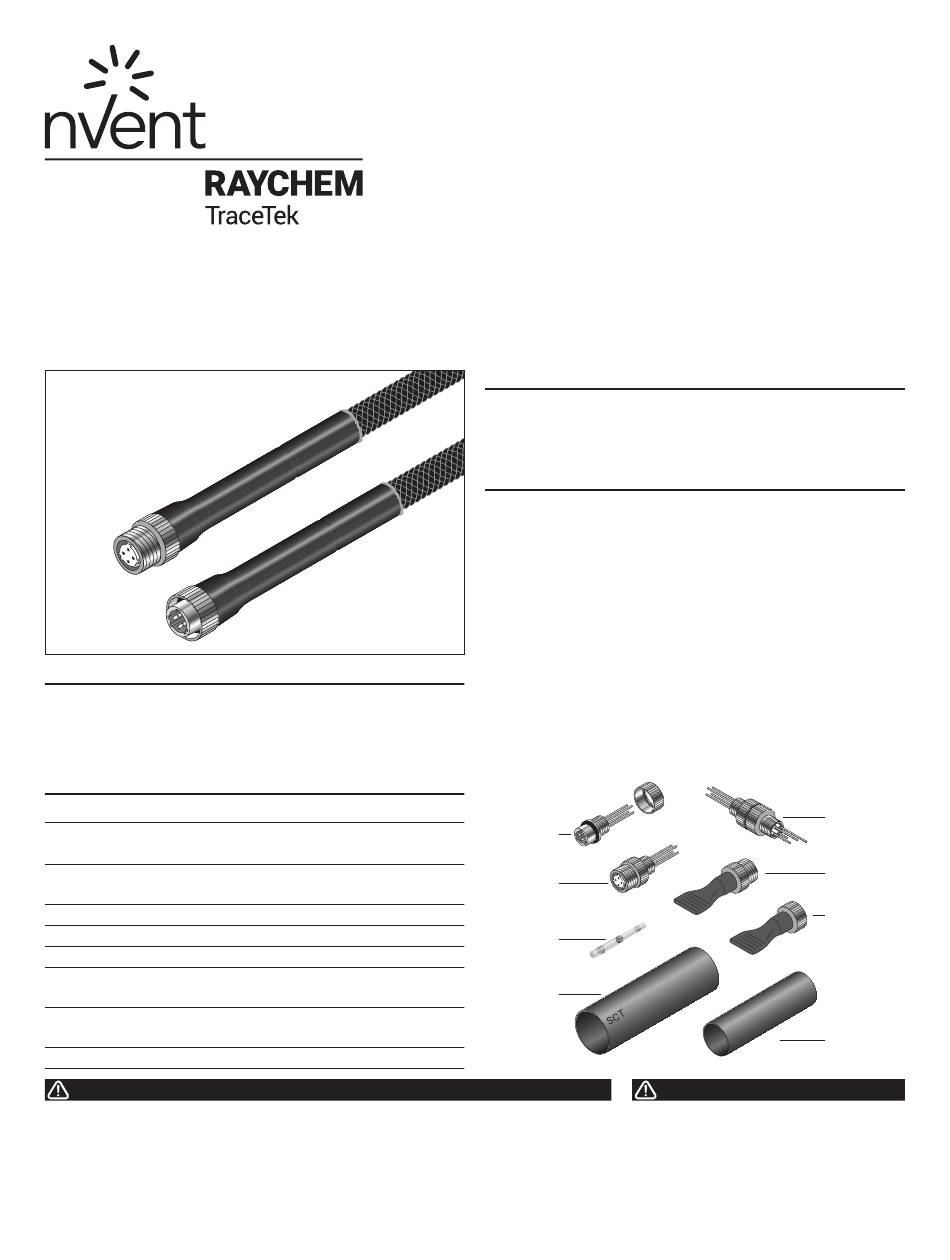

KIT CONTENTS

(5 M and 5 F connectors)
Item Qty

Description

A 5 nVent RAYCHEM TraceTek TT-CK-MC-M
pin connector with spinner ring
B 5 nVent RAYCHEM TraceTek TT-CK-MC-F
socket connector
C 45 SolderSleeve splices (5 extra)
D 11 Heat-shrinkable tubing, labeled SCT (1 extra)
E 11 Heat-shrinkable tubing, unlabeled (1 extra)
F 1 nVent RAYCHEM TraceTek TT-MET-MC
Pin end termination
G 1 nVent RAYCHEM TraceTek TT-FET-MC Socket
end termination
H 1 Pin and socket test tool
WARNING:
FIRE HAZARD. Heat guns and flameless heating
tools can cause fire or explosion in hazardous
areas. Be sure there are no flammable materials
or vapors in the area before using these tools.
Follow all site safety guidelines when working in
hazardous areas.
DESCRIPTION
These instructions describe field connecting of TraceTek
TT7000-HUV Bulk Sensing Cable.
For technical support call nVent at (800) 545-6258.

TOOLS REQUIRED

• nVent RAYCHEM TraceTek TT-ULTRA-TORCH (PN 390067-000)
flameless heating tool (Ultratorch 200) or suitable heat gun
with concentrator tip.
• Greenlee stripper (1918) or equivalent for 26 AWG and 28 AWG wire
• High impedance ohmmeter (Fluke 87 or equivalent; meter
must be capable of measuring to at least 20 megohms)
• Needle nose pliers
• Razor blade or utility knife
• Small pair of wire cutters
• 3/4 inch masking tape
• Butane lighter
• Permanent ink marker
• nVent RAYCHEM TraceTek TT-CT-SCT crimp tool
(PN 644333-000)
Component approvals and performance are based
on the use of specified parts only.
A
B
C
D
CAUTION:
HEALTH HAZARD. Overheating heat-shrinkable
tubing or SolderSleeves will produce fumes that
may cause irritation. Use adequate ventilation and
avoid charring or burning. Consult MSDS RAY3122
and RAY5103 for further information.
CHEMTREC 24-hour emergency telephone:
(800) 424-9300
Non-emergency health and safety information:
(800) 545-6258
.
H
G
F
E
