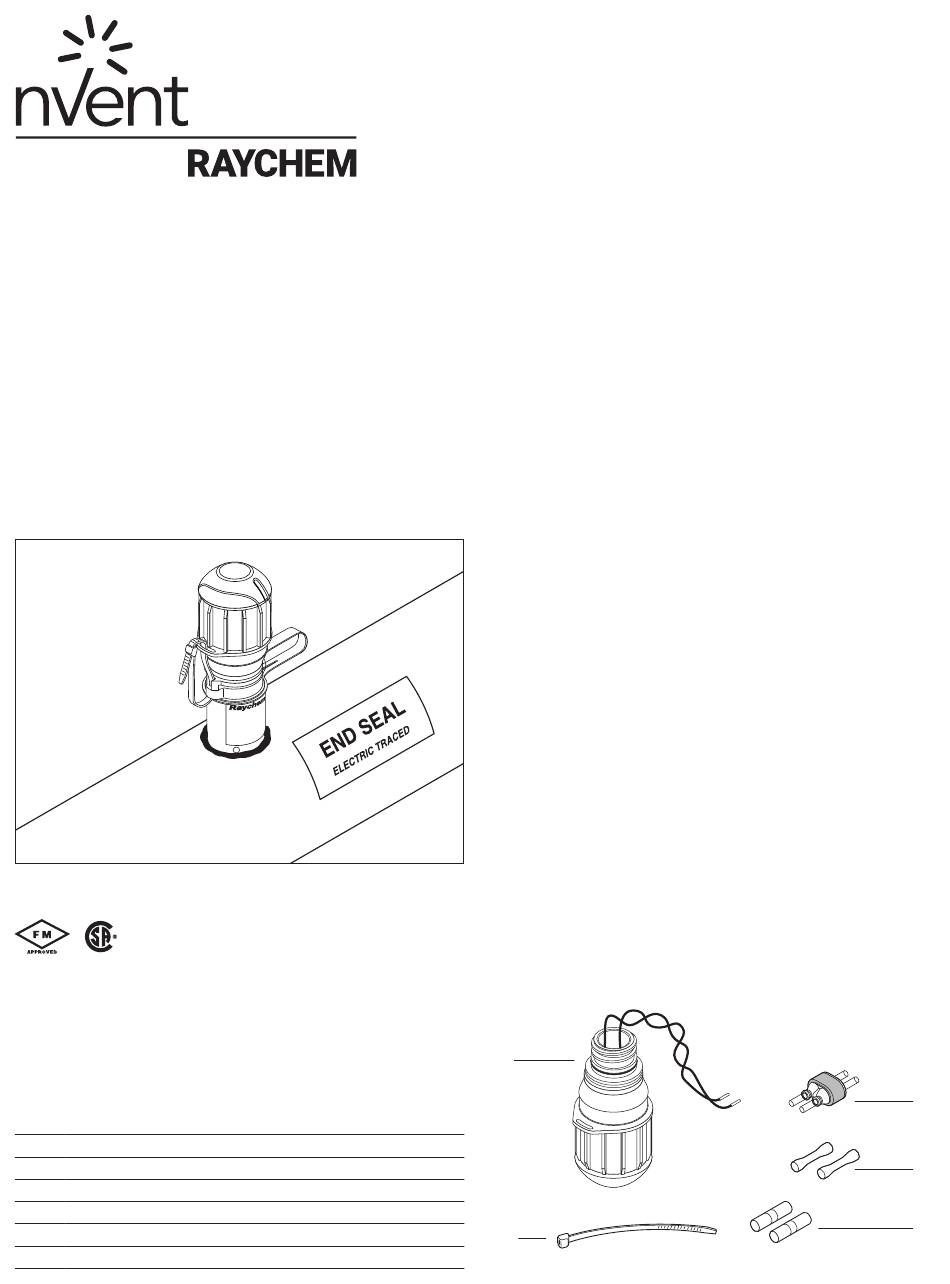

E-100-LR-A E-100-LR-E
Light Replacement and Retrofit Kit for
High-Profile End Seal Installation Instructions
APPROVALS
Hazardous Locations
Class I, Div. 2, Groups A, B, C, D
Class II, Div. 1 and 2, Groups E, F, G
Class III
–WS
CLI, ZN1, AEx e mb IIC T* Gb
ZN21 AEx tb IIIC T*
Ex e mb IIC T* Gb
Ex tb IIIC T***°C Db
IECEx SIR 14.0007X
sira
Ex e mb IIC T* Gb IP66
Ex tb IIIC T***°C Db
(1)
Except VPL
* For system Temperature Code, see heating cable or design documentation
KIT CONTENTS
Item
Qty
Description
A
1
Light assembly
B
1
Core sealer (for BTV, QTVR, XTV, and KTV)
C
2
Insulated butt splices (red)
D
2
Insulated parallel crimps (blue)
E
1
Cable tie
(1)
.
DESCRIPTION

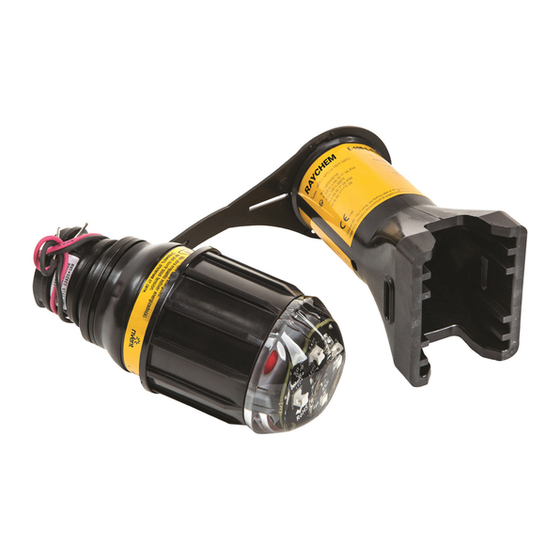

The nVent RAYCHEM E-100-LR-A and E-100-LR-E light kit is used
to replace the light on an E-100-L high-profile lighted end seal or
to retrofit a light to an existing E-100 high-profile end seal.
This kit may be installed at temperatures as low as –40°F
(–40°C). For easier installation store above freezing until just
before installation.
– E-100-LR-E kit is used for E-100-E and E-100-L-E kits
– E-100-LR-A kit is used for E-100-A and E-100-L-A kits
For technical support call nVent at (800) 545-6258.
TOOLS REQUIRED
• Wire cutters
• Utility knife
• Marker
• Panduit CT-100 crimp tool or equivalent
A
E
• Rags or dry towel
• Wire strippers
• Needle nose pliers
B
C
D
Advertisement
Table of Contents
Related Manuals for nvent RAYCHEM E-100-LR-A
Summary of Contents for nvent RAYCHEM E-100-LR-A
- Page 1 Light Replacement and Retrofit Kit for High-Profile End Seal Installation Instructions DESCRIPTION The nVent RAYCHEM E-100-LR-A and E-100-LR-E light kit is used to replace the light on an E-100-L high-profile lighted end seal or to retrofit a light to an existing E-100 high-profile end seal.
- Page 2 • Component approvals and performance are • Leave these installation instructions with based on the use of nVent-specified parts the user for future use. only. Do not use substitute parts or vinyl electrical tape. HEATING CABLE TYPES...
- Page 3 (13 mm) (13 mm) • Remove insulation from ends of bus wires. Go to Step 5b XTV, KTV Note: Core sealer is not used on VPL. Skip Step 5 and go to Step 6 Discard core sealer. nVent.com | 3...
- Page 4 Go to Step 6 crossover. • Insert bus wires into guide tubes as shown. • Slide core sealer onto heating cable. • Remove the guide tubes and dispose of them in a plastic bag. Go to Step 6 4 | nVent.com...
- Page 5 • Insert cable tie through slots on stand and light then tighten. Be sure wires are not caught in threads. • Leave these instructions with the end user for future reference. Trim Weather seal Go to Page 8 nVent.com | 5...
- Page 6 • Use 20 AWG wire stripper to remove insulation from each • Use Panduit CT-100 of the four wire ends. crimp tool and red insulated butt splices to crimp new wires to old wires. 3/8 in (9 mm) 3/8 in (9 mm) 6 | nVent.com...
- Page 7 • Insert cable tie through slots on stand and light then tighten. Be sure wires are not caught in threads. • Leave these instructions with the end user for future reference. Trim Weather seal Go to Page 8 nVent.com | 7...
- Page 8 ©2018 nVent. All nVent marks and logos are owned or licensed by nVent Services GmbH or its affiliates. All other trademarks are the property of their respective owners. nVent reserves the right to change specifications without notice. Raychem-IM-H59076-E100LRAandE100LRE-EN-1805...
