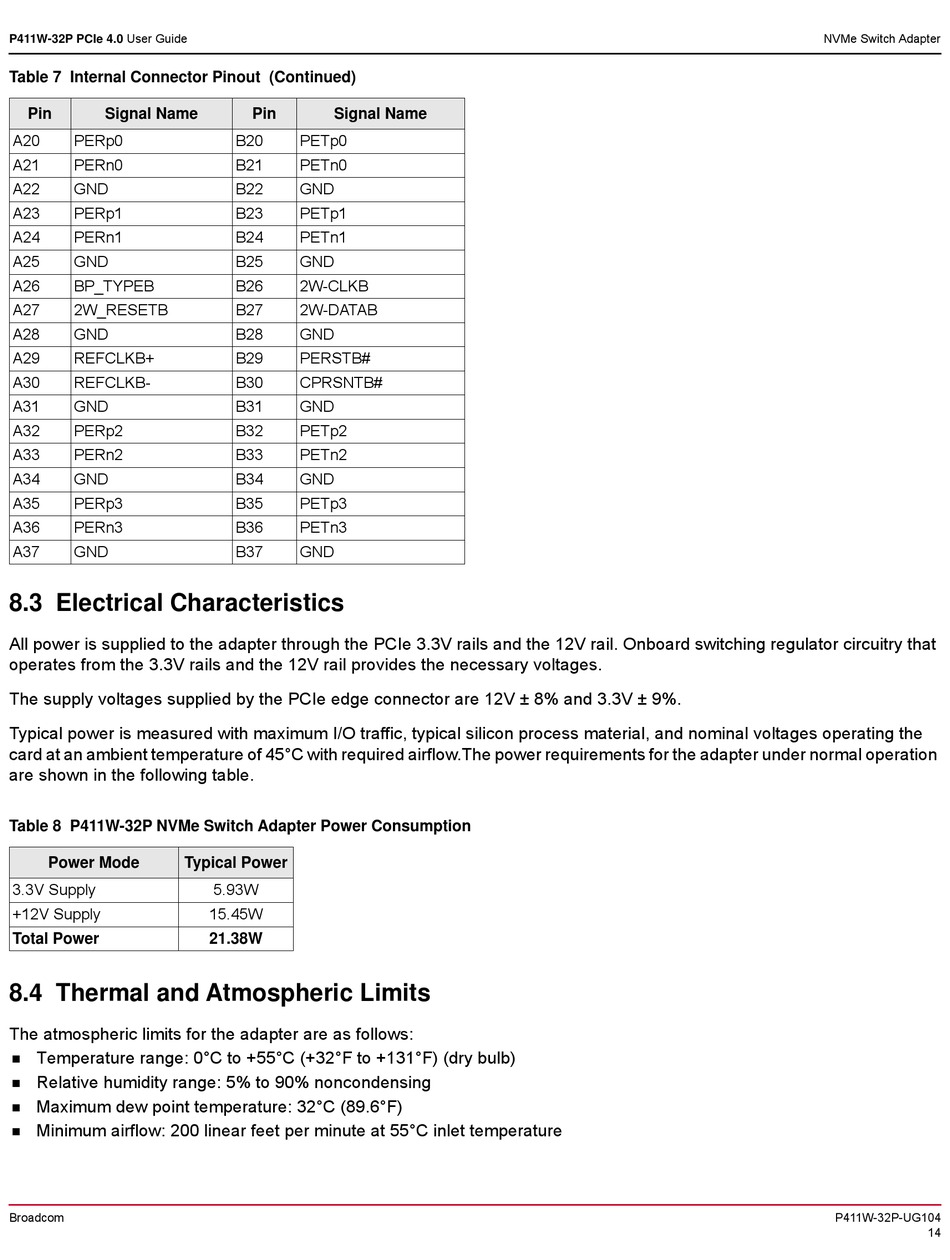

Table 7 Internal Connector Pinout (Continued)
Pin Signal Name
A20 PERp0
A21 PERn0
A22 GND
A23 PERp1
A24 PERn1
A25 GND
A26 BP_TYPEB
A27 2W_RESETB
A28 GND
A29 REFCLKB+
A30 REFCLKB-
A31 GND
A32 PERp2
A33 PERn2
A34 GND
A35 PERp3
A36 PERn3
A37 GND

8.3 Electrical Characteristics

All power is supplied to the adapter through the PCIe 3.3V rails and the 12V rail. Onboard switching regulator circuitry that
operates from the 3.3V rails and the 12V rail provides the necessary voltages.
The supply voltages supplied by the PCIe edge connector are 12V ± 8% and 3.3V ± 9%.
Typical power is measured with maximum I/O traffic, typical silicon process material, and nominal voltages operating the
card at an ambient temperature of 45°C with required airflow.The power requirements for the adapter under normal operation
are shown in the following table.
Table 8 P411W-32P NVMe Switch Adapter Power Consumption
Power Mode Typical Power
3.3V Supply
+12V Supply
Total Power

8.4 Thermal and Atmospheric Limits

The atmospheric limits for the adapter are as follows:
Temperature range: 0°C to +55°C (+32°F to +131°F) (dry bulb)

Relative humidity range: 5% to 90% noncondensing

Maximum dew point temperature: 32°C (89.6°F)

Minimum airflow: 200 linear feet per minute at 55°C inlet temperature

Broadcom
Pin Signal Name
B20 PETp0
B21 PETn0
B22 GND
B23 PETp1
B24 PETn1
B25 GND
B26 2W-CLKB
B27 2W-DATAB
B28 GND
B29 PERSTB#
B30 CPRSNTB#
B31 GND
B32 PETp2
B33 PETn2
B34 GND
B35 PETp3
B36 PETn3
B37 GND
