LED Indicator (LT14). Heartbeat LED.
1.5.4

Physical Characteristics

This 12Gb/s SAS HBA is a 6.6 in. × 2.7 in. (167.65 mm × 68.90 mm) board. The component height on the top and bottom
of the 12Gb/s SAS HBA complies with the PCIe specification. The following figure shows the HBA board layout.

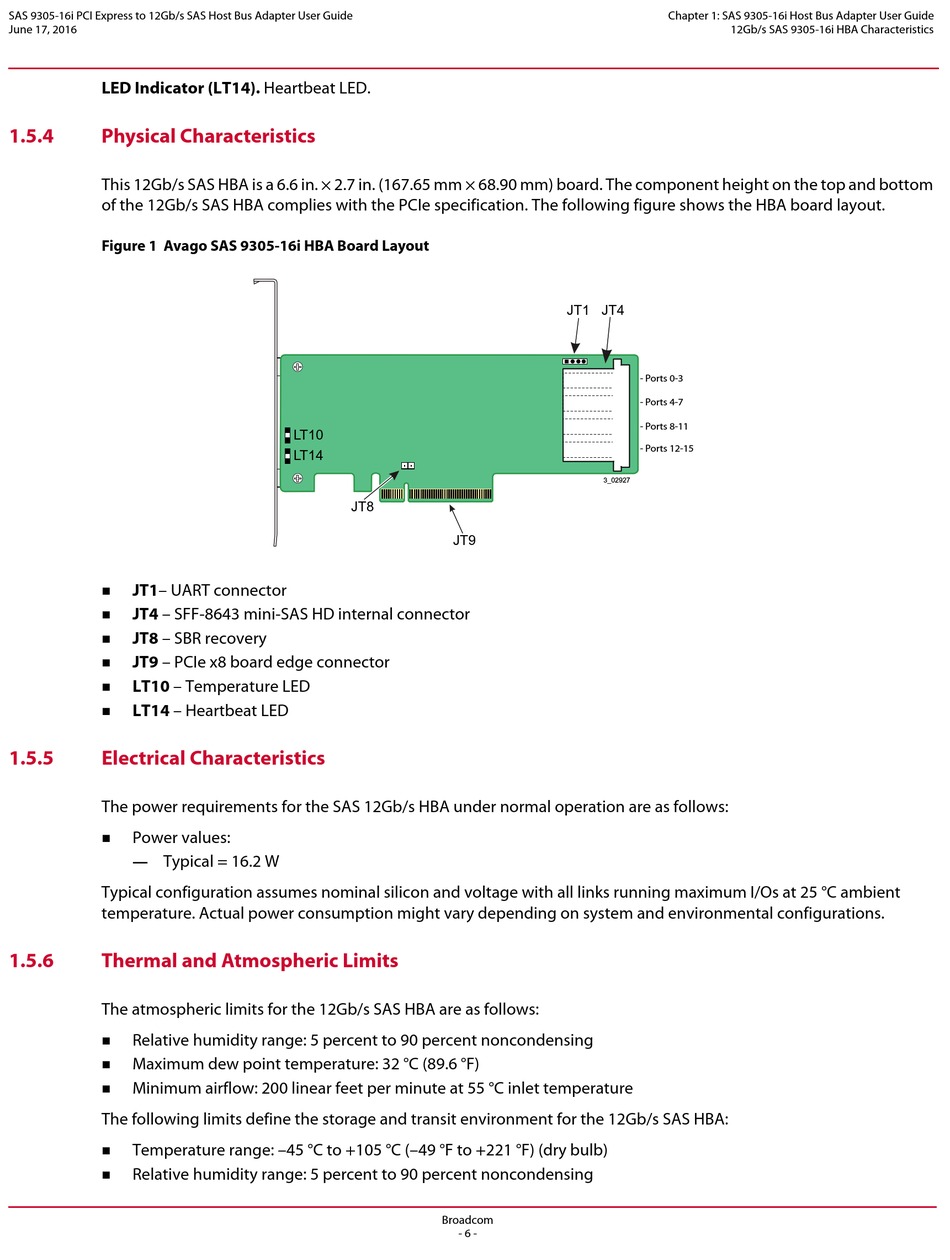

Figure 1 Avago SAS 9305-16i HBA Board Layout
JT1– UART connector

JT4 – SFF-8643 mini-SAS HD internal connector

JT8 – SBR recovery

JT9 – PCIe x8 board edge connector

LT10 – Temperature LED

LT14 – Heartbeat LED

1.5.5

Electrical Characteristics

The power requirements for the SAS 12Gb/s HBA under normal operation are as follows:
Power values:

Typical = 16.2 W
—
Typical configuration assumes nominal silicon and voltage with all links running maximum I/Os at 25 °C ambient
temperature. Actual power consumption might vary depending on system and environmental configurations.
1.5.6

Thermal and Atmospheric Limits

The atmospheric limits for the 12Gb/s SAS HBA are as follows:
Relative humidity range: 5 percent to 90 percent noncondensing

Maximum dew point temperature: 32 °C (89.6 °F)

Minimum airflow: 200 linear feet per minute at 55 °C inlet temperature

The following limits define the storage and transit environment for the 12Gb/s SAS HBA:
Temperature range: –45 °C to +105 °C (–49 °F to +221 °F) (dry bulb)

Relative humidity range: 5 percent to 90 percent noncondensing

Broadcom
- 6 -
Chapter 1: SAS 9305-16i Host Bus Adapter User Guide
12Gb/s SAS 9305-16i HBA Characteristics
- Ports 0-3
- Ports 4-7
- Ports 8-11
- Ports 12-15
