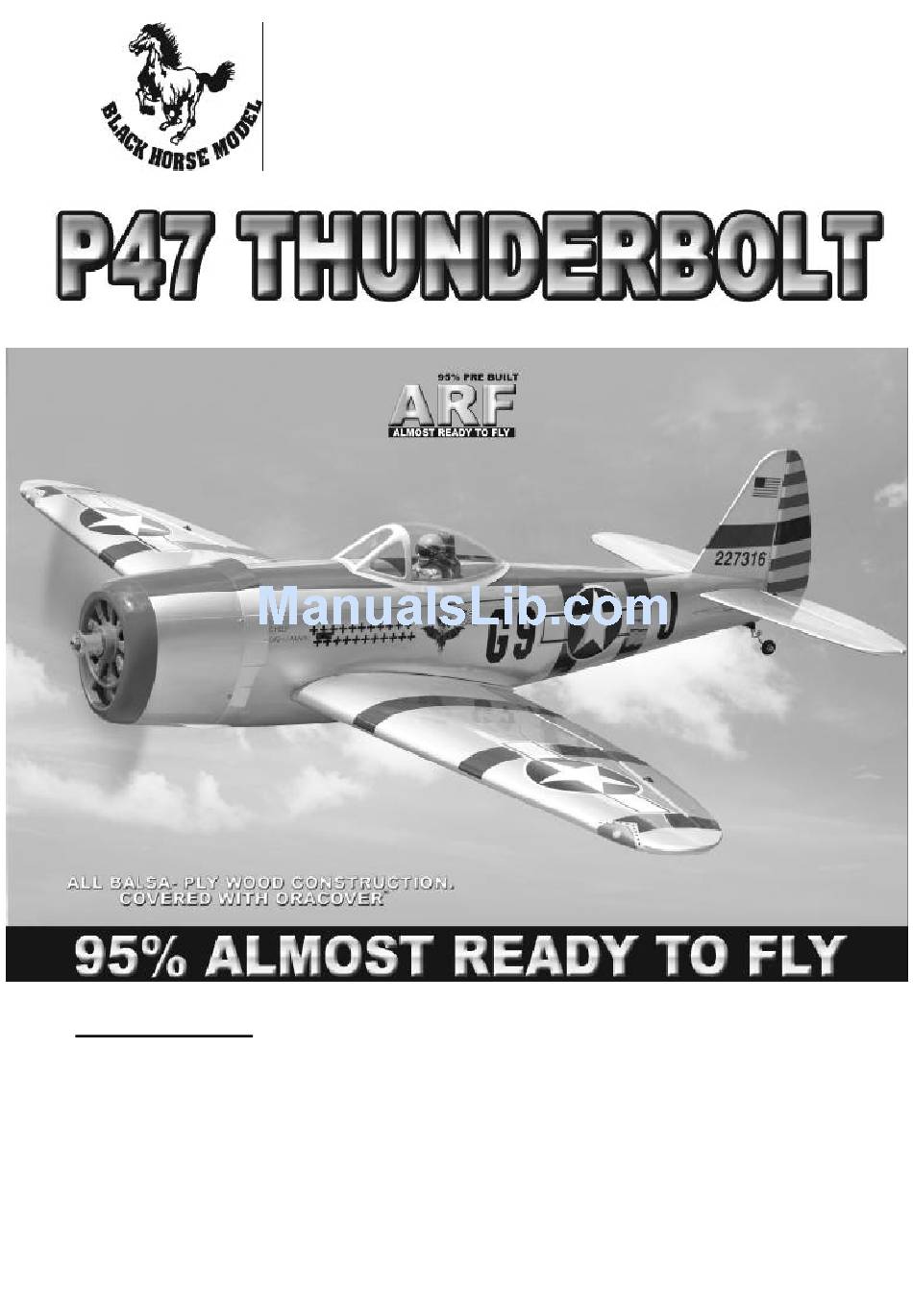

INSTRUCTION MANUAL BOOK
ITEM CODE: BH 36-A.
SPECIFICATION
1 Wingspan : 1,620 mm
64 in.
1 Length : 1,340 mm
53 in.
1 Weight :
3.8 kg
8.36 lbs.
Parts listing required (not included):
1 Engine :
O.S.GT 15 CC Gas.
1 Radio :
08 channels.
1 Servo :
08 servos + 2 servos retract (FUTABA,S3170G).
Made in Vietnam.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P47 Thunderbolt and is the answer not in the manual?

Questions and answers

Related Manuals for Black Horse Model P47 Thunderbolt

Summary of Contents for Black Horse Model P47 Thunderbolt

  • Page 1 INSTRUCTION MANUAL BOOK ITEM CODE: BH 36-A. SPECIFICATION 1 Wingspan : 1,620 mm 64 in. 1 Length : 1,340 mm 53 in. 1 Weight : 3.8 kg 8.36 lbs. Parts listing required (not included): 1 Engine : O.S.GT 15 CC Gas. 1 Radio : 08 channels.
  • Page 2 P47-THUNDERBOLT- Item code:BH36-A. INSTRUCTION MANUAL. This instruction manual is designed to help you build a great flying aeroplane. Please read this manual thoroughly before starting assembly of your P-47 THUNDERBOLT. Use the parts listing below to identify all parts. WARNING. Please be aware that this aeroplane is not a toy and if assembled or used incorrectly it is capable of causing injury to people or property.

  • Page 3: Safety Precaution

    P47 - THUNDERBOLT -Item code:BH36-A. INSTRUCTION MANUAL. Caution: this model is not a toy! Caution! do not heat the film more than is If you are a beginner to this type of powered absolutely necessary. If the air or the iron is model, please ask an experienced model flyer too hot, the film may melt and holes may be for help and support.

  • Page 4: Installing The Aileron - Flap Servos

    P47-THUNDERBOLT- Item code:BH36-A. INSTRUCTION MANUAL. REPLACEMENT SMALL PARTS 3x12mm 1.Door mounting wheel. 2.Retract main gear(2a& 2b). 3.Wheels. INSTALLING THE AILERON - FLAP 4. Fuel tank. SERVOS. 5. Tail gear set. 1 1) Install the rubber grommets and brass 6.Tie wrap. eyelets onto the aileron - flap servos.
  • Page 5 P47 - THUNDERBOLT -Item code:BH36-A. INSTRUCTION MANUAL. Cut the covering away from the slot. Electric wire Temporary pin to keep hinge centered. Thread 4. Instal servo tray with aileron servo into Assemble then apply drops of thin C/A to center of hinge,on both sides. the wing as same as picture below.

  • Page 6: Installing The Aileron Linkages

    P47-THUNDERBOLT- Item code:BH36-A. INSTRUCTION MANUAL. INSTALLING THE AILERON LINKAGES. Installing the aileron linkages as pictures below. 50mm 2x8mm. Attach the clevis to the outer hole in the con- trol horn. Control horn. 2 x 8 mm. Secure. Secure. Secure. Control horn.

  • Page 7: Installing The Flap Servos

    P47 - THUNDERBOLT -Item code:BH36-A. INSTRUCTION MANUAL. 2. INSTALLING THE FLAP CONTROL HORN. Flap Control horn. 3 x 20 mm Repeat the procedure for the other wing half. II. FLAP. 1.INSTALLING THE FLAP SERVOS. Flap servo. Secure. Control horn of the flap...
  • Page 8 P47-THUNDERBOLT- Item code:BH36-A. INSTRUCTION MANUAL. INSTALLING THE FLAP LINKAGES. Installing the aileron linkages as pictures below. Bottom of wing. 50mm Repeat the procedure for the other wing half. 2x8mm. INSTALLING RETRACTABLE LANDING GEAR. 3x15mm. 3x15mm. 2 x 8 mm Secure. Retract pushrod Secure.
  • Page 9 P47 - THUNDERBOLT -Item code:BH36-A. INSTRUCTION MANUAL. Secure. Mark point. Drill 2mm hole. 3x 15mm...
  • Page 10 P47-THUNDERBOLT- Item code:BH36-A. INSTRUCTION MANUAL. 3 x 4mm Secure. Secure. Secure.
  • Page 11 P47 - THUNDERBOLT -Item code:BH36-A. INSTRUCTION MANUAL. 3 x 6mm Secure. Drill a hole 3.5mm diameter Secure. Drill a hole 3.5mm diameter Servo of retractable.

  • Page 12: Installing The Engine Mount

    P47-THUNDERBOLT- Item code:BH36-A. INSTRUCTION MANUAL. Servo. Connector. Connector. Bottom side. Repeat the procedure for the other wing half. INSTALLING THE ENGINE MOUNT. THERE ARE TWO OPTIONS: 1. ELECTRIC MOTOR 2. ENGINE MOUNT. OPTION 1: ELECTRIC MOTOR. Secure.

  • Page 13: Option 2: Installing The Engine

    P47 - THUNDERBOLT -Item code:BH36-A. INSTRUCTION MANUAL. 1 3) Carefully bend the second nylon tube up at a 45 degree angle (using a cigarette lighter). This tube will be the vent tube to the muffler. 1 4) Carefully bend the third nylon tube down at a 45 degree angle (using a cigarette lighter).

  • Page 14: Installing The Throttle - Cable

    P47-THUNDERBOLT- Item code:BH36-A. INSTRUCTION MANUAL. Blow through one of the lines to ensure COWLING. the fuel lines have not become kinked inside the fuel tank compartment. Air should flow 1 1) Slide the fiberglass cowl over the en- through easily. gine and line up the back edge of the cowl with the marks you made on the fuselage.
  • Page 15 P47 - THUNDERBOLT -Item code:BH36-A. INSTRUCTION MANUAL. Front view. Drill a hole 3mm diameter. 3 x 12mm. Secure. Secure 3X12mm. Front view. ELEVATOR INSTALLATION. SERVO INSTALLATION. 1. Install the rubber grommets and brass collets into the elevator servo. Test fit the servo into the servo tray.

  • Page 16: Horizontal Stabilizer Installation

    P47-THUNDERBOLT- Item code:BH36-A. INSTRUCTION MANUAL. Assemble then apply drops of thin C/A to center of hinge,on both sides. HORIZONTAL STABILIZER INSTALLATION. Horizontal stabilizer installation. See picture below. Bottom side. 9 mm Cut the covering 142 mm away from the slot. Temporary pin to keep hinge centered.

  • Page 17: Elevator Control Horn Installa- Tion

    P47 - THUNDERBOLT -Item code:BH36-A. INSTRUCTION MANUAL. Top elevator ELEVATOR CONTROL HORN INSTALLA- TION. Elevator control horn install as same as the way of aileron control horn. Please see pictures below. 3 x 20 mm Secure. Epoxy glue. C/A glue Elevator control horn.

  • Page 18: Elevator Pushrod Installation

    P47-THUNDERBOLT- Item code:BH36-A. INSTRUCTION MANUAL. Secure. ELEVATOR PUSHROD INSTALLATION. Pushrod install as same as method of pushrod wing. See pictures below: 2 x 8mm Secure. Top side. Secure VERTICAL INSTALLATION. Rudder servo install as same as method of elevator servo. See picture below: Elevator pushrod.

  • Page 19: Rudder Control Horn Installation

    P47 - THUNDERBOLT -Item code:BH36-A. INSTRUCTION MANUAL. Temporary pin to keep hinge centered. Assemble then apply drops of thin C/A to center of hinge,on both sides. Hinge. Top side. RUDDER CONTROL HORN INSTALLATION. Rudder control horn install as same as the way of aileron control horn.

  • Page 20: Rudder Pushrod Installation

    P47-THUNDERBOLT- Item code:BH36-A. INSTRUCTION MANUAL. Rudder Secure. control horn. RUDDER PUSHROD INSTALLATION. 1 1. Rudder pushrod install as same as the way of aileron control horn. 1 2. Rudder push - pull system install as same as picture below. Rudder pushrod. 2 x 8mm Elevator pushrod.

  • Page 21: Installing The Switch

    P47 - THUNDERBOLT -Item code:BH36-A. INSTRUCTION MANUAL. Bottom side. 1 2. Mark the locations of the two mounting screws. Remove the tail wheel bracket and drill 2mm pilot holes at the locations marked. Top side. INSTALLING THE SWITCH. 1 1) Cut out the switch hole using a modeling knife.

  • Page 22: Wing Attachment

    P47-THUNDERBOLT- Item code:BH36-A. INSTRUCTION MANUAL. switch of battery Battery INSTALLING THE RECEIVER AND BATTERY. 1 1) Plug the servo leads and the switch Receiver lead into the receiver. You may want to plug an aileron extension into the receiver to make plugging in the aileron servo lead easier when you are installing the wing .
  • Page 23 P47 - THUNDERBOLT -Item code:BH36-A. INSTRUCTION MANUAL. See picture wing attach to fuselage. Wing bolt. Top side. BALANCING. 1 1) It is critical that your airplane be bal- anced correctly. Improper balance will cause your plane to lose control and crash. THE CENTER OF GRAVITY IS LOCATED 90mm BACK FROM THE LEADING EDGE OF THE WING, AT THE FUSELAGE.

  • Page 24: Pre-Flight Check

    P47-THUNDERBOLT- Item code:BH36-A. INSTRUCTION MANUAL. PRE-FLIGHT CHECK. 1 1) Completely charge your transmitter and receiver batteries before your first day of fly- ing. 1 2) Check every bolt and every glue joint in your plane to ensure that everything is tight and well bonded.
