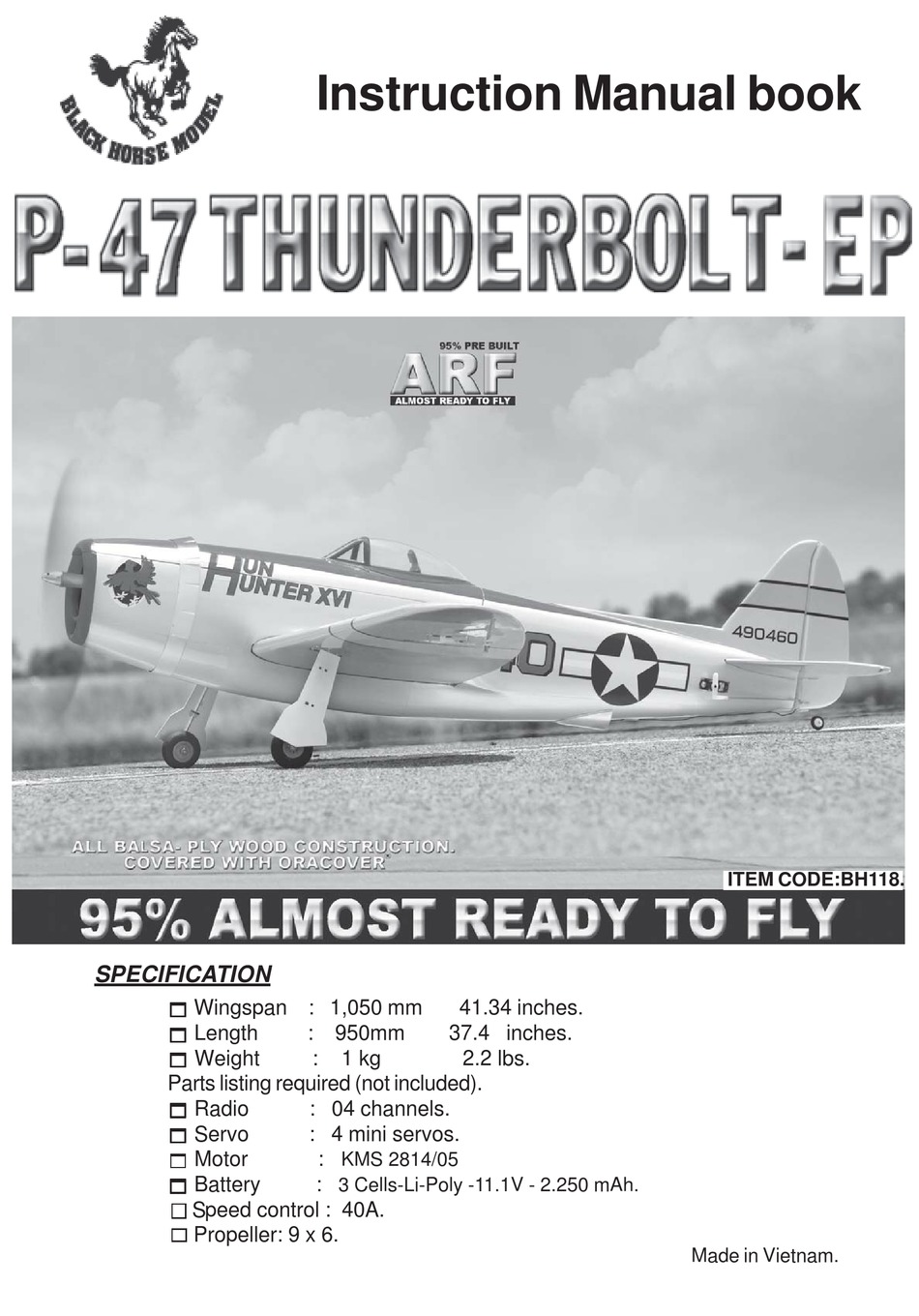

SPECIFICATION
     Wingspan : 1,050 mm
     Length
     Weight
Parts listing required (not included).
     Radio
     Servo
 Motor
     Battery
Speed control : 40A.
Propeller: 9 x 6.
Instruction Manual book
41.34 inches.
: 950mm
37.4 inches.
:
1 kg
2.2 lbs.
: 04 channels.
: 4 mini servos.
:
KMS 2814/05
:
3 Cells-Li-Poly -11.1V - 2.250 mAh.
ITEM CODE:BH118.
Made in Vietnam.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P-47 Thunderbolt-EP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Black Horse Model P-47 Thunderbolt-EP

  • Page 1 Instruction Manual book ITEM CODE:BH118. SPECIFICATION      Wingspan : 1,050 mm 41.34 inches.      Length : 950mm 37.4 inches.      Weight 1 kg 2.2 lbs. Parts listing required (not included). ...
  • Page 2: Parts List

    P-47 THUNDERBOLT-EP- Instruction Manual Item code: BH118 This instruction manual is designed to help you build a great flying aeroplane. Please read this P- 47 THUNDERBOLT- EP manual thoroughly before starting assembly of your . Use the parts listing below to identify all parts.
  • Page 3: Safety Precaution

    P-47 THUNDERBOLT-EP- Instruction Manual Item code: BH118 Caution: this model is not a toy! If you are a beginner to this type of powered model, please ask an experienced model flyer for help and support. If you attempt to operate the model without knowing what you are doing you could easily injure yourself or somebody else.
  • Page 4: Installing The Aileron Servo

    P-47 THUNDERBOLT-EP- Instruction Manual Item code: BH118 REPLACEMENT SMALL PARTS 2x 10mm. 3x 15 mm. 1.Door mounting wheel. Bottom side of left wing 2. Aluminium landing gear. 3. Plastic parts pushrod 4. Plastic part bottom fuselage. Aileron. 5. Plastic strap 6.
  • Page 5 P-47 THUNDERBOLT-EP- Instruction Manual Item code: BH118 bottom side. C/A glue. Servo tray. C/A glue. Remove covering C/A glue. Servo tray. Top side. Servo C/A glue. Repeat the procedure for the other wing half.  2. Using a modeling knife, remove the cov-...
  • Page 6 P-47 THUNDERBOLT-EP- Instruction Manual Item code: BH118  3. Using the thread as a guide and using  5. Instal servo tray with aileron servo into masking tape, tape the servo lead to the end the wing as same as picture below.
  • Page 7: Installing Landing Gear

    P-47 THUNDERBOLT-EP- Instruction Manual Item code: BH118 Bottom side. A+B Epoxy PLUS glue Repeat the procedure for the other wing half. INSTALLING LANDING GEAR. See pictures below: A+B Epoxy PLUS Glue. Control horn of the aileron. 3.INSTALLING THE AILERON LINKAGES.
  • Page 8 P-47 THUNDERBOLT-EP- Instruction Manual Item code: BH118 A+B Epoxy PLUS glue 2 x10mm Secure. Secure.
  • Page 9 P-47 THUNDERBOLT-EP- Instruction Manual Item code: BH118 C/A glue Bottom side. P l a s t i c strap Repeat the procedure for the other gear. INSTALLING ELECTRIC MOTOR. See pictures below: Plastic strap C/A glue Motor mount wood: 3x 15mm...
  • Page 10 P-47 THUNDERBOLT-EP- Instruction Manual Item code: BH118 3x 15mm Epoxy glue. Secure. C/A glue. Secure.
  • Page 11: Installing The Elevator Servo

    P-47 THUNDERBOLT-EP- Instruction Manual Item code: BH118 Front view. INSTALLING THE ELEVATOR SERVO.  1. Install the rubber grommets and brass collets into the elevator servo. Test fit the servo into the servo tray.  2. Mount the servo to the tray using the mounting screws provided with your radio system.
  • Page 12 P-47 THUNDERBOLT-EP- Instruction Manual Item code: BH118 Epoxy glue C/A glue. A+B Epoxy PLUS Glue. Epoxy glue...
  • Page 13 P-47 THUNDERBOLT-EP- Instruction Manual Item code: BH118 hinge Bottom side. ELEVATOR CONTROL HORN INSTALLATION. Elevator control horn install as same as the way of aileron control horn. Please see pic- tures below. Control horn of elevator. C/A glue. A+B Epoxy PLUS Glue.
  • Page 14: Elevator Pushrod Installation

    P-47 THUNDERBOLT-EP- Instruction Manual Item code: BH118 ELEVATOR PUSHROD INSTALLATION. RUDDER INSTALLATION. Rudder servo install as same as method of  Elevator pushrod install as same as the way elevator servo. See picture below: of aileron pushrod. See picture below: e l e v a t o r pushrod.
  • Page 15 P-47 THUNDERBOLT-EP- Instruction Manual Item code: BH118 Top side. Rudder control horn RUDDER PUSHROD INSTALLATION. RUDDER CONTROL HORN INSTALLA-  Rudder pushrod install as same as the way TION. of aileron pushrod. Rudder control horn install as same as the way of aileron control horn.
  • Page 16 P-47 THUNDERBOLT-EP- Instruction Manual Item code: BH118 C/A glue. Rudder pushrod. Bottom side. Plastic parts of pushrod. Top side. Cut. Plastic parts bottom fuselage...
  • Page 17 P-47 THUNDERBOLT-EP- Instruction Manual Item code: BH118 C/A glue. Tie wrap. Battery Top side. Battery INSTALLING THE RECEIVER AND BATTERY.       1) Plug the servo leads and the switch lead into the receiver. You may want to plug...
  • Page 18: Wing Attachment

    P-47 THUNDERBOLT-EP- Instruction Manual Item code: BH118 WING ATTACHMENT. Locate the aluminium wing dihedral brace. aluminium 9mm wing dihedral brace. 222 mm *** Test fit the aluminium tube dihedral brace into each wing haft. The brace should slide in easily. If not, use 220 grit sand around the edges and ends of the brace until it fits prop- erly.
  • Page 19: Control Throws

    P-47 THUNDERBOLT-EP- Instruction Manual Item code: BH118 Lift the model. If the tail drops when you lift, the model is “tail heavy” and you must add weigh* to the nose. If the nose drops, it is “nose heavy” and you must add weight* to the tail to balance.
  • Page 20: Pre-Flight Check

    P-47 THUNDERBOLT-EP- Instruction Manual Item code: BH118 PRE-FLIGHT CHECK.       1. Completely charge your transmitter and receiver batteries before your first day of fly- ing.       2. Check every bolt and every glue joint in your plane to ensure that everything is tight and well bonded.
