5.16.2.1 5-Wire UART Topology

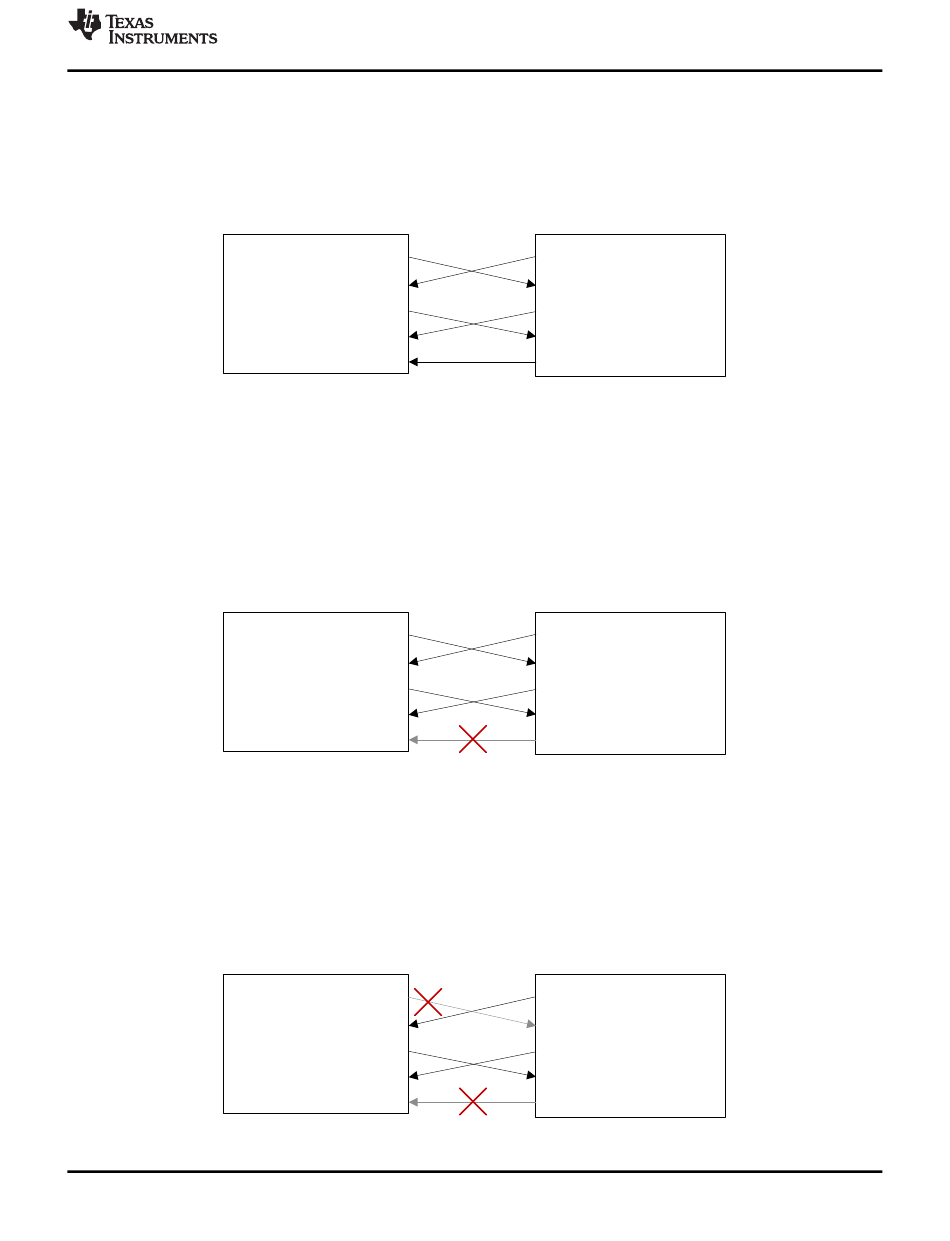

Figure 5-10 shows the typical 5-wire UART topology comprised of four standard UART lines plus one IRQ
line from the device to the host controller to allow efficient low power mode.
Figure 5-10 shows the typical and recommended UART topology because it offers the maximum
communication reliability and flexibility between the host and the SimpleLink device.
5.16.2.2 4-Wire UART Topology
The 4-wire UART topology eliminates the host IRQ line (see
one of the following conditions to be met:
• Host is always awake or active.
• Host goes to sleep, but the UART module has receiver start-edge detection for automatic wake up and
does not lose data.
5.16.2.3 3-Wire UART Topology
The 3-wire UART topology requires only the following lines (see
• RX
• TX
• nCTS
Copyright © 2019–2020, Texas Instruments Incorporated
nRTS
nCTS
HOST MCU
TX
UART
RX
HOST_INTR(IRQ)
Figure 5-10. Typical 5-Wire UART Topology
nRTS
nCTS
HOST MCU
TX
UART
RX
HOST_INTR(IRQ)
Figure 5-11. 4-Wire UART Configuration
nRTS
nCTS
HOST MCU
TX
UART
RX
HOST_INTR(IRQ)
Figure 5-12. 3-Wire UART Topology
Submit Documentation Feedback
Product Folder Links:
SWRS225B – FEBRUARY 2019 – REVISED MARCH 2020
nRTS
nCTS
CC3135MOD
TX
UART
RX
HOST_INTR(IRQ)
Figure 5-11). Using this topology requires
nRTS
nCTS
CC3135MOD
TX
UART
RX
HOST_INTR(IRQ)
Figure 5-12).
nRTS
nCTS
CC3135MOD
TX
UART
RX
HOST_INTR(IRQ)
CC3135MOD
CC3135MOD
