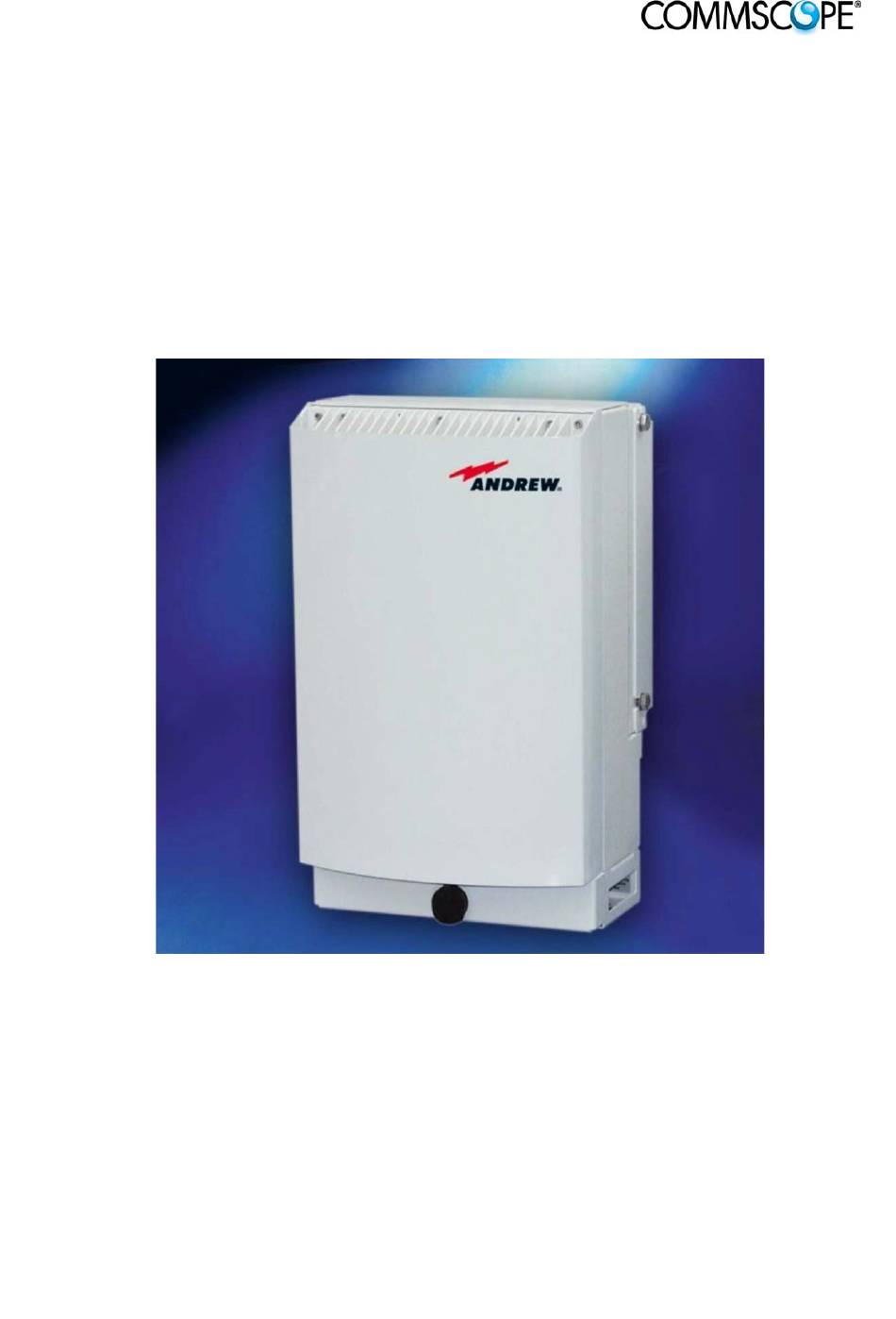

- Page 1 Optical Remote Unit ION™-M8P S Manual MF0132APB...
- Page 2 © Copyright 2012 CommScope, Inc. All rights reserved. Andrew Solutions is a trademark of CommScope, Inc. All information contained in this manual has been revised thoroughly. Yet Andrew Solutions accepts no liability for any omissions or faults. Andrew Solutions reserves the right to change all hard- and software characteristics without notice.
-
Page 3: Table Of Contents
HEALTH AND SAFETY WARNINGS 1.3. ABOUT ANDREW SOLUTIONS 1.4. INTERNATIONAL CONTACT ADDRESSES FOR CUSTOMER SUPPORT 2. INTRODUCTION 2.1. PURPOSE 2.2. THE ION-M8P S (INTELLIGENT OPTICAL NETWORK; MMR) 2.3. OPTIONAL EQUIPMENT - RELAY ALARM CONNECTING BOARD 3. COMMISSIONING 3.1. MECHANICAL INSTALLATION 3.1.1. General 3.1.2. - Page 4 4.5.2. Layout and Connector Description 4.6. REDUNDANCY RELAY CONFIGURATION 4.7. TROUBLESHOOTING 5. MAINTENANCE 5.1. GENERAL 5.2. OPENING AND CLOSING OF THE CABINET 5.3. REPLACEMENT OF POWER SUPPLY (AC & DC TYPES) 5.4. REPLACEMENT OF FAN UNIT 6. SPECIFICATIONS 6.1.1. Electrical Specifications 6.1.2.
- Page 5 FIGURES AND TABLES figure 3-1 Wall mounting................... 16 figure 3-2 Pole mounting ..................16 figure 3-3 ION-M8P S, connector flange, exemplary ..........18 figure 3-4 Grounding bolt ..................18 figure 3-5 AC mains plug ..................19 figure 3-6 DC mains plug ..................19 figure 3-7 Protective-plug assembly .................
-
Page 6: General
1. GENERAL 1.1. USED ABBREVIATIONS 3GPP Generation Partnership Project Generation Automatic Level Control AMPS American Mobile Phone System or Advanced Mobile Phone System Advanced Wireless Services Battery Backup Unit BCCH Broadcast Control Channel BITE Built-In Test Equipment Base Transceiver Station CDMA Code Division Multiple Access CEPT... - Page 7 Serial Clock Serial Data SISO Single Input Single Output Switching Point Detector SRMU Subrack Master Unit = OTRx (Optical Transceiver) Traffic Channel Time-Division Duplex TDMA Time Division Multiple Access Transmitter Uplink Universal Measurement Receiver UMTS Universal Mobile Telecommunication System Uninterruptible Power Supply VSWR Voltage Standing Wave Ratio Wavelength Division Multiplex...
-
Page 8: Health And Safety Warnings
1.2. HEALTH AND SAFETY WARNINGS 1. Only suitably qualified personnel is allowed to work on this unit and only after becoming familiar with all safety notices, installation, operation and maintenance procedures contained in this manual. 2. Read and obey all the warning labels attached to the unit. Make sure that the warning labels are kept in a legible condition and replace any missing or damaged labels. - Page 9 12. Before opening the unit, disconnect mains. 13. ESD precautions must be observed! Before commencing maintenance work, use the available grounding system to connect ESD protection measures. 14. This unit complies with European standard EN60950. 15. Make sure the repeater settings are according to the intended use (see also product information of manufacturer) and regulatory requirements are met.
-
Page 10: About Andrew Solutions
Andrew Wireless Systems GmbH has unparalleled experience in providing RF coverage and capacity solution for wireless networks in both indoor and outdoor environment and belongs to Andrew Solutions, a CommScope Company. Andrew Solutions is the foremost supplier of one-stop, end-to-end radio frequency (RF) solutions. -
Page 11: International Contact Addresses For Customer Support
1.4. INTERNATIONAL CONTACT ADDRESSES FOR CUSTOMER SUPPORT Americas: Canada United States Andrew Solutions, Andrew Solutions Canada Andrew LLC, A CommScope Company 620 North Greenfield Parkway 620 North Greenfield Parkway Mail Garner, NC 27529 Mail Garner, NC 27529 U.S.A. U.S.A. +1-905-878-3457 (Office) - Page 12 +41-62-386-1261 E-mail WIsupport.austria@commscope.com E-mail WIsupport.ch@commscope.com Italy Spain and Portugal Andrew Solutions España S.A. Commscope Italy S.r.l., Faenza, Italy A Commscope Company Avda. de Europa, 4 - 2ª pta. Via Mengolina, 20 Parque Empresarial La Moraleja Mail 48018 Faenza (RA) Mail...
-
Page 13: Introduction
The ION-M8P S transports signals on the RF layer in a very inexpensive manner. This means that multiple operators and multiple technologies are moved simultaneously from a cluster of base stations to a remote location over the same fiber. -
Page 14: Optional Equipment - Relay Alarm Connecting Board
The ION is easily set-up and supervised via a graphical user interface (GUI). Remote units can be commissioned through the use of built-in test equipment. An auto leveling function compensates for the optical link loss making installation easy and quick. The entire system may be monitored remotely via an Andrew OMC. This is a comprehensive management platform with SNMP protocol and X.733 standard implemented. -
Page 15: Commissioning
3. COMMISSIONING 3.1. MECHANICAL INSTALLATION 3.1.1. General Read the health and safety warnings in chapter 1.2 Health and Safety Warnings. 1. Do not install the unit in a way or at a place where the specifications outlined in the Environmental and Safety Specifications leaflet of the manufacturer are not met. -
Page 16: Wall And Pole Mounting
3.1.2. Wall and Pole Mounting Wall and pole mounting equipment for the unit is available. For the according mounting please refer to the mounting plan (drawing) that is part of the delivery. V1628M1 V1628M0 figure 3-1 Wall mounting figure 3-2 Pole mounting 16 of 42... -
Page 17: Electrical Installation
3.2. ELECTRICAL INSTALLATION 3.2.1. General Read the health and safety warnings in chapter 1.2 Health and Safety Warnings. 1. This unit contains dangerous voltages. Loss of life, severe personal injury or property damage can be the result if the instructions contained in this manual are not followed. -
Page 18: Connections
Optical main unit Redundant RU connector figure 3-3 ION-M8P S, connector flange, exemplary 3.2.3. Grounding Grounding must be carried out. Connect an earth-bonding cable to the grounding connection provided at the outside of the remote unit (see chapter 3.2.2 Connections). Do not use the grounding connection to connect external devices. -
Page 19: Power Connection
After loosening the hex nut, connect the earth-bonding cable between the two washers as illustrated in the figure above. Then, fasten all parts again with the hex nut. The PE cables must have a minimum cross section of 16mm 3.2.4. Power Connection Before connecting electrical power to the units, the system must be grounded as described in the previous chapter. -
Page 20: Connection Of The Antenna Cables
Note: Do not connect or disconnect the power cord at the mains connector while power is on. Turn off mains * power before connecting the power cord at the remote unit, then, engage mains again. * Mains power must be interrupted with an external mains breaker. For the mains breaker, observe the following recommendation: 120 Volt / 20 Amp max. -
Page 21: Optical-Fibre-Cable Connection - Rules
A protection for the feeding into units must be given. For ION-M8P S, the system attenuation of the optical fibres, including the connectors, must not exceed 10 System attenuation and attenuation of optical components must be determined. -
Page 22: Protective Plug
Remove fibre-optic protective caps. Do not bend the fibre-optic cable in a tight radius (< 4 cm) as this may cause cable damage and interrupt transmission. Using high-grade alcohol and lint-free cotton cleaning swabs, clean the end of the fibre-optic cable that will be inserted in the optical connectors on the donor interface box. - Page 23 For plug assembly, observe the following instruction: 1. Pass one or two contacts through the backshell and the clamp ring. 2. Place the contact(s) on the lower insulation body by pushing the groove of the contact into the cavity. If there is only one contact, cavity A must be used. * 3.
-
Page 24: Protective-Tube Kit
7. Bring the plastic ring over the cable(s), push it into the backshell and compress the seals and plastic ring by screwing the clamp ring tight (no gap) using a spanner with opening 20. *** Screw tight until gap is closed 8. -
Page 25: Figure 3-8 Tube-Kit Installation
prot ect ive plug f ibre cable plast ic ring Screw t he reducer t o t he prot ect ive plug reducer backshell wit hout gap. coupling Place t he appropriat e seal part s (wit h) one groove f or one cont act or t wo grooves f or t wo cont act s) over t he cable(s) and push t hem int o... -
Page 26: Commissioning
3.6. COMMISSIONING Read the health and safety warnings in chapter 1.2 Health and Safety Warnings as well as the description carefully to avoid mistakes and proceed step by step as described! Do not operate the remote unit without terminating the antenna connectors. The antenna connectors may be terminated by connecting them to their respective antennas or to a dummy load. - Page 27 Commissioning an ION-M Remote Unit Manual for Remote Start Unit Philips Preperation screwdriver Unpack RU, RU accessories and mounting kit. Mounting kit Spanner, size 13 mm Drilling Mechanical installation machine Fasten wall or pole mounting kit to wall or Dowels pole.
- Page 28 LED on? Check power switch inside RU (RUs with door). Check mains cabling. Check mains power. LED status Internal Error Change power supply (RUs with a door) Reduce environmental temperature. Eliminate thermal short circuit. Disconnect and connect mains. Fans Orange should run.
-
Page 29: Alarms
4. ALARMS 4.1. BITE AND ALARMS The Built-In Test concept comprises the monitoring of the power supplies, the power amplifiers and the optical interface. All occurring alarms can be checked via software at the master unit. 4.2. HANDLING OF ALARMS As soon as the software acknowledges a valid alarm, a message is transmitted to the master unit. -
Page 30: Figure 4-1 Alarm Triggering
Status LED indication Alarms Possible on-site measures Alarms directly related to RU: Change power supply (RUs with door). Power 28 V Replace the affected remote unit. Reduce environmental temperature. Temperature Eliminate thermal short circuit. Disconnect and connect mains. Fans Fan * should run. -
Page 31: Relay Alarm Connecting Board
4.5. RELAY ALARM CONNECTING BOARD 4.5.1. External-Alarm Inputs and Outputs There are four alarm inputs and four alarm outputs. The alarm outputs are potential- free relay contacts. They can be used to monitor alarms with an external-alarm indicator. Each alarm output can be set individually to any alarm at the remote unit. For details please refer to the according chapter in the software manual of the master unit. -
Page 32: Layout And Connector Description
4.5.2. Layout and Connector Description +28 V Ext. Alarm Inputs Alarm Outputs RF Relay for redundancy switchover figure 4-2 Relay alarm connecting board, description of connectors Connector Description Connector Description Ext. Alarm IN 1 Ext. Alarm 1 Common Ext. Alarm Ext. -
Page 33: Redundancy Relay Configuration
The alarm outputs are potential-free. They can be used to monitor alarms with an external alarm indicator. Devices connected to these outputs must not exceed a maximum switching power of 28 Vdc, 0.5 A. For the location of the connecting clamps of the alarm outputs see figure above. -
Page 34: Troubleshooting
Via the redundancy relay (see illustration below), signals are switched from the Main Unit to the Substitute Unit in case an alarm raise appears in the main unit. Alarms that shall switch service to Substitute Unit in alarm condition can be selected via web interface, see description in separate software manual. -
Page 35: Maintenance
Note: The remote unit does not require preventative maintenance measures. Maintenance of the ION-M8P S should be performed on a FRU (Field Replaceable Unit) basis only. Do not damage the warranty labels on the components, as this voids the warranty. -
Page 36: Opening And Closing Of The Cabinet
5.2. OPENING AND CLOSING OF THE CABINET Before opening the cabinet of the unit, observe the instructions in chapter 3.1.1 General. To open the cabinet of the remote unit, first dismount the locker by unlocking it with the key Front cover (which is part of the delivery) and pulling it out carefully in direction of the arrow marked in... -
Page 37: Replacement Of Power Supply (Ac & Dc Types)
5.3. REPLACEMENT OF POWER SUPPLY (AC & DC TYPES) Note: In standard delivery, only the AC power supply unit (PSU) is equipped. The DC PSU may only be equipped as an option. To remove a power supply (AC and/or DC), first switch off the power supply, disconnect mains (primary DC or AC connector), mains cable and DC connector. -
Page 38: Replacement Of Fan Unit
5.4. REPLACEMENT OF FAN UNIT The fan unit is an FRU in the ION-M8P S. figure 5-5 Fan unit screws Unscrew the three M5x16 socket-head screws by which the fan unit is screwed to the cabinet. Be careful not to lose the according washers. -
Page 39: Specifications
6. SPECIFICATIONS 6.1.1. Electrical Specifications ION-M7P/8P S Electrical 85 Vac to 264 Vac Mains power Power supply 115 Vac or 230 Vac Power consumption 550 watts Optical Connectors E2000/APC 8° Optical return loss 45 dB minimum Fiber type Single mode E9/125 mm Optical link budget 0 dB to 10 dB 6.1.2. -
Page 40: Spare Parts List
Maintenance of the ION-M8P S should be performed on a FRU (Field Replaceable Unit) basis only. Do not damage the warranty labels on the components, as this voids the warranty. -
Page 41: Index
7. INDEX Mechanical ............15 Abbreviations............6 Address of Andrew Wireless Systems GmbH..12 LED ..............29 Alarms Alarm Status ............ 29 Bite and Alarms ..........29 External............31 Maintenance............35 Handling of Alarms .......... 29 Mounting List ..............34 General............ -
Page 42: List Of Changes
8. LIST OF CHANGES Version Changes Release Date MF0132APA 12-April-2010 MF0132APB - layout of first & last page changed 13-February-2012 - designation of RU modified (first page) - chapters 1.2, 1.3 & 1.4 updated - former chapters 3.1 & 3.2 deleted - chapters 3.2.1 &...
