This section is used to define the main parameters of BACnet MS/TP line. The
means of the fields are:
In the field "Baudrate" it is possible to select the baudrate of the BACnet;
In the field "Parity" it is possible to select the parity of the line;
In the field "BACnet Device
the BACnet node;
In the field "MAC Address" it is possible to define the MAC of BACnet node
(from 0 to 254);
The field "Max Masters" specifies the highest allowable address for master
nodes. The value shall be less than or equal to 127;
The field "Max Info Frames" specifies the maximum number of information
frames the node may send before it must pass the token;
In the field "Device Istance" it is possible to assign a number to the BACnet
node (Used for the Device Istance).
ADFweb.com S.r.l.
MS/TP):
Name" is possible to insert the name to give to
User Manual BACnet Master / MQTT
Document code: MN67937_ENG Revision 1.000

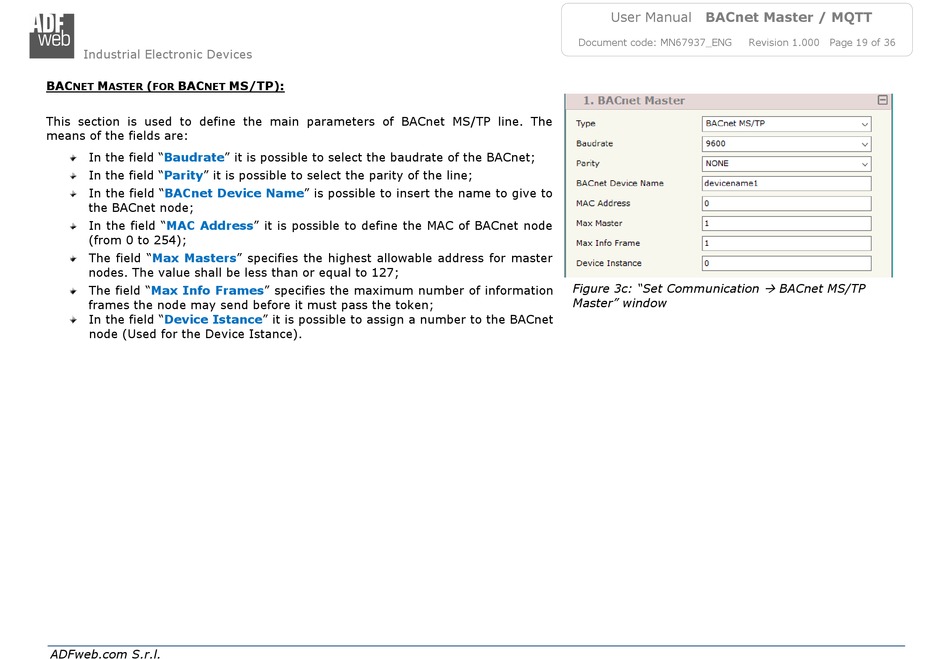

Figure 3c: "Set Communication
