BAC M ( BAC /IP):
NET ASTER FOR NET
This section is used to define the main parameters of BACnet/IP line. The means of
the fields are:
In the field "IP ADDRESS" the IP address to assign to the converter is
defined;
In the field "SUBNET Mask" the SubNet Mask of the converter is defined;
In the field "GATEWAY" the default gateway of the network is defined. This
feature can be enabled or disabled pressing the Check Box field. This feature
is used for going out of the net;
In the field "Port" the port used for BACnet communication is defined. The
default port used for BACnet communication is 47808, but it is possible to
insert any value (except 10000 and 10001);
In the field "BACnet Device
defined;
In the field "Device Identifier" the number to the BACnet node (used for
the Device Identifier) is defined;
In the field "TimeOut Polling (ms)" the timeout for the BACnet requests is
defined.
ADFweb.com S.r.l.
Name" the name to the BACnet node is
User Manual BACnet Master / MQTT
Document code: MN67937_ENG Revision 1.000

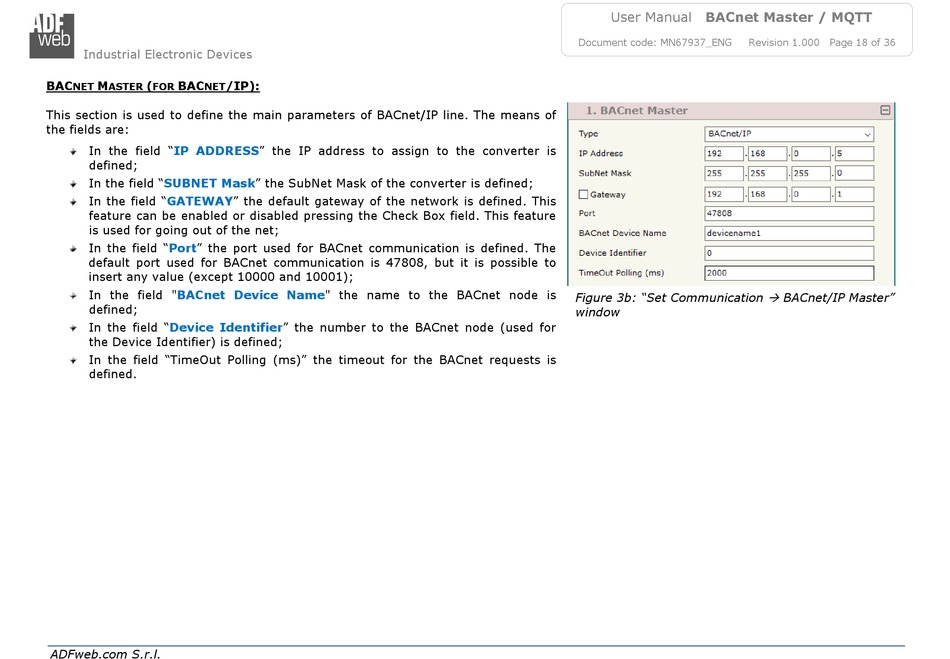

Figure 3b: "Set Communication
