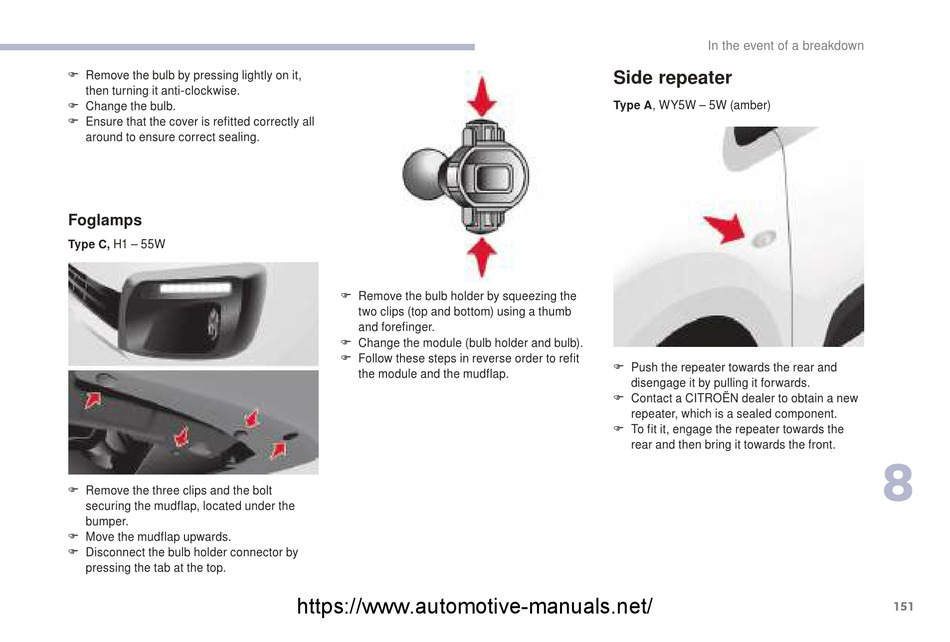

CITROEN BERLINGO MULTISPACE Handbook page 153

F Remove the bulb by pressing lightly on it,
then turning it anti-clockwise.
F Change the bulb.
F Ensure that the cover is refitted correctly all
around to ensure correct sealing.
Foglamps
Type C, H1 – 55W
F Remove the three clips and the bolt
securing the mudflap, located under the
bumper.
F Move the mudflap upwards.
F Disconnect the bulb holder connector by
pressing the tab at the top.
F Remove the bulb holder by squeezing the
two clips (top and bottom) using a thumb
and forefinger.
F Change the module (bulb holder and bulb).
F Follow these steps in reverse order to refit
the module and the mudflap.
https://www.automotive-manuals.net/
In the event of a breakdown
Side repeater
Type A, WY5W – 5W (amber)
F Push the repeater towards the rear and
disengage it by pulling it forwards.
F Contact a CITROËN dealer to obtain a new
repeater, which is a sealed component.
F To fit it, engage the repeater towards the
rear and then bring it towards the front.
8
151
