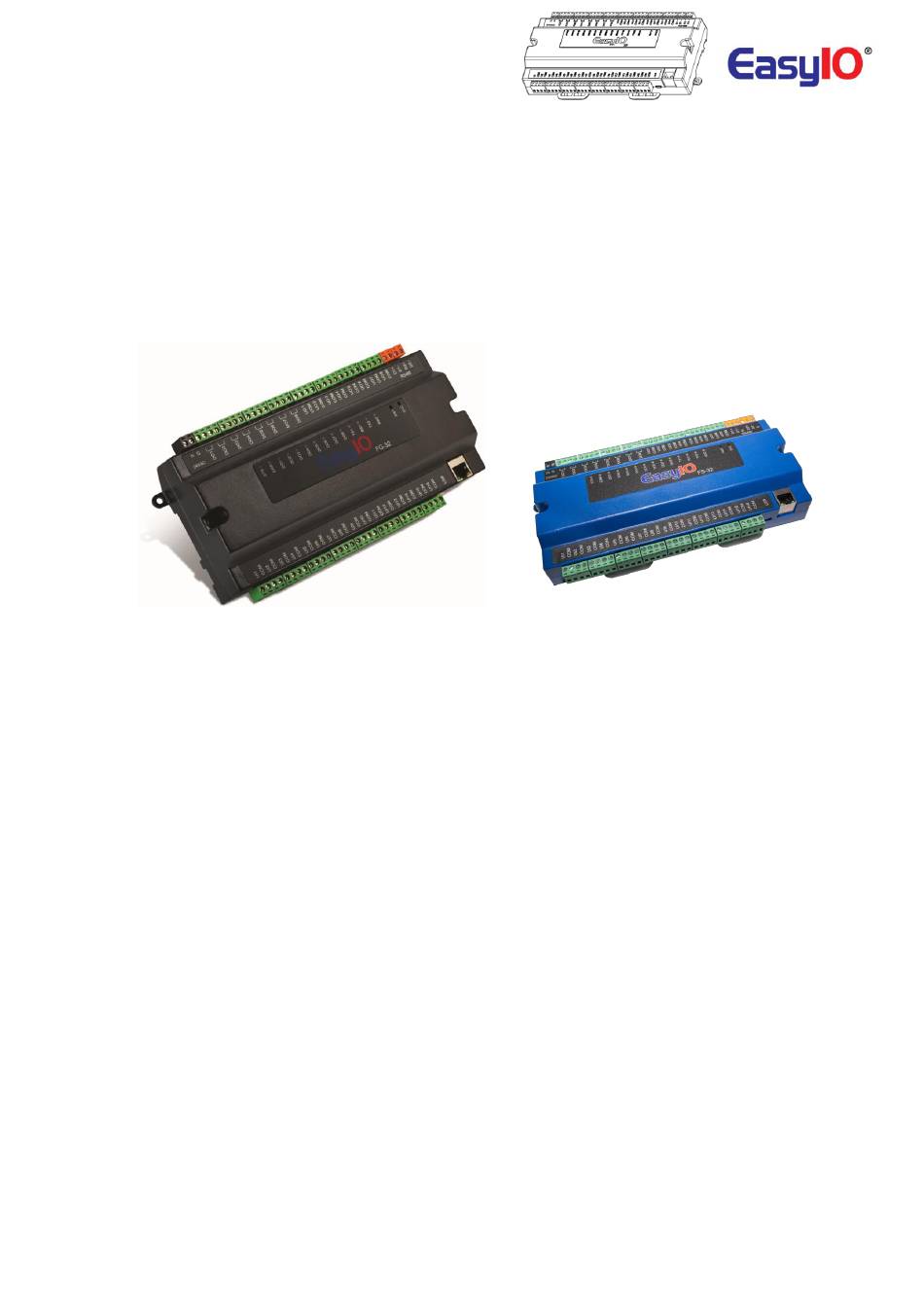

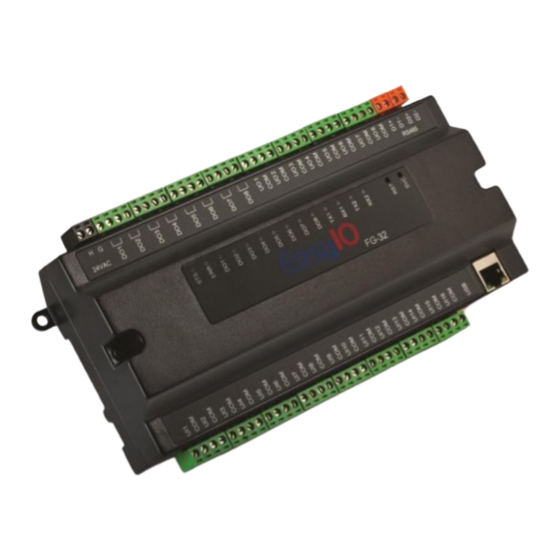

- Page 1 FG Series BACnet v2.3 EasyIO FG Series and FS Series BACnet User Guide...
- Page 2 FG Series BACnet v2.3 Document Change Log March 2014 Document created. Only support BACnet IP Server for EasyIO FG Series June 2014 Major changes in Bacnet protocol implementation. July 2014 Bacnet Server and Bacnet Client merge into 1 single kit.
- Page 3 While every effort has been made to assure the accuracy of this document, EasyIO Holdings Pte Ltd is not responsible for damages of any kind, including without limitation consequential damages, arising from the application of the information contained herein.
- Page 4 FG Series BACnet v2.3 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
-
Page 5: Table Of Contents
FG Series BACnet v2.3 Table of Contents Introduction ................................... 6 Prerequisites .................................. 6 BACnet Server - Configuration Limitations ........................7 BACnet Server Configuration ............................8 BACnet Client - Configuration Limitations ........................13 Device and Points limitation ............................ 13 Objects supported ..............................13 BACnet Client Configuration ............................ -
Page 6: Introduction
Oct 2018 or later. Latest CPT at the time of the document is 17 Dec 2018. 2. FG Series firmware version v1.5b50 or later (EasyIO FG) and v2.0b50 or later for (EasyIO FG+) is required for best performance. 3. For FS Series, firmware has to be V3.0b50 or later. -
Page 7: Bacnet Server - Configuration Limitations
FG Series BACnet v2.3 BACnet Server - Configuration Limitations Objects Properties Supported Optional Total Objects Total Objects supported Properties ( FG+ Series) ( FS Series ) Supported Device Object Identifier Max Master Object Name Max Info Frames APDU Timeout Description... -
Page 8: Bacnet Server Configuration
Step 2 Choose easyioFGBACnet from kit library. Drag & drop the BACService into your App. The object can be dropped in the EasyIO folder or a new folder can be created for the Service Object. In the example below, the object is dropped into a new folder named “BACnet”. - Page 9 If BBMD is not preset or required in the network these properties can be left blank. EasyIO FG+ and FS Series is NOT a BBMD Device nor BACnet Router. If the communications stack if configured correctly, the status will display as OK.
- Page 10 FG Series BACnet v2.3 Step 4 From the easyioFGBACnet drag & drop the BACnetServerNetwork into your App. The object is recommended to be drop under the BACnet service object. The BACnet server and BACnet client object can be coexist under the BACnet service object.
- Page 11 FG Series BACnet v2.3 Step 6 Drop BACServerBv or BACServerAv type object under the Network Object. Note that the register object must be a child of (dropped below) the Network object. It is possible to create folders below the Network Object to allow logical management of the register objects.
- Page 12 FG Series BACnet v2.3 By default the register are named according to the type followed by the address number. You can enter a preferred name for the object by right click at the object and select action “selObjectName” or manually key in a the property side bar.
-
Page 13: Bacnet Client - Configuration Limitations
FG Series BACnet v2.3 BACnet Client - Configuration Limitations Device and Points limitation Maximum Recommendation Matrix FG+ Series FS Series ( A combination of IP device and MS/TP Device ) Device Count Points Count per Device Objects supported Object Property Supported... -
Page 14: Bacnet Client Configuration
The BACnet driver easyioFGBACnet is dependent on the installation of the easyioFGDriver. These kit need to be installed to enable configuration of the BACnet client network in a FG Series device. Diagram below shows an EasyIO FG as BACnet IP client. - Page 15 Step 2 Choose easyioFGBACnet from kit library. Drag & drop the BACService into your App. The object can be dropped in the EasyIO folder or a new folder can be created for the Service Object. In the example below, the object is dropped into a new folder named “BACnet”.
- Page 16 FG Series BACnet v2.3 Step 3 Click at the service object to access the property at the property side bar. Configuration of the BACnet communication parameters such MSTP MAC address is carried out here. Select BACnet communication stack to be enabled. By default both IP stack and MSTP stack is disable.
- Page 17 If the communications stack if configured correctly, the status will display as OK. Step 5 Choose easyioFGBACnet from kit library. Drag and drop the BACClientNetwork into your App . The object can be dropped in the EasyIO folder or a new folder can be created for the Bacnet Network Object.
- Page 18 FG Series BACnet v2.3 In the example below, the object is dropped into a new folder named “Bacnet”. ***The BACnet server and BACnet client object can be coexist under the BACnet service object. *** ***There can only be one (1) BACnet service object in a controller. *** ***No duplicate BACnet Service object is allowed.
- Page 19 FG Series BACnet v2.3 Step 7 Double click at the BACnet Client object. This will display the CPT custom bacnet device discovery view. To change the view to the standard wire sheet view, click the top right corner and select “Wire Sheet View”.
- Page 20 FG Series BACnet v2.3 Step 9 Drag and drop the desire BACnet device into the Subscribed Pane. Optionally double click the device at the discovered pane can be done to add the controller into the subscribed pane. Step 10 Double click a BACnet subscribed device to perform the BACnet point’s discovery.
- Page 21 FG Series BACnet v2.3 ***Tips Each device can only have up to 32 BACnet objects. If more is needed, duplicate the device and assign the same device ID to both device. Step 12 To view the BACnet objects (subscribed BACnet points) in workspace, toggle the wire sheet view.
-
Page 22: Bacnet Ms/Tp Best Practice (Eia-485)
The TX and RX voltage is measured relative to this Gnd conductor. Connecting this to the Ground will cause a incorrect voltage and may even damaged the transceiver. In case there is no signal reference terminal (such as EasyIO FG Series), you can connect this 3 conductor to any common terminal within the controller (for example EasyIO FG UO common terminal).
