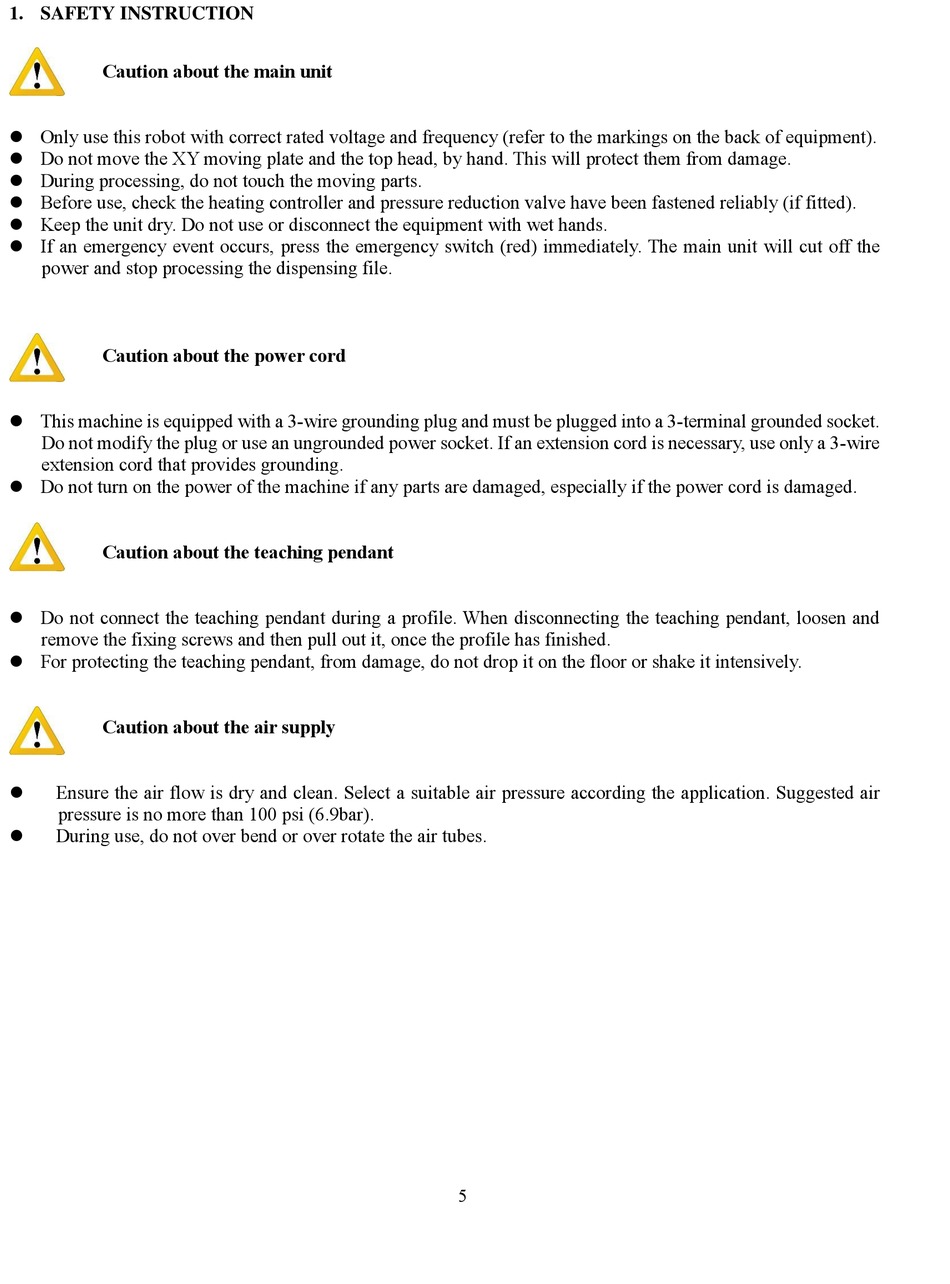

1. SAFETY INSTRUCTION
Caution about the main unit
⚫ Only use this robot with correct rated voltage and frequency (refer to the markings on the back of equipment).
⚫ Do not move the XY moving plate and the top head, by hand. This will protect them from damage.
⚫ During processing, do not touch the moving parts.
⚫ Before use, check the heating controller and pressure reduction valve have been fastened reliably (if fitted).
⚫ Keep the unit dry. Do not use or disconnect the equipment with wet hands.
⚫ If an emergency event occurs, press the emergency switch (red) immediately. The main unit will cut off the
power and stop processing the dispensing file.
Caution about the power cord
⚫ This machine is equipped with a 3-wire grounding plug and must be plugged into a 3-terminal grounded socket.
Do not modify the plug or use an ungrounded power socket. If an extension cord is necessary, use only a 3-wire
extension cord that provides grounding.
⚫ Do not turn on the power of the machine if any parts are damaged, especially if the power cord is damaged.
Caution about the teaching pendant
⚫ Do not connect the teaching pendant during a profile. When disconnecting the teaching pendant, loosen and
remove the fixing screws and then pull out it, once the profile has finished.
⚫ For protecting the teaching pendant, from damage, do not drop it on the floor or shake it intensively.
Caution about the air supply
⚫ Ensure the air flow is dry and clean. Select a suitable air pressure according the application. Suggested air
pressure is no more than 100 psi (6.9bar).
⚫ During use, do not over bend or over rotate the air tubes.
