3.1.4 Testing the Interface Connections

TS250, TS350, TS550R and TS980 with TSR-VCABLE and TSR-DJETCABLE – 1 Dispense Head in Use
TS250, TS350 and TS550R with TSR-VCABLE – Multiple Dispense Heads in Use
The TSR2000 Series robot is capable of operating up to 4 dispensers/controllers during a program. An optional cable
is made available for this function. Please contact Techon if this specialty cable is required. Follow the instructions,
below, to test the other available outputs.

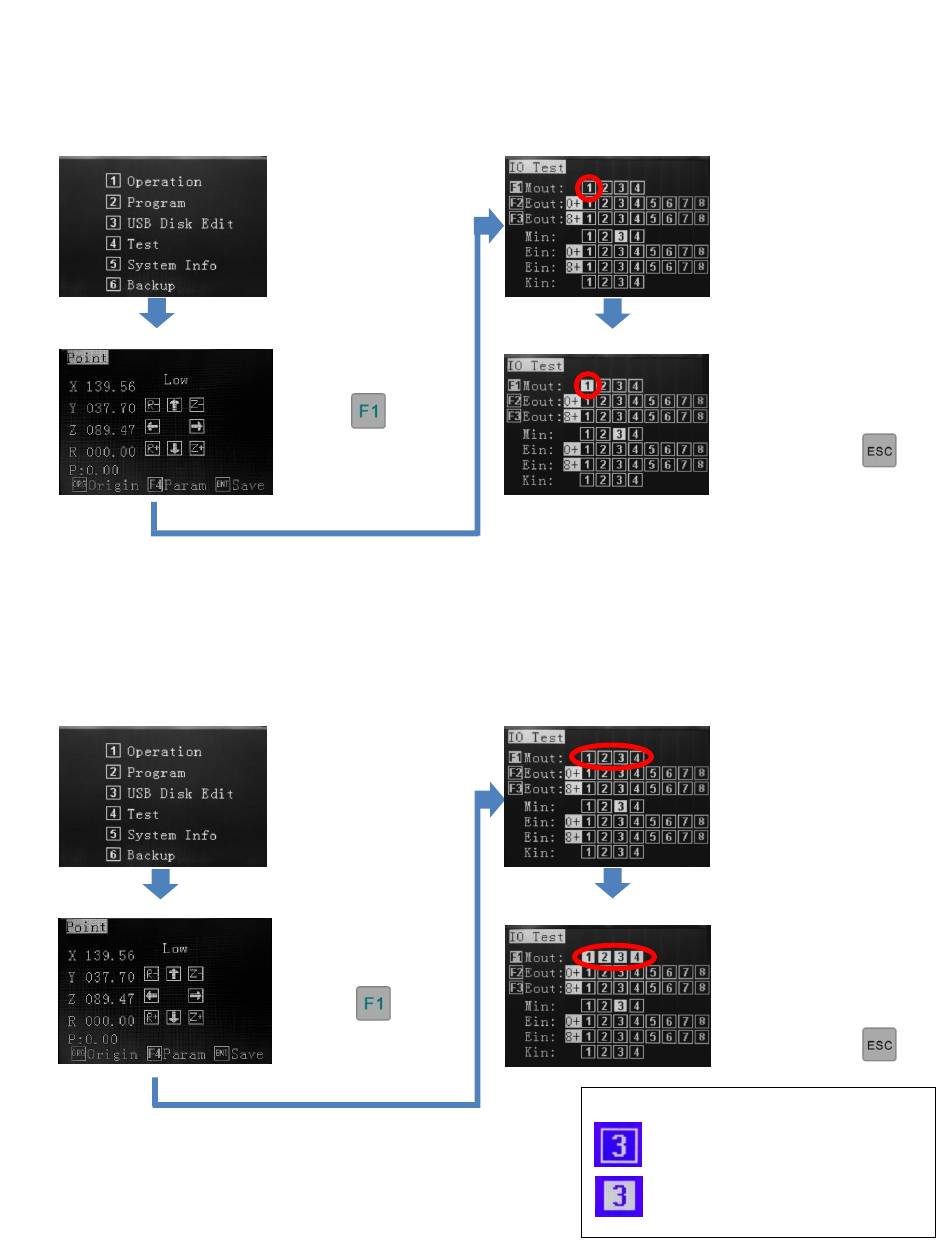

Press 4
Press
Press 4
Press
Legend:
Output not activated
12
Output activated
By pressing button 1, the
controller will activate. If
the system is complete and
under pressure, fluid will
exit out of the dispense
outlet.
Press 1 to turn off output.
To go back to main screen,
press
multiple times.
By pressing buttons 1
through 4, the dispensers/
controllers will activate. If
the systems are complete
and under pressure, fluid
will exit out of the
dispense outlets.
Press 1 through 4 to turn
off outputs.
To go back to main
screen, press
multiple times
