Installation
S19-125BF
S19-125FMBF

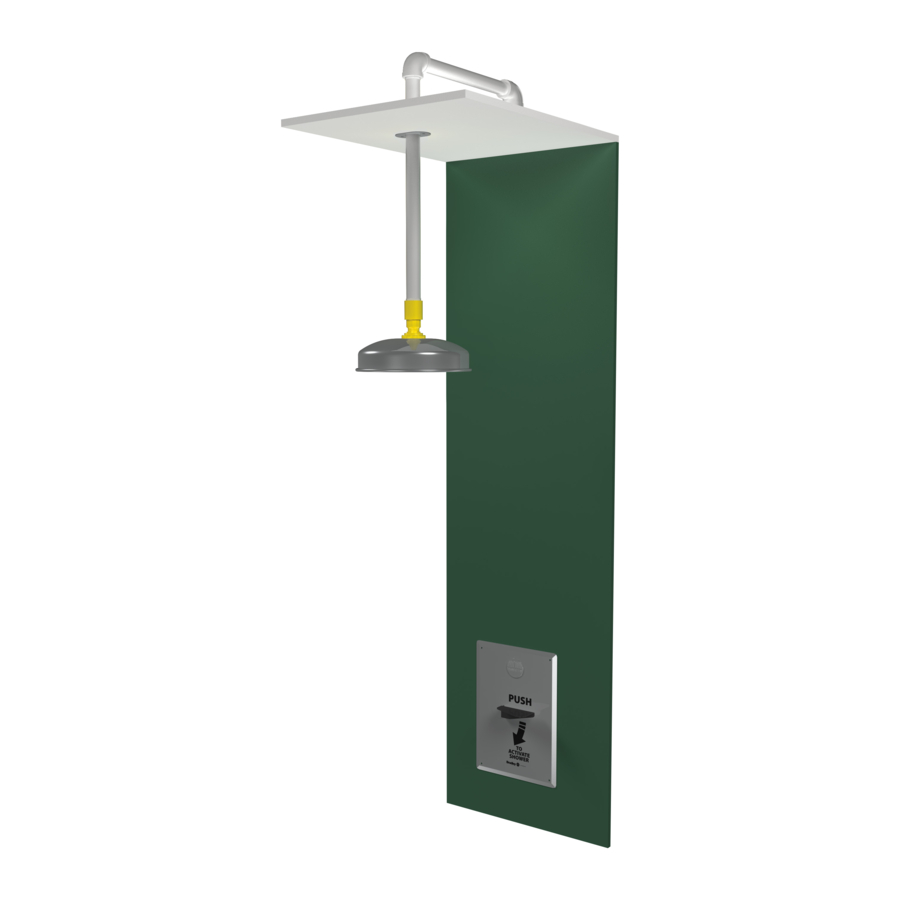

Barrier Free Recess-Mounted Drench
Shower
S19-125FMBF
Table of Contents
Pre-Installation Information . . . . . . . . . . . . . . . . . . . . . . . . . 2
Supplies Required . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Assembly of Components . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Service Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Cabinet Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Rough-Ins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-7
Menomonee Falls, WI 53052 USA
800 BRADLEY (800 272 3539)
+1 262 251 6000
bradleycorp.com
P.O. Box 309
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Bradley S19-125BF
Summary of Contents for Bradley S19-125BF
- Page 1 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–7 P.O. Box 309 215-1567 Rev. D; ECN 16-05-039 Menomonee Falls, WI 53052 USA © 2016 Bradley 800 BRADLEY (800 272 3539) Page 1 of 7 8/8/2016 +1 262 251 6000 bradleycorp.com...
- Page 2 If any parts are missing, do not begin installation until you obtain the missing parts. The ANSI/ISEA Z358.1 standard requires an uninterrupted supply of flushing fluid. Bradley plumbed emergency fixtures require a minimum of 30 PSI (0.21MPa) flowing pressure.
- Page 3 Service Prepacks Valve Mounting Hardware Prepack (includes Valve Mounting Bracket, U-Bolt, Nuts and Washers) S45-2236 Screw Prepack (includes six screws and Torx Power Bit) S45-2235 Valve/Handle Prepack (includes Handle and Valve Assembly) S45-2237 Bradley • 215-1567 Rev. D; ECN 16-05-039 8/8/2016...

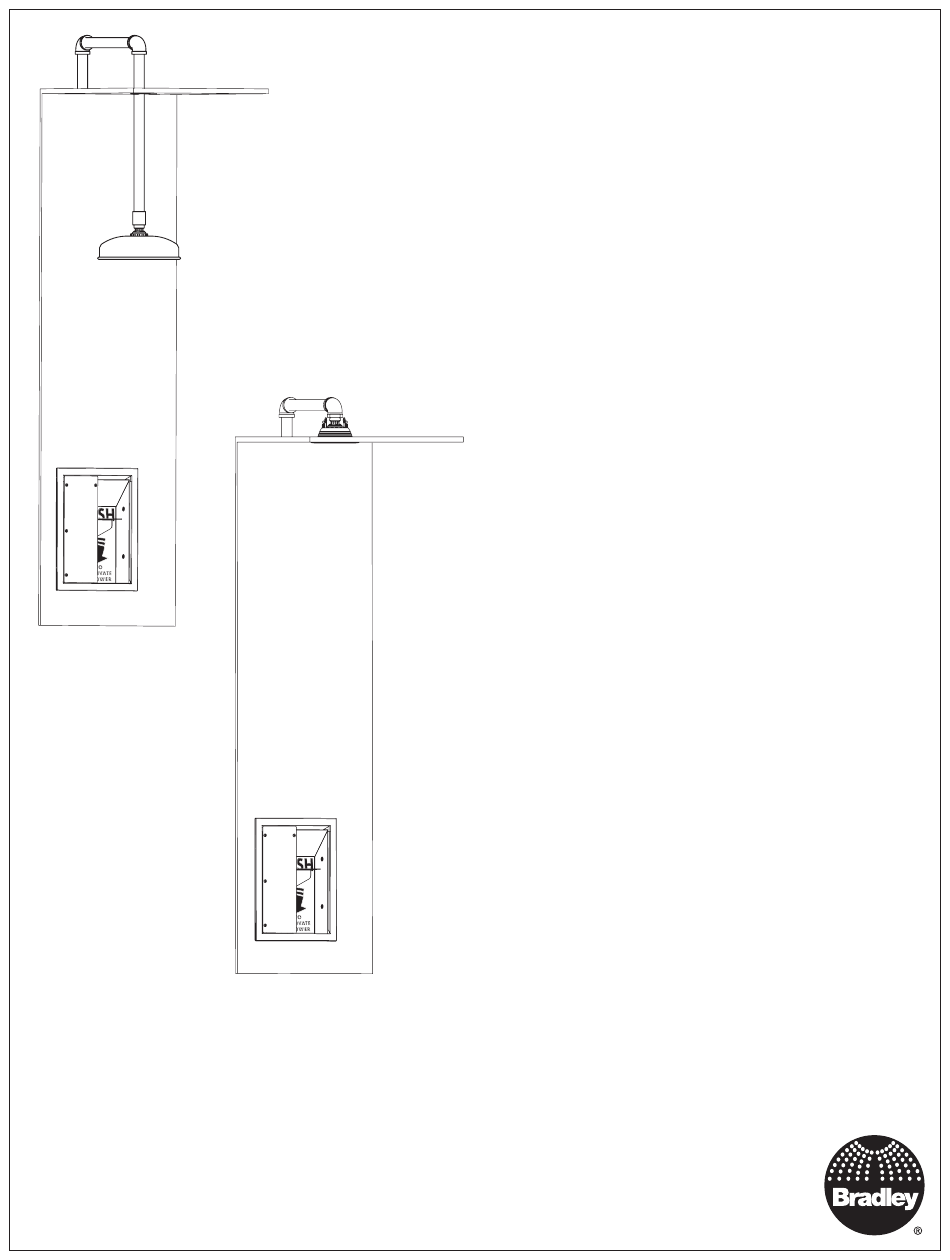

- Page 4 Side View Front View 3-3/4" (95mm) 1/4" (2mm) 15-13/16" (402mm) 14" 6-1/8" (357mm) (156mm) 8-5/16" (237mm) 3-3/4" (95mm) 3-9/16" 1/4" (2mm) (90mm) DIA. 2" 1-3/4" (51mm) (34mm) 10" 1-3/4" (254mm) (34mm) 12" (305mm) Bradley • 215-1567 Rev. D; ECN 16-05-039 8/8/2016...
- Page 5 30" (762mm) min. 30" (762mm) min. to 35" (889mm) max. to 35" (889mm) max. bottom of cabinet bottom of cabinet to floor to floor Wall opening 10-1/4" (260mm) wide 14-1/4" (362mm) high Bradley • 215-1567 Rev. D; ECN 16-05-039 8/8/2016...
- Page 6 Piping and Piping and adequate adequate supports by supports by installer installer S19-125BF S19-125FMBF NOTE: Use teflon tape only . NOTE: Use teflon tape only . Secure cabinet to wall, four places. Bradley • 215-1567 Rev. D; ECN 16-05-039 8/8/2016...
- Page 7 Connect Water Supply c o rp .c ra d le y w w w .b 11 4-0 90 To Showerhead Connect supply piping. 1" NPT Supply Line Exploded view of valve and handle assembly Bradley • 215-1567 Rev. D; ECN 16-05-039 8/8/2016...
