215-1263 Rev. F; ECN 17-05-039
© 2017 Bradley
Page 1 of 5
7/18/2017

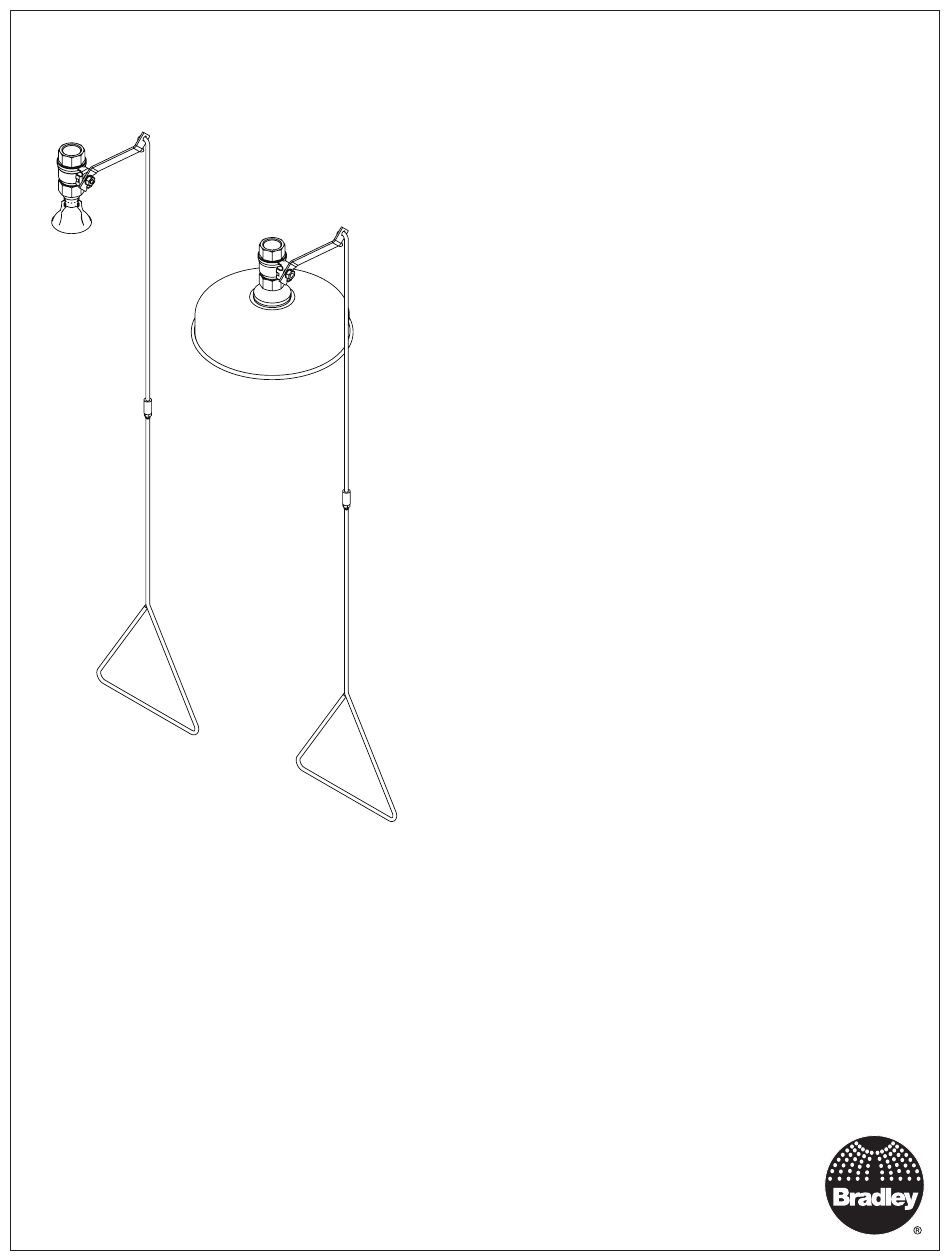

Installation

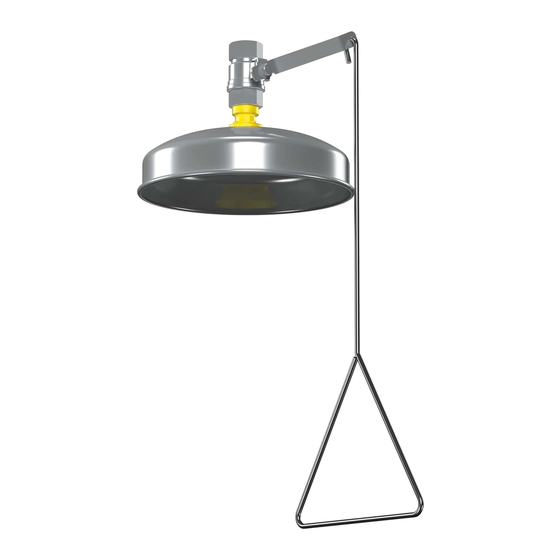

S19-130BF
Plastic Showerhead
S19-130ABF
Plastic Showerhead with Stainless
Steel Shroud
Drench Shower Vertical Supply
Table of Contents
Pre-Installation Information .............................................................2
Supplies Required ...........................................................................3
Assemble components ....................................................................3
Connect water supply ......................................................................3
Assembly of Components - S19-130BF ..........................................4
Parts List .........................................................................................4
Assembly of Components - S19-130ABF .......................................5
Parts List .........................................................................................5
Menomonee Falls, WI 53052 USA
800 BRADLEY (800 272 3539)
+1 262 251 6000
P.O. Box 309
bradleycorp.com
Advertisement
Table of Contents
Related Manuals for Bradley S19-130BF
Summary of Contents for Bradley S19-130BF
-
Page 1: Table Of Contents
Table of Contents Pre-Installation Information .............2 Supplies Required ................3 Assemble components ..............3 Connect water supply ..............3 Assembly of Components - S19-130BF ..........4 Parts List ..................4 Assembly of Components - S19-130ABF ........5 Parts List ..................5 P.O. Box 309 Menomonee Falls, WI 53052 USA 215-1263 Rev. -
Page 2: Pre-Installation Information
If any parts are missing, do not begin installation until you obtain the missing parts. The ANSI/ISEA Z358.1 standard requires an uninterrupted supply of flushing fluid. Bradley plumbed emergency fixtures require a minimum of 30 PSI (0.21MPa) flowing pressure. -
Page 3: Supplies Required
7'-0" (2134 mm) from the floor. Connect water supply 9" (229mm) NOTICE! Do not rely on Bradley’s Drench Shower S19-130ABF to support supply piping. 1. Connect water supply piping to 1" NPT inlet on unit (piping supplied by installer). Provide 9-3/8"... -
Page 4: Assembly Of Components - S19-130Bf
Pull Rod, 45" S27-278 Ball Valve with Jam Nut 161-026 Nut, 1/4"-20 1.11 110-214 Jam Nut (only) S24-188 Plastic Showerhead Assembly 153-489 Adapter 204-421 Emergency Inspection Tag 124-048 Washer 114-050 Safety Sign 128-202 Handle Bradley • 215-1263 Rev. F; ECN 17-05-039 7/18/2017... -
Page 5: Assembly Of Components - S19-130Abf
Jam Nut (only) 3.11 187-053 Showerhead Shell 153-489 Adapter 3.12 154-147 Ring 124-048 Washer S24-188 Plastic Showerhead Assembly 128-202 Handle 204-421 Emergency Tag S90-365D Pull Rod, 45" 114-050 Safety Sign 161-026 Nut, 1/4"-20 Bradley • 215-1263 Rev. F; ECN 17-05-039 7/18/2017...
