S19-125BF
215-1567 Rev. B; ECN 08-518
© 2008 Bradley Corporation
Page 1 of 7
9/29/08
Installation

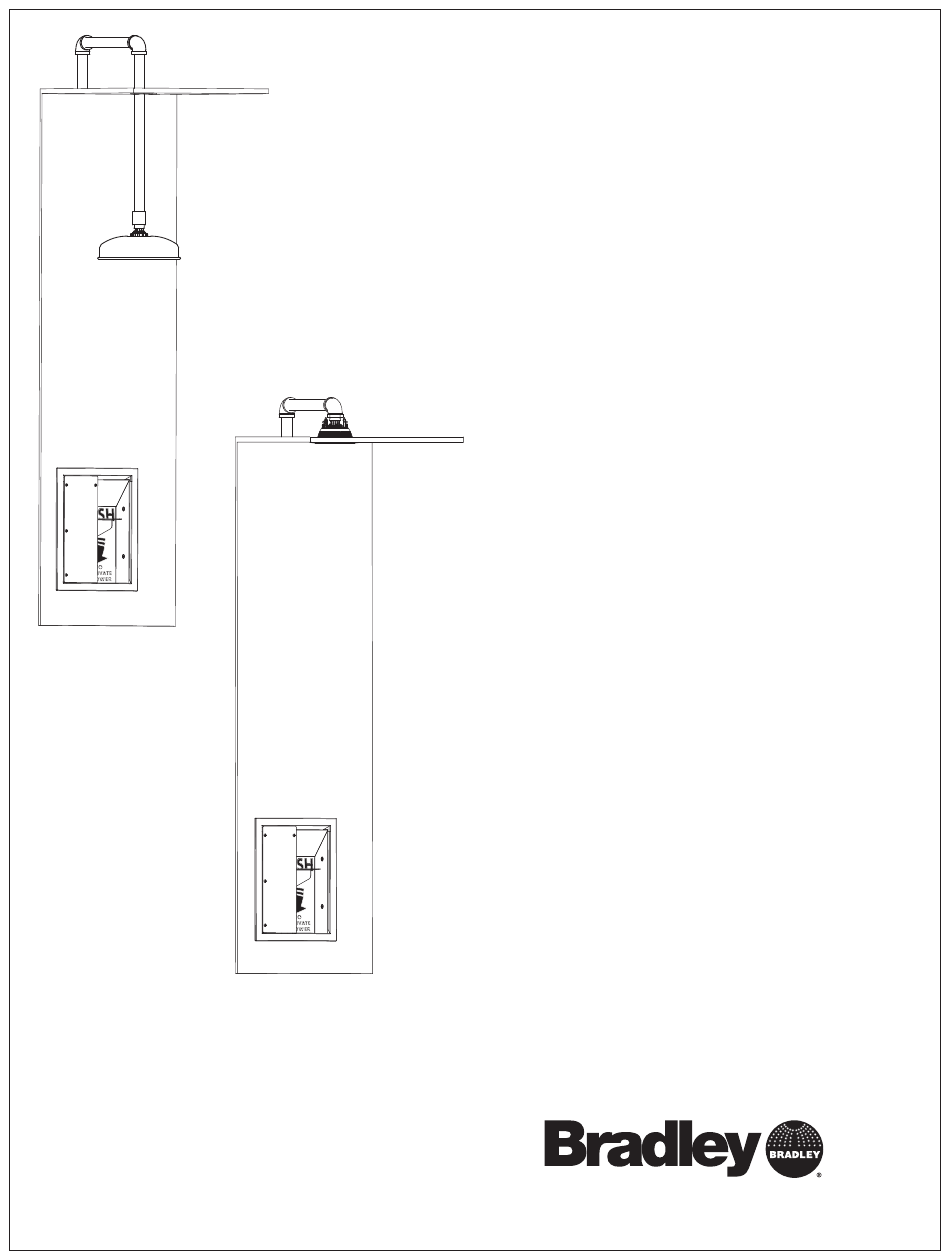

S19-125BF
S19-125FMBF

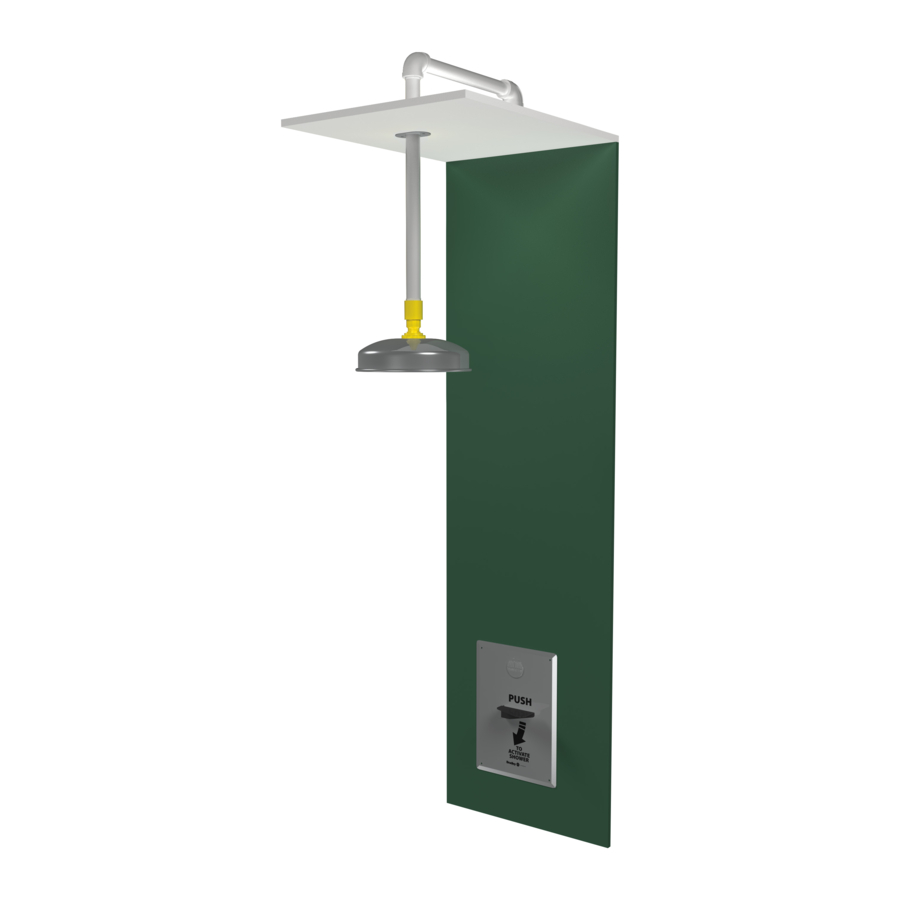

Barrier Free Recess-Mounted
Drench Shower
S19-125FMBF
Table of Contents
Pre-Installation Information . . . . . . . . . . . . . . 2
Assembly of Components . . . . . . . . . . . . . . . 3
Service Parts . . . . . . . . . . . . . . . . . . . . . . . . . 3
Cabinet Dimensions . . . . . . . . . . . . . . . . . . . . 4
Rough-Ins. . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Installation . . . . . . . . . . . . . . . . . . . . . . . . . 6–7
P.O. Box 309, Menomonee Falls, WI USA 53052-0309
PHONE 800.BRADLEY (800.272.3539) FAX 262.251.5817
bradleycorp.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Bradley S19-125BF
Summary of Contents for Bradley S19-125BF
- Page 1 Installation ......6–7 215-1567 Rev. B; ECN 08-518 P.O. Box 309, Menomonee Falls, WI USA 53052-0309 © 2008 Bradley Corporation PHONE 800.BRADLEY (800.272.3539) FAX 262.251.5817 bradleycorp.com Page 1 of 7 9/29/08...
-
Page 2: Supplies Required
• Adequate supply pipe supports • Hardware to mount escutcheon to ceiling • Minimum 4” (102 mm) drain to accommodate 30 gallons per minute discharge for drench shower waste • Sign-mounting hardware 9/29/08 Bradley Corporation • 215-1567 Rev. B; ECN 08-518... - Page 3 Valve Mounting Hardware Prepack (includes Valve Mounting Bracket, U-Bolt, Nuts and Washers) S45-2236 Screw Prepack (includes six screws and Torx Power Bit) S45-2235 Valve/Handle Prepack (includes Handle and Valve Assembly) S45-2237 Bradley Corporation • 215-1567 Rev. B; ECN 08-518 9/29/08...
-
Page 4: Side View
Front View 3-3/4" (95mm) 1/4" (2mm) 15-13/16" (402mm) 14" 6-1/8" (357mm) (156mm) 8-5/16" (237mm) 3-3/4" (95mm) 3-9/16" 1/4" (2mm) (90mm) DIA. 2" 1-3/4" (51mm) (34mm) 10" 1-3/4" (254mm) (34mm) 12" (305mm) 9/29/08 Bradley Corporation • 215-1567 Rev. B; ECN 08-518... - Page 5 30" (762mm) min. 30" (762mm) min. to 35" (889mm) max. to 35" (889mm) max. bottom of cabinet bottom of cabinet to floor to floor Wall opening 10-1/4" (260mm) wide 14-1/4" (362mm) high Bradley Corporation • 215-1567 Rev. B; ECN 08-518 9/29/08...
-
Page 6: Installation
Installation Piping and Piping and adequate adequate supports by supports by installer installer S19-125BF S19-125FMBF NOTE: Use teflon tape only. NOTE: Use teflon tape only. Secure cabinet to wall, four places. 9/29/08 Bradley Corporation • 215-1567 Rev. B; ECN 08-518... -
Page 7: Connect Water Supply
.c ra d le y w w w .b 11 4-0 90 To Showerhead Connect supply piping. 1" NPT Supply Line Exploded view of valve and handle assembly Bradley Corporation • 215-1567 Rev. B; ECN 08-518 9/29/08...
