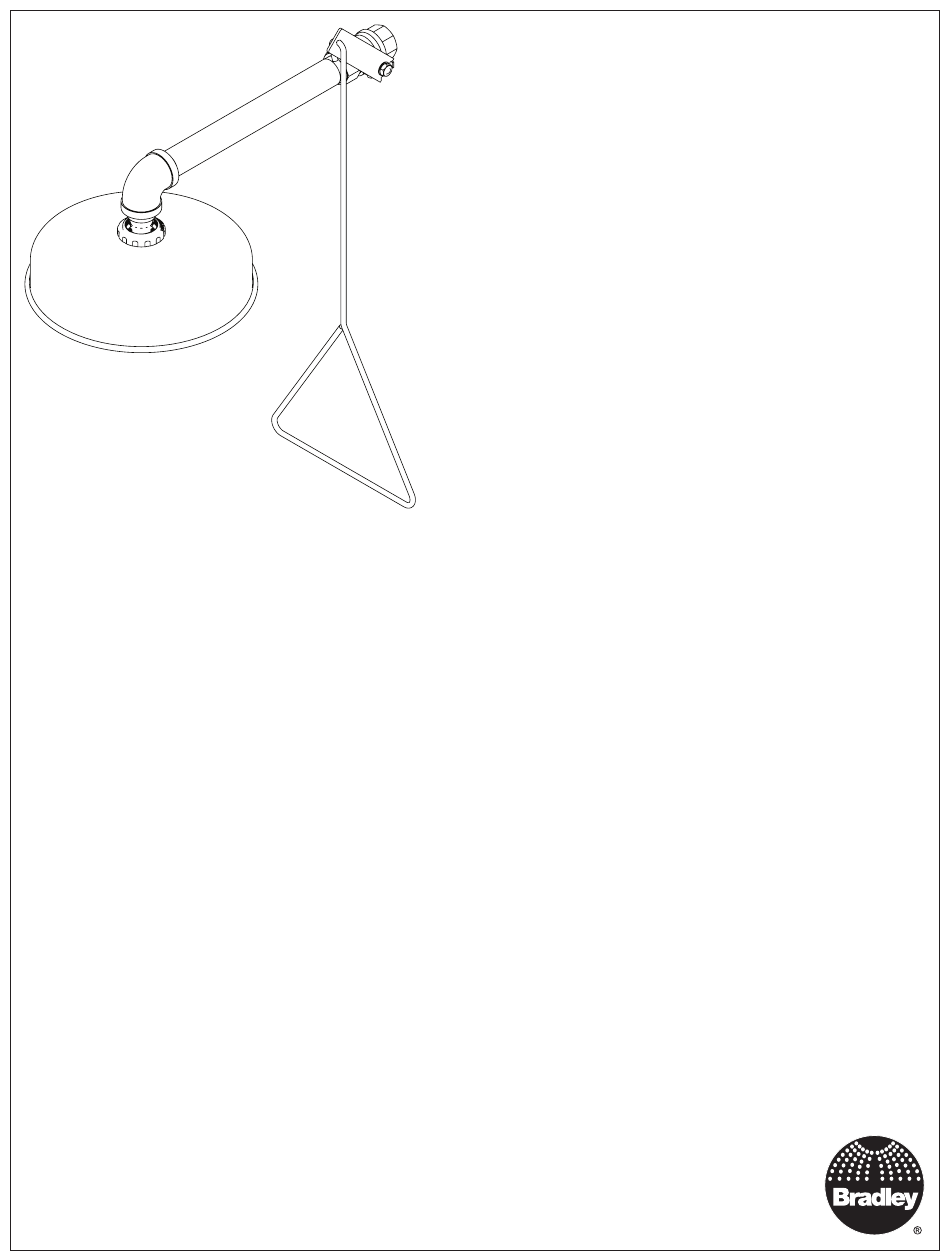

Bradley S19-120T Installation

Drench shower - horizontal supply

215-148CP Rev. N; ECN 17-05-039

Page 1 of 4 7/18/2017

Installation

S19-120T

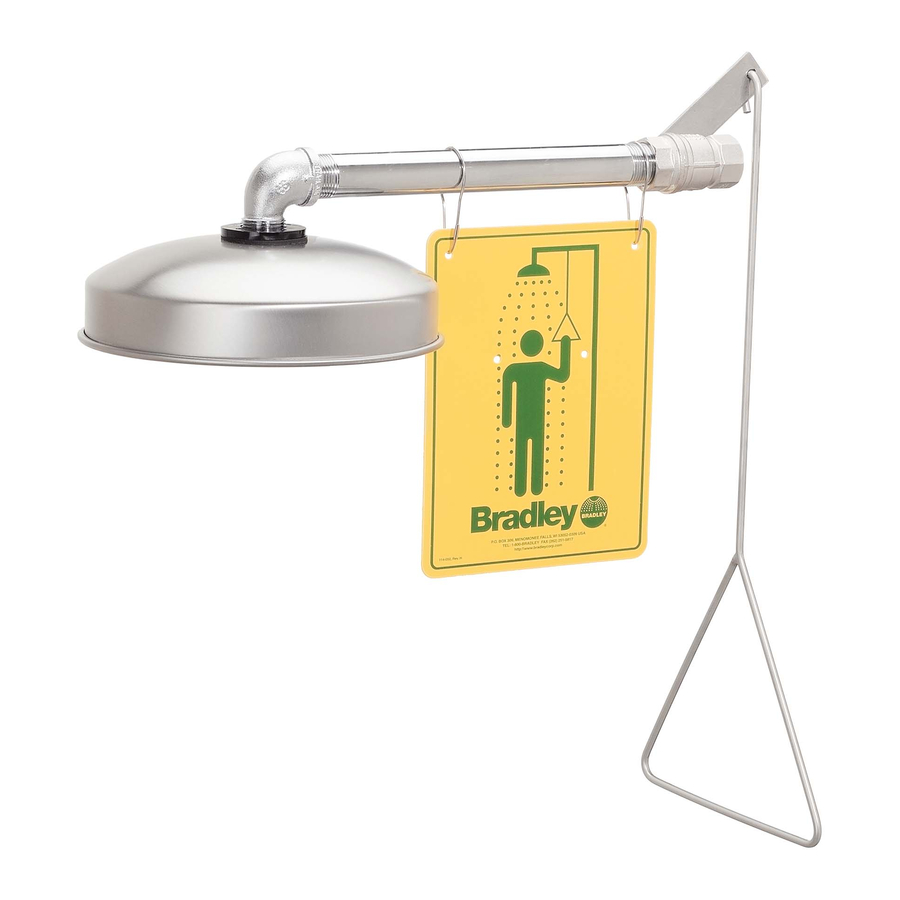

Drench Shower - Horizontal Supply

Table of Contents

Pre-Installation Information .............................................................2

Supplies Required ...........................................................................3

Assemble Components ....................................................................3

Connect Water Supply ......................................................................3

Assembly Of Components ...............................................................4

Parts List .........................................................................................4

Menomonee Falls, WI 53052 USA

800 BRADLEY (800 272 3539)

+1 262 251 6000

P.O. Box 309

bradleycorp.com

Table of Contents

Need help?

Do you have a question about the S19-120T and is the answer not in the manual?

Page 1 Connect water supply ..............3 Assembly of Components ...............4 Parts List ..................4 P.O. Box 309 215-148CP Rev. N; ECN 17-05-039 Menomonee Falls, WI 53052 USA © 2017 Bradley 800 BRADLEY (800 272 3539) +1 262 251 6000 Page 1 of 4 7/18/2017 bradleycorp.com...
Page 2 Main water supply to the eyewash should be “ON” at all times. Provisions shall be made to prevent unauthorized shutoff. The ANSI Z358.1 standard requires an uninterrupted supply of flushing fluid. Bradley plumbed emergency fixtures require a minimum of 30 PSI (0.21 MPa) flowing pressure. Flushing fluid should be tepid per ANSI Z358.1.
Page 3 3. Bottom edge of showerhead should be 7'-0" (2134 mm) from the floor. Connect water supply NOTICE! Do not rely on Bradley’s Drench Shower to support supply piping. 1. Connect water supply piping to 1" NPT inlet on unit (piping supplied by installer).
Page 4 124-048 Washer, Friction 6.12 154-147 Ring 128-201 Handle S24-188 Plastic Showerhead Assembly 128-156A Pull Rod, 24" 114-050 Safety Sign 151-001 Curtain Hook 204-421 Emergency Inspection Tag 113-594 Pipe 1" NPT x 12" Bradley • 215-148CP Rev. N; ECN 17-05-039 7/18/2017...
