3.15.5 RZ600 IEEE 802.15.4 Wireless Transceiver Socket J12

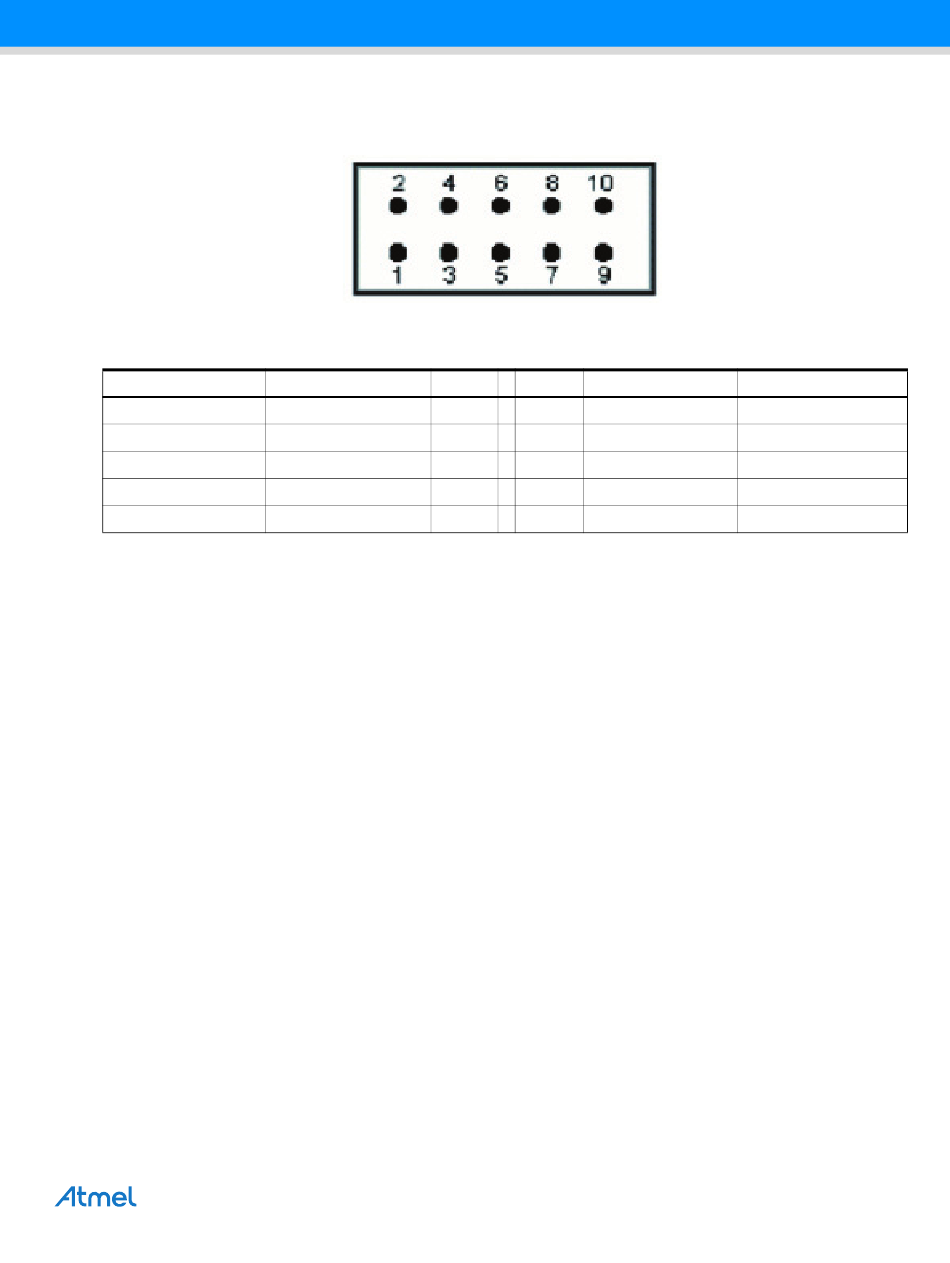

Figure 3-31. Socket J12
Table 3-15. Socket Pinout
Function
Reset
Interrupt Request
SPI Chip Select
SPI MISO
Power Supply
Signal Name Pin
/RST 1
IRQ1 3
/CS 5
MISO 7
GND 9
Pin Signal Name
2 IRQ0
4 SLP_TR
6 MOSI
8 SCLK
10 VCC
SAM4C32-EK [USER GUIDE]
Atmel-11253A-ATARM-SAM4C32-EK-UserGuide_17-Sep-14
Function
Interrupt Request
SLP_TR
SPI MOSI
SPI CLK
VCC
