Top View; Front View - ADC FPL Series User Manual

PARAMETER
48/72/96 Position Panel (5RU)
Dimensions (H x W x D)
Capacity
144 Position High Density Panel (5RU)
Dimensions (H x W x D)
Depth with rear door splice deck open
Capacity
Figure 8 shows dimensions for the 12/24 position 1RU panel.
11.48 IN.
(29.2 CM)
4.86 IN.
(12.3 CM)
1.72 IN.
(4.4 CM)
1.25 IN.
(3.2 CM)
Table 1. FPL Modules Specifications
SPECIFICATION
8.7.0 inch x 21.9 in. x 12.0 in.
(22.1 cm x 56.7 cm x 30.5 cm)
48, 72, or 96 termination positions
©
LX.5 and LC connectors double the termination capacity
8.7.0 inch x 21.9 in. x 15.0 in.
(22.1 cm x 56.7 cm x 38.1 cm)
23.0 inch (58.42 cm)
144 termination positions

TOP VIEW

17.0 IN.
(43.2 CM)
20.24 IN.
(51.4 CM)
22.32 IN. (56.7 CM)
23-IN. RACK MOUNT (58.4 CM)
18.32 IN. (46.5 CM)
19-IN. RACK MOUNT (48.3 CM)

FRONT VIEW

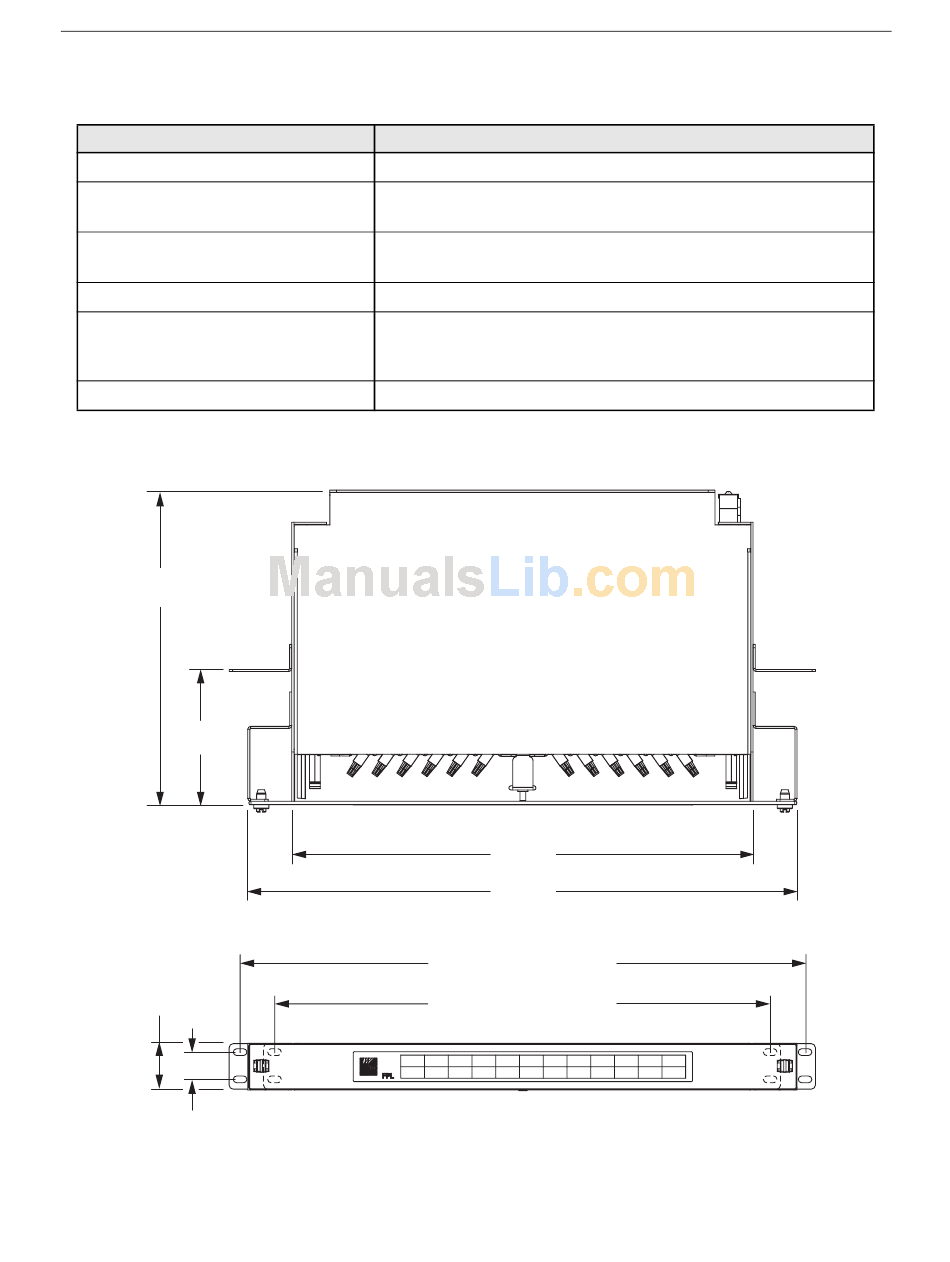

Figure 8. 12/24 Position 1RU Panel
ADCP-90-328 • Issue 2 • November 2005
20959-A
© 2005, ADC Telecommunications, Inc.
Page 9
