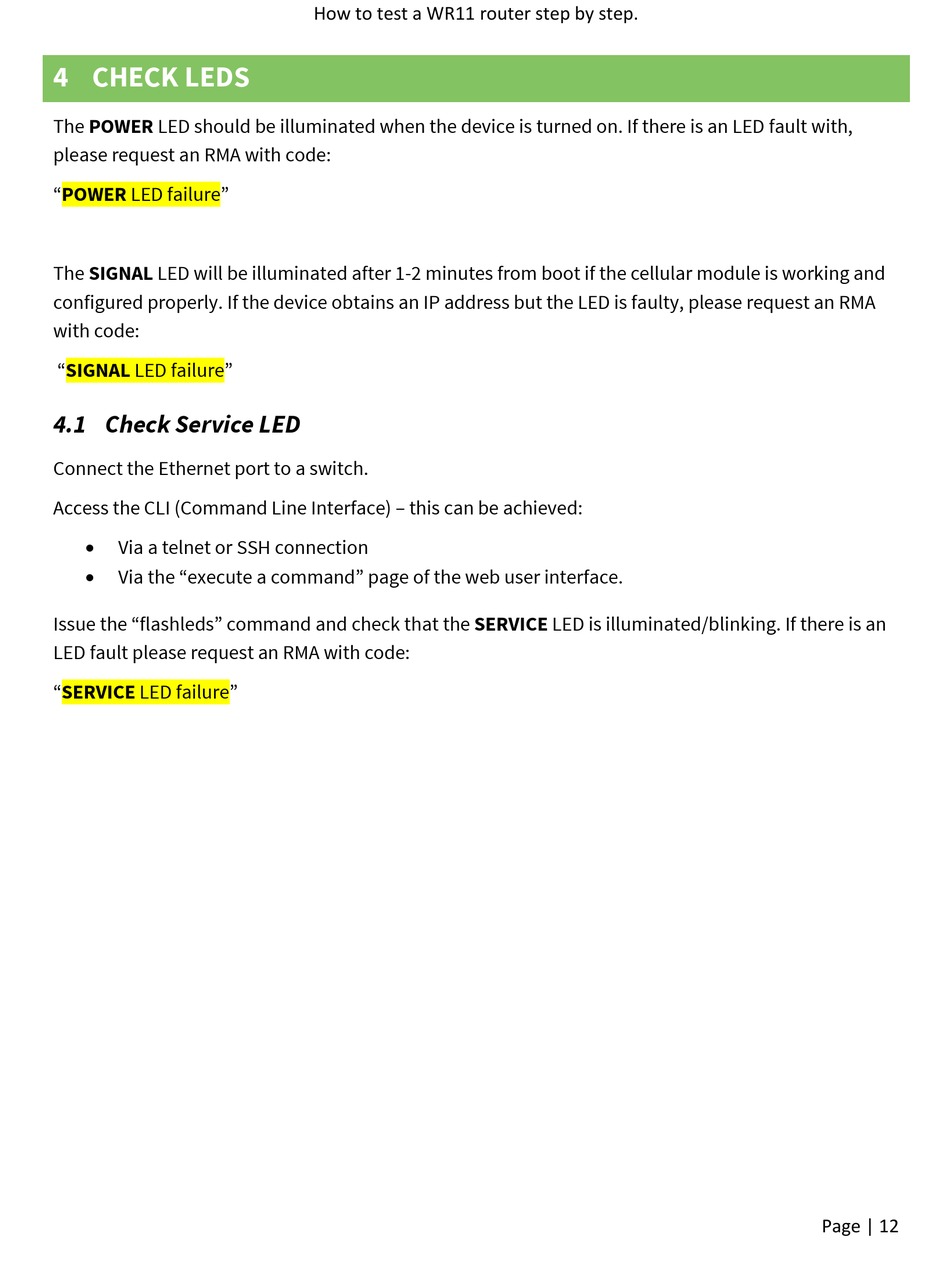

4 CHECK LEDS

The POWER LED should be illuminated when the device is turned on. If there is an LED fault with,
please request an RMA with code:
"POWER LED failure"
The SIGNAL LED will be illuminated after 1-2 minutes from boot if the cellular module is working and
configured properly. If the device obtains an IP address but the LED is faulty, please request an RMA
with code:
"SIGNAL LED failure"

4.1 Check Service LED

Connect the Ethernet port to a switch.
Access the CLI (Command Line Interface) – this can be achieved:

Via a telnet or SSH connection
 Via the "execute a command" page of the web user interface.
Issue the "flashleds" command and check that the SERVICE LED is illuminated/blinking. If there is an
LED fault please request an RMA with code:
"SERVICE LED failure"
